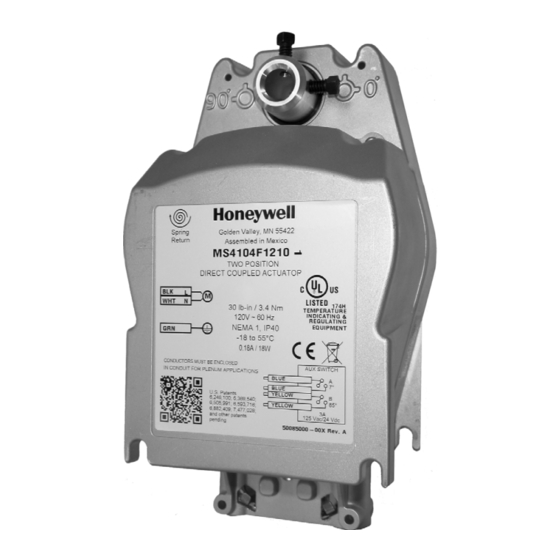

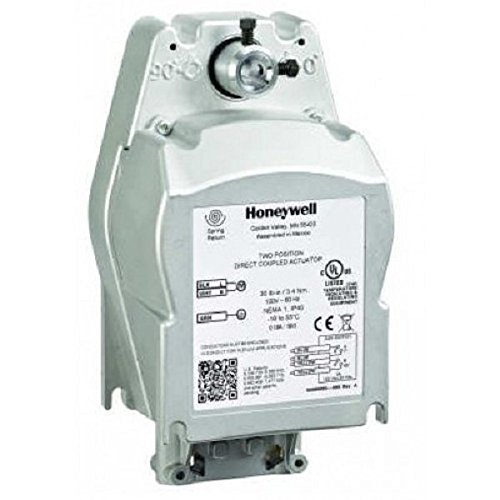

Honeywell MS4104F1010 Fire Smoke Damper Actuator lb-in Spring Return - 120V 30

Manufacturer

Part Number

MS4104F1010
Black Friday Price

$292.32

In Stock (10)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Honeywell MS4104F1010 is a fast-acting, two-position spring return direct coupled actuator designed specifically for fire and smoke damper applications with on/off control. This 120-volt actuator delivers 30 lb-in torque and features an integral junction box for simplified wiring.

Key Features:

  • Meets UL-555 and UL-555S 350°F safety requirements for combined fire and smoke applications with fast-acting 15-20 second damper closure
  • Accepts an on/off signal from a single-pole, single-throw (SPST) controller
  • Reversible mounting allows actuator to be used for either clockwise or counterclockwise spring rotation
  • 95-degree stroke with 1/2-inch round shaft and NEMA 1 enclosure rating
  • Power consumption: 0.18 amp running (18W), 0.11 amp holding (9W) at 60 Hz
  • This model features zero internal auxiliary switches
  • No audible noise during holding (20 dBA at 1m)

The MS4104F1010 serves as a direct replacement for several legacy models including H2000-8A, H2000A-3, H2000A-6, ML4115A1017, H2000A-8, H2000B-3, H2000B-6, H2000B-8, and ML4202F1000. Device weight is 5 lb (2.3 kg). Ideal for commercial and industrial HVAC systems requiring reliable fire and smoke damper control.
