The Johnson Controls VG7241PT+7150G is a factory-assembled combination of the VG7241PT Series VG7000 Brass Trim Globe Valve and the VA-7150-1001 (Model 7150G) Non-Spring-Return Electric Actuator. Designed for precise flow control in commercial and industrial HVAC systems, this ready-to-install assembly delivers reliable on/off and floating control of hot water, chilled water, and steam.

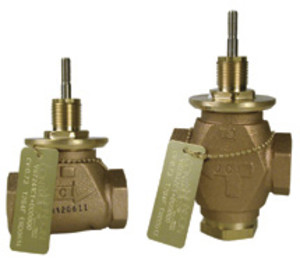

The VG7241PT valve features a cast bronze body with a stainless steel stem, brass plug, elastomer disc seat, and EPR rubber packing for long service life. The 2-way, normally open configuration uses a 1-1/4 in. female NPT connection with a flow coefficient (Cv) of 18.5 and delivers an equal percentage flow characteristic for superior modulating control. Rangeability is 25:1 per EN 60534-2-4, and the brass trim achieves an ANSI Class IV leakage rating of 0.01% of maximum flow per ANSI/FCI 70-2.
The integrated VA-7150 electric actuator operates on 24 VAC, 50/60 Hz and provides 90 in-lb of closeoff force for tight shutoff. It is a non-spring-return (NSR) design with direct-coupled, no-linkage mounting. A magnetic clutch protects the actuator gearing and ensures tight closeoff. The valve body carries a static pressure rating of ANSI Class 250.
Key Features:
- 1-1/4 in. female NPT, 2-way, normally open configuration
- Flow coefficient (Cv): 18.5 | Equal percentage flow characteristic
- Cast bronze body with stainless steel stem and brass trim
- ANSI Class IV leakage rating (0.01% of maximum flow)
- 24 VAC, 50/60 Hz non-spring-return electric actuator
- 90 in-lb actuator force for positive closeoff
- Direct-coupled actuator — no linkage required
- Magnetic clutch protects gearing and ensures tight closeoff
- ANSI Class 250 static pressure rating
- Compatible with hot water, chilled water, <50% glycol solutions, and steam
- Media temperature range: Water 35°F to 248°F (2°C to 120°C); Steam max 338°F (170°C), 35 psig
- Maximum recommended pressure drop (water): 35 psid for 1/2 in. to 1-1/4 in. valves
- Factory assembled for quick installation
The VG7241PT+7150G is ideal for HVAC terminal unit control applications including fan coil units, air handling units, and unit ventilators. The VG7000 series is compatible with a wide range of Johnson Controls electric and pneumatic actuators, and the valve body meets ASME B16.15 Class 250 requirements.
