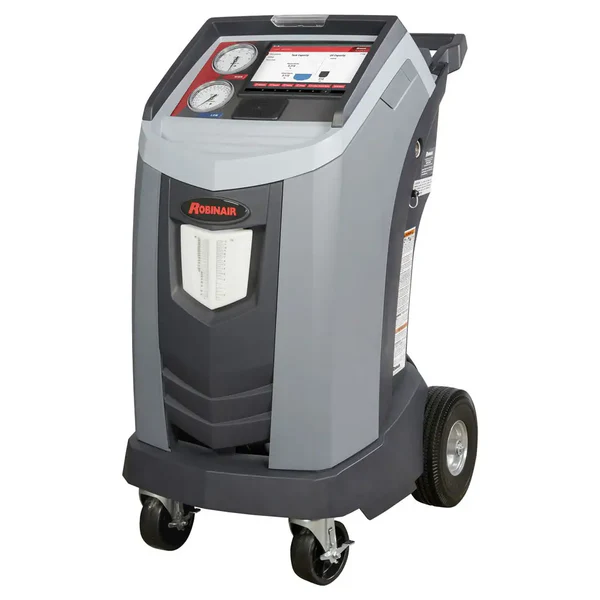

Robinair ROBAC1234-9 Connected R-1234yf A/C Recovery Recycling Recharge Machine

The Robinair AC1234-9 Connected R-1234YF ACS Machine recovers, recycles, evacuates, leak-tests and recharges R-1234yf with improved 98.5% efficiency – unmatched by any competitor. This advanced automotive air conditioning service machine is designed for professional shops servicing modern vehicles equipped with R-1234yf refrigerant systems, including both standard and high-voltage A/C systems.

Advanced Touchscreen Interface:

The new design features a large 10" capacitive touch LCD display, and automated features including automatic internal refrigerant refill, oil drain and refrigerant identification. The intuitive Android-based operating system makes navigation easy and streamlines the entire service process.

Smart Connectivity Features:

• Full wireless capabilities for Wi-Fi or Bluetooth® communication, which enables automatic machine software updates and optional refrigerant capacities database downloads
• Use Mopria Print Service wireless printing to print A/C service summary reports for customers or insurance companies
• The Android operating system can also export service reports to store or share digitally
• Compatible with Robinair Bluetooth accessories for temperature monitoring and enhanced diagnostics

Technical Specifications:

• Recovery Performance: >95% at 70 to 75° F (21 to 24°C) < 30 minutes
• Charge Performance: +/- 0.5 oz at 70° to 75° F (+/- 15g at 21° to 24° C)
• Vacuum Pump: 1.5 cfm Dual Stage, 29.9 InHg
• Internal cylinder: 30 lb DOT (13.6 kg); 21 lb (9.5 kg) capacity
• Compressor: 3/8 hp, pressure-protected, oiled, hermetically sealed
• Voltage: 125 VAC, 60 Hz
• Hose Length: 9 ft (2.75 m)

Automated Service Functions:

• Automatic manifold valves eliminate manual operation
• Automatic oil drain with measurement display for accurate replacement
• Automatic internal refrigerant refill maintains preset levels
• Built-in refrigerant identification verifies refrigerant purity
• Fully automatic service mode handles complete recover-vacuum-recharge cycle

Certifications: SAE J2843, J2927, UL 1963. Multi-language support includes English, French, and Spanish. This machine represents the latest technology in automotive A/C service equipment, combining professional-grade performance with user-friendly operation.
