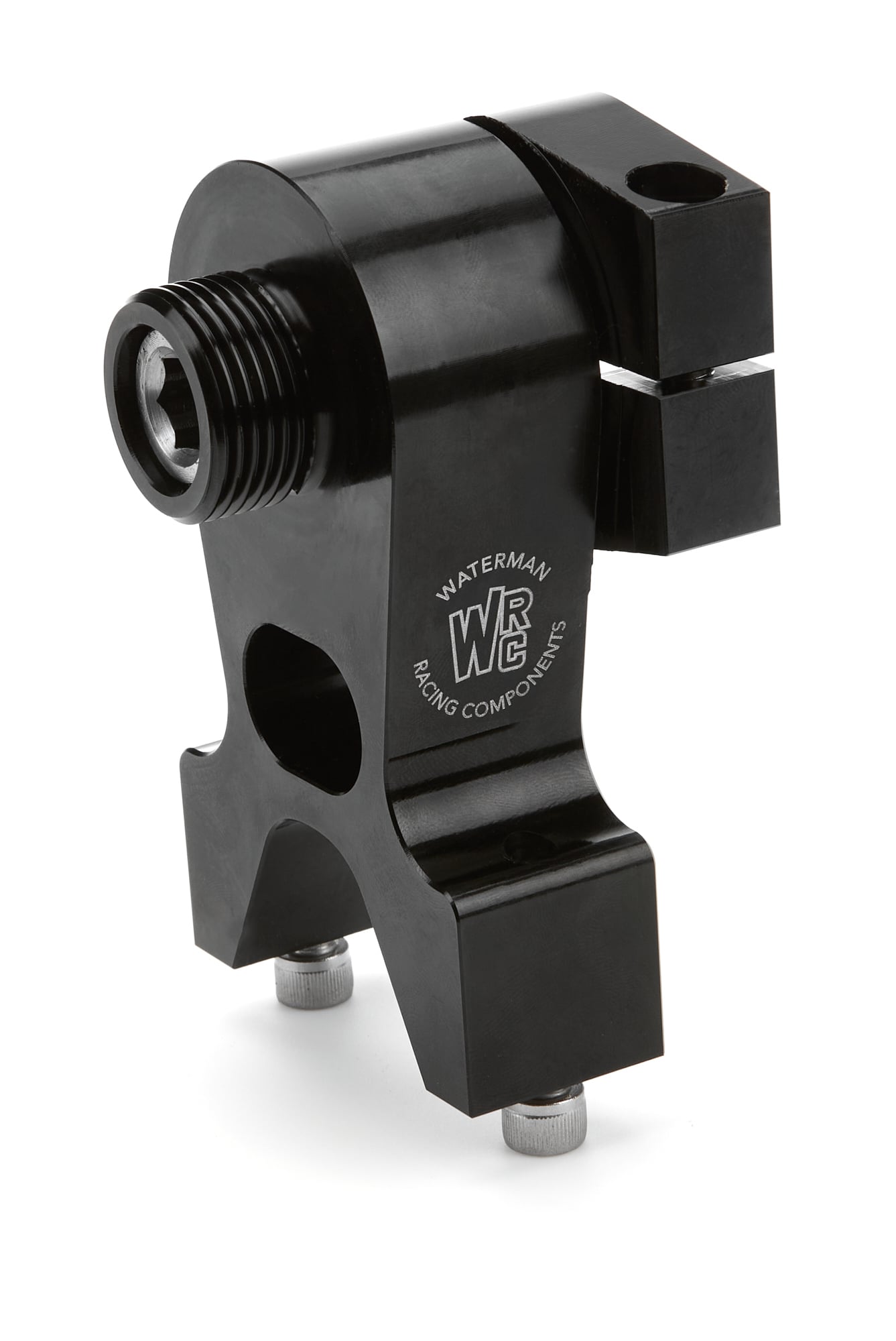

Waterman Racing Components 49321 Chassis Mount Cable Drive Bracket

The Waterman Racing Components 49321 is a precision-machined chassis mount bracket designed for cable-driven mechanical fuel pump installations in high-performance racing applications. This versatile mounting solution allows racers to flat panel mount or use a bar clamp setup to securely position Waterman fuel pumps using cable drive systems.

Key Features:

• Constructed from billet aluminum with black anodized finish for corrosion protection and wear resistance
• Features high-speed sealed ball bearing for smooth, reliable operation
• Accepts 1.450" diameter pump register with .700" depth
• 3/8" hex female drive shaft engages directly with Waterman fuel pump hex drive
• Two 1/4"-20 mounting bolt holes on 1.950" bolt spread for secure installation
• Fuel pump mounts 2.750" from flat panel mount to center of driveshaft
• Fuel pump mounts 1.800" from inside of bar mount to center of driveshaft
• Secured with 1/4" socket head pinch bolt

This bracket is sold without cap, allowing racers to choose the appropriate bar clamp cap separately (part numbers 49332-49337) for their specific chassis tubing diameter, or mount directly to a flat panel. The bracket accepts 3/8" hex drive cables on the opposite side from the pump, creating a complete cable-driven fuel delivery system. Designed specifically for Waterman fuel pumps; other brands require appropriate adapter flanges for compatibility.
