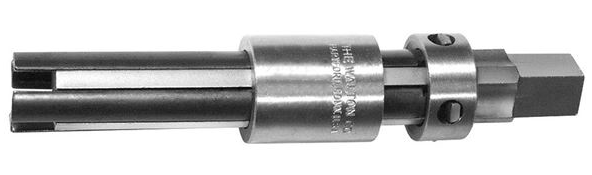

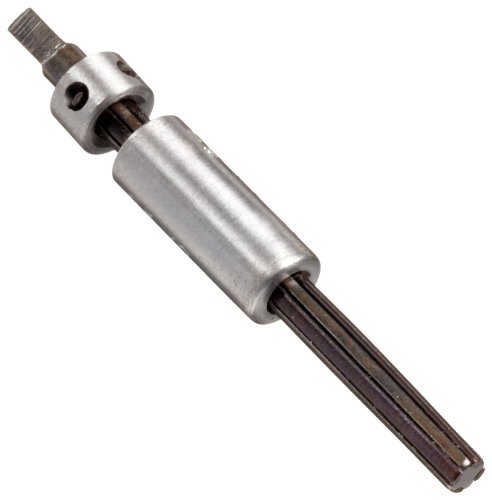

Walton Tools 10104 #10 (5MM) 4-Flute Tap Extractor

The Walton Tools 10104 is a specialized 4-flute tap extractor designed to remove broken taps quickly without injury to the thread. The hardened steel fingers fit in the flutes of a broken tap to back it out simply and safely, using an effective method that has been in use since 1908.

Key Specifications:

• Size: #10 (5mm)
• Number of Flutes: 4
• Shank Type: Square Taper
• Material: Hardened Steel
• Fits both NC and NF taps

How It Works:

First, thoroughly remove all chips from the broken tap, then insert the extractor fingers into the flute of the broken tap, pushing them gently but firmly into position. Push the holder down until it touches the broken tap and slide the sleeve down until it touches the work. Apply a tap wrench to the square end of the holder and twist forward and backward a few times to loosen, then back out the broken tap.

Walton tap extractors remove broken taps without the need for drilling, lasers and avoid damaged threads or scrapped parts. Made in the U.S.A.
