Genesis Offroad 223-PHG3 Universal Gen 3 Dual Battery Power Hub

Manufacturer

Part Number

223-PHG3
Black Friday Price

$599.00

2 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

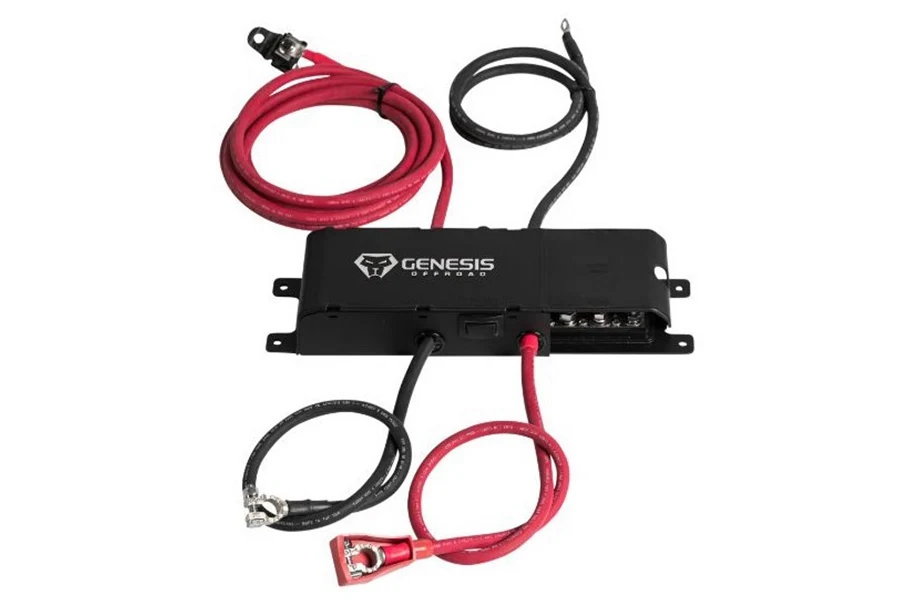

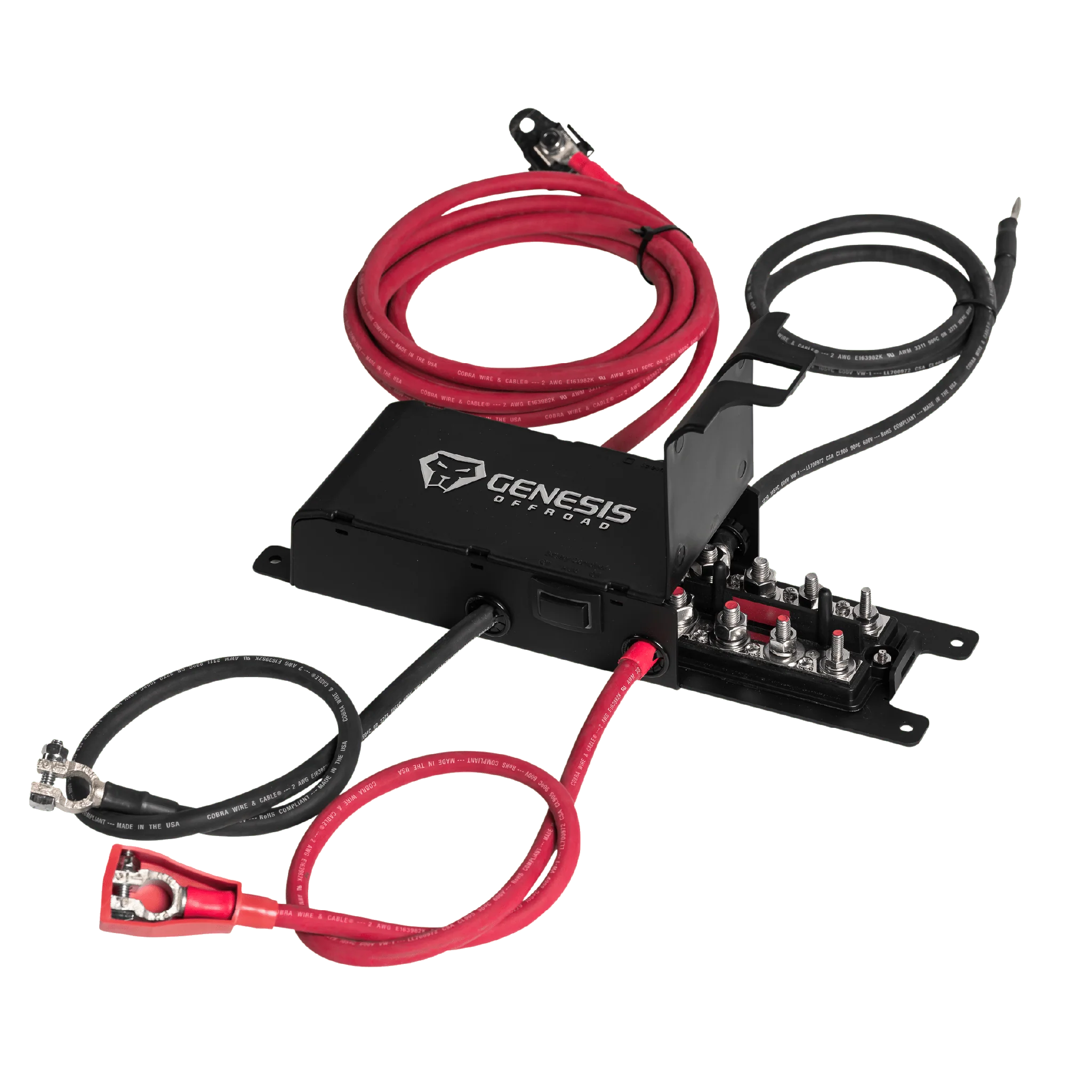

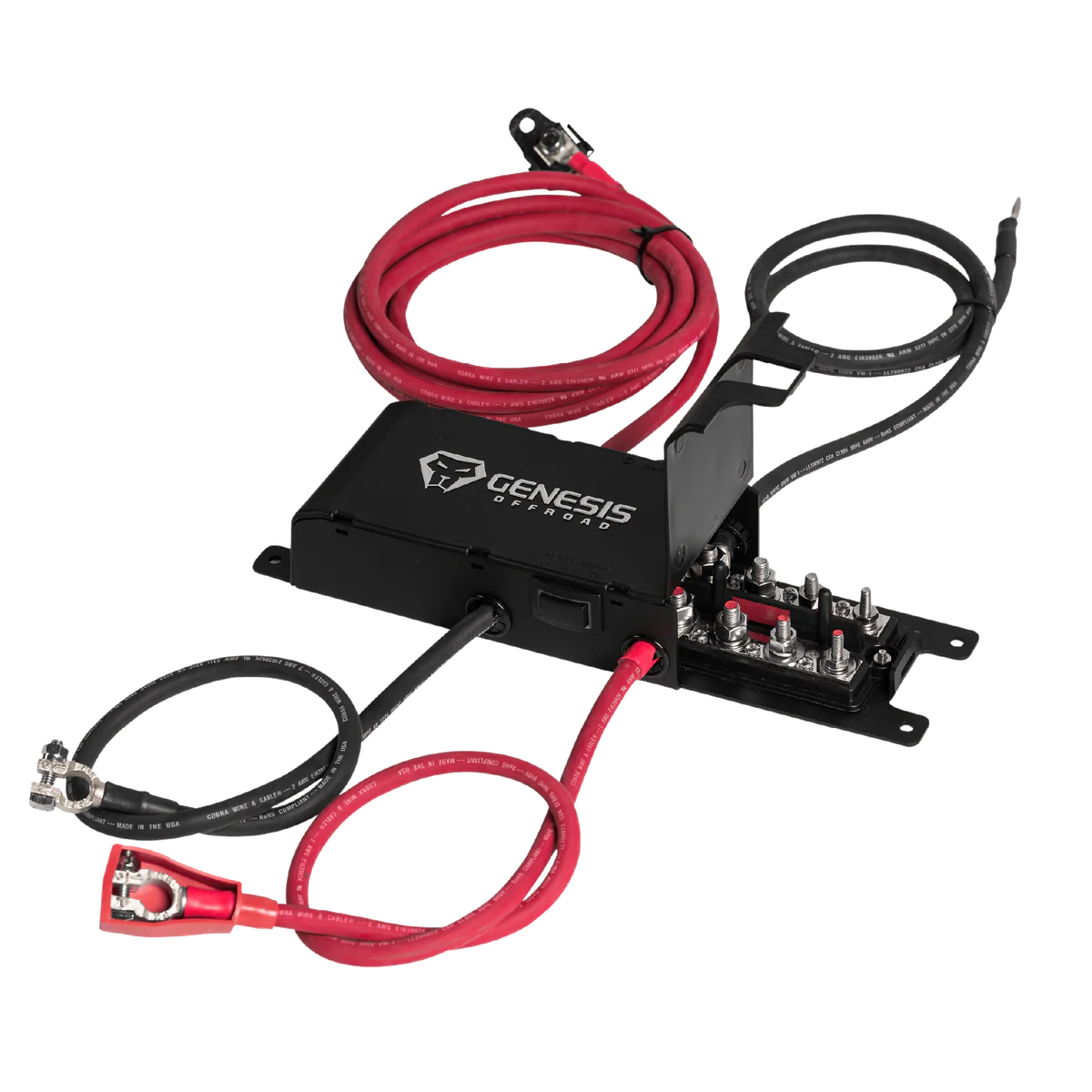

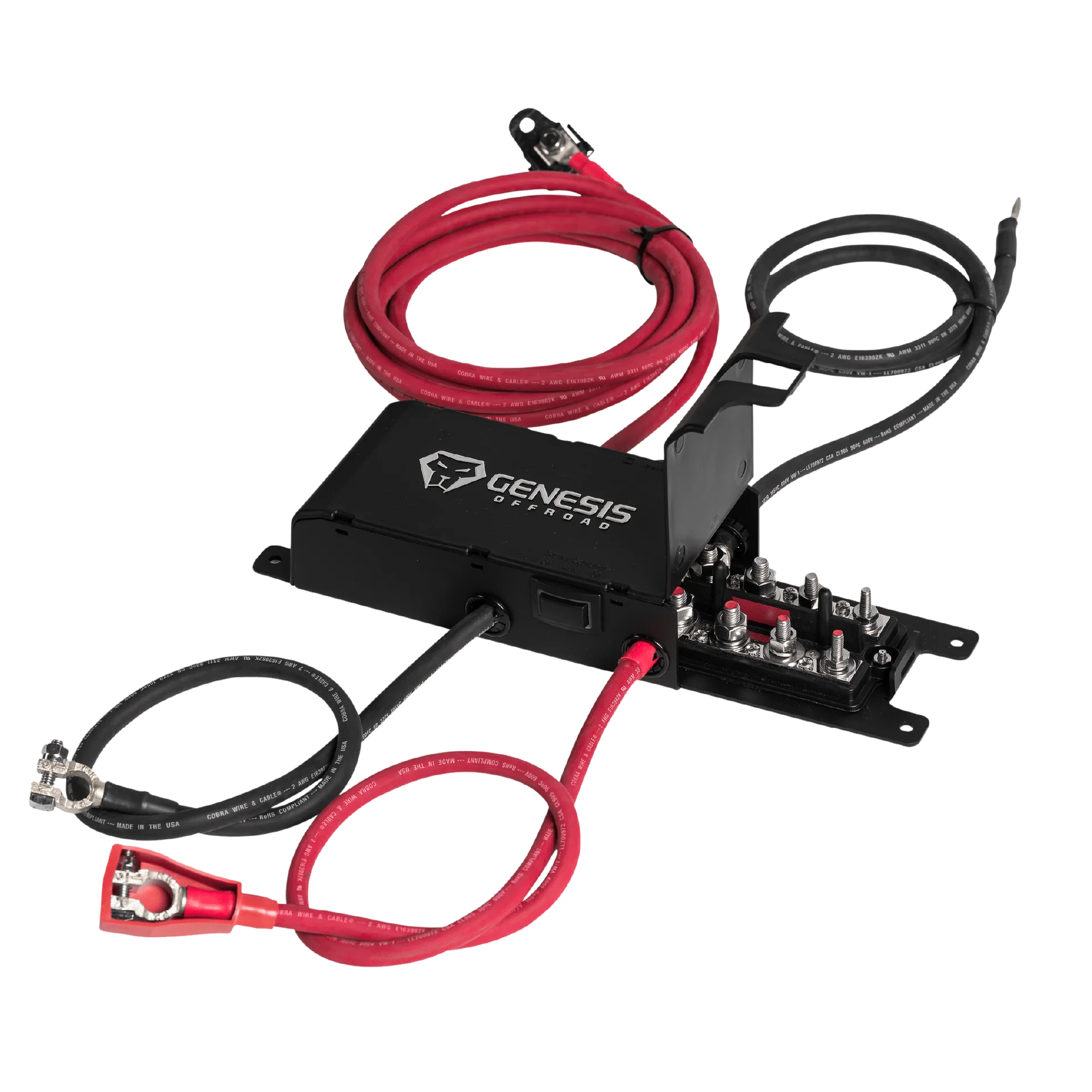

The Genesis Offroad 223-PHG3 Universal Gen 3 Power Hub is a complete wiring solution for adding a remotely mounted dual battery system to virtually any vehicle. All wiring and electrical work is pre-assembled — simply connect one side of the hub to your cranking battery and the other side to your accessory battery for a clean, straightforward installation.

At the heart of the system is a smart battery combiner that allows your alternator to charge both your cranking and accessory batteries simultaneously while driving. Once voltage drops below 12.7V, the combiner automatically separates the two batteries, protecting your cranking battery from being drained by connected accessories.

What's Included:

  • Gen 3 Power Hub — Smart battery combiner, boost switch, accessory bus bars, G Screen monitoring port, and mounting base holes (14.55" x 3")
  • 13' red 2ga cable to cranking battery positive with 600-amp fuse
  • 4' black 2ga cable to factory ground point
  • 32" red cable to auxiliary battery positive with insulated cover
  • 32" black cable to auxiliary battery negative

Key Features:

  • Smart battery combiner connects batteries in parallel while driving, then isolates them to protect your starting battery
  • Accessory bus bars with three stud sizes (1/4", 5/16", and 3/8") for heavy-duty accessories such as winches, stereo amplifiers, air compressors, and fuse panels
  • Small screw terminals for lighter-gauge accessories (#10 ring terminals) such as LED lights and CB radios
  • Protective flip-up cover shields electronics and wiring for a cleaner engine bay appearance
  • G Screen monitoring system port (compatible with optional G Screen v5.3, part number 227-GS)
  • Higher solid copper strand count cables for increased current capacity and flexibility
  • Thicker insulating jacket and adhesive-lined heat shrink for superior corrosion protection
  • Tin-plated copper lugs and post clamps for optimal conductivity
  • Compatible with any matching battery type pair (AGM-to-AGM, lithium-to-lithium, etc.)

The 223-PHG3 is compatible with any battery type, provided the cranking and accessory batteries are of the same type. Pairs seamlessly with Genesis Offroad adjustable battery brackets for a complete, professional-grade installation.
