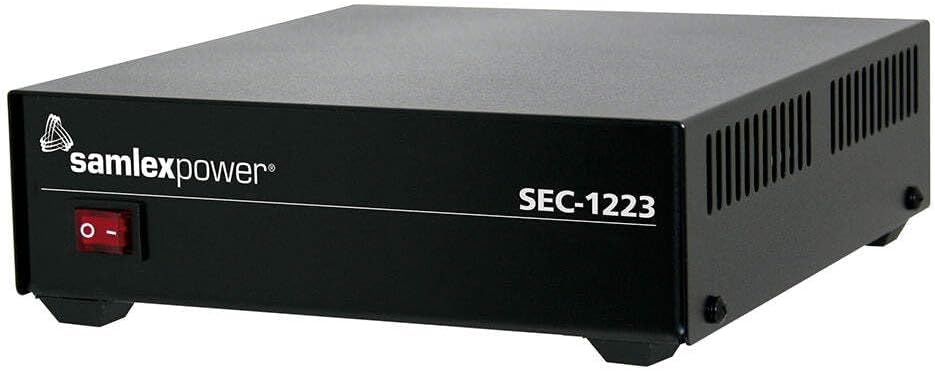

Samlex SEC-1223 23A 13.8V Switching Power Supply w/ Ham Guides Card

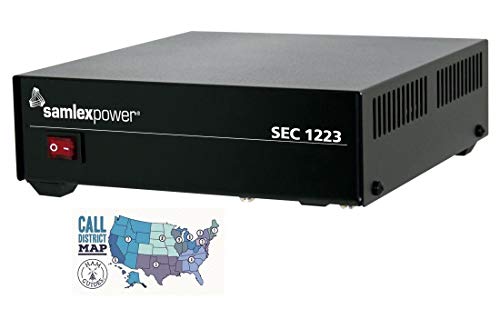

The Samlex SEC-1223 is a 23 amp, 13.8 VDC switching power supply (AC-DC power converter) designed for land mobile radio (LMR) applications. This bundle pairs the power supply with a Ham Guides TM Pocket Reference Card.

The unit is a high-efficiency, UL-60950-1 approved switch-mode supply. It delivers a highly regulated 13.8 volt DC output at 23 amps from a 120 volt, 60 Hz AC input. The output is clean and highly filtered to suppress RFI. A detachable power supply cord with a NEMA 5-15P plug is included.

Key Features:

• Advanced switch-mode technology for reliable power with minimum weight and size
• Circuit design that minimizes output voltage ripple and RFI
• Over-current, short-circuit and over-voltage protection
• Conforms to FCC Part 15(B), class B digital device
• UL listed to both USA and Canadian safety standards

Specifications:

• Input: 100-130 VAC
• Output: 13.8 VDC
• Current: 23 amps
• Fuse: 6.3 amps
• Weight: 3.5 lbs
• Dimensions: 7.28 x 8.19 x 2.40 in
• Safety: UL, FCC

Applications:

• Two-way radio base stations
• Communications systems
• Security systems
• Test equipment
• Plotters
• GPS receivers
• Automotive and marine displays
• DC computers
• 12 volt lighting systems
• OEM applications
