REDARC BCDCWK-006 50A Rear Install Wiring Kit for BCDC DC-DC Battery Chargers

The REDARC BCDCWK-006 is a complete 50-amp wiring kit designed for rear-of-vehicle installations of BCDC DC-to-DC battery chargers. Suitable for BCDC1240D and BCDC1250D, the BCDCWK-006 BCDC Wiring Kit has been designed to facilitate easy installation of a REDARC BCDC DC to DC Battery charger when the start battery and auxiliary battery are at the rear of the vehicle where the auxiliary battery is up to 8.5 m (28') away from the start battery. This heavy-duty kit is ideal for trucks, RVs, campers, and off-road vehicles with dual battery systems.

Key Features:

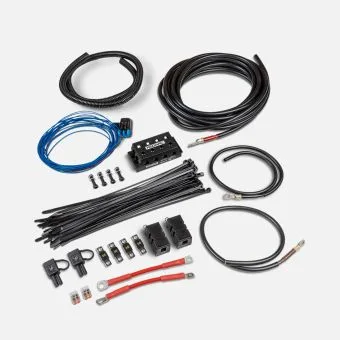

• Complete installation kit with all cables, fuses, fuse holders, and connectors
• Pre-crimped cables on one end for easy installation
• Cut-to-length design with supplied terminal block
• Heavy-gauge cables rated for 50-amp charging systems
• Supports battery distances up to 28 feet (8.5 meters)
• 60A and 45A MIDI fuses included for protection

Technical Specifications:

• Brown Cable: 600 mm (23.6") length, 13.3 mm² (6 AWG) gauge
• Black Cable: 600 mm (23.6") length, 7.7 mm² (8 AWG) gauge
• Red Cable: 8.5 m (27'9") length, 21.2 mm² (4 AWG) gauge
• Blue Cable: 8.5 m (27'9") length, 0.52 mm² (20 AWG) gauge
• Includes 2 Wago connectors with boots for lithium profile connections
• Hardware: M5 screws, washers, and nylon nuts supplied

Compatible Models:

• REDARC BCDC1240D (40-amp DC-DC charger)
• REDARC BCDC1250D (50-amp DC-DC charger)
• REDARC BCDCN1240 (40-amp Core model for in-cabin use)

This kit contains cables with a wider diameter and higher rated fuses to allow for higher current. The terminal block system allows for professional cable management without soldering, making installation cleaner and more reliable. Note that auxiliary battery ground cable and solar-to-Anderson cable are sold separately.

REDARC recommends professional installation by a qualified auto electrician or technician for optimal performance and safety.
