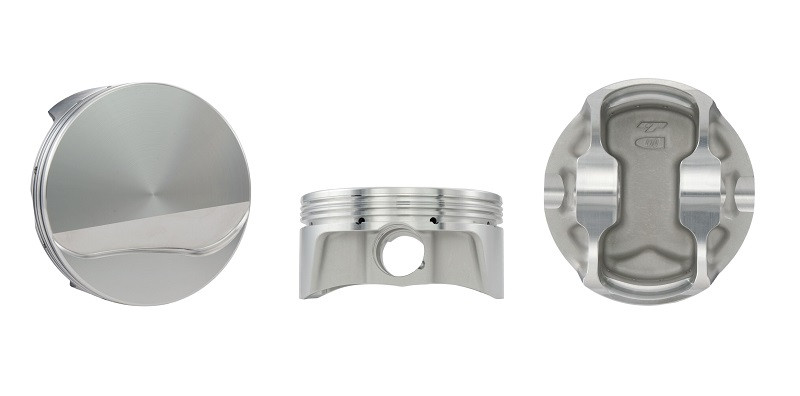

Carrillo BP8002-035 Bullet Series Forged Piston and Ring Kit

The Carrillo BP8002-035 Bullet Series Piston and Ring Kit is a high-performance forged piston set designed for Pontiac big block V8 engines.

Key Specifications:

• Bore: 4.155 inches (105.537mm)
• Stroke: 4.250 inches
• Rod Length: 6.800 inches
• Compression Height: 1.295 inches
• Piston Style: Flat top with two valve reliefs
• Piston Head Volume: -9.04cc
• Compression Ratio: 11.2:1 (with 72cc combustion chamber)
• Advertised Weight: 475 grams per piston

Features and Construction:

• Manufactured from 2618 forged aluminum alloy for exceptional strength and durability
• Designed to fit all 14-degree Pontiac factory and Edelbrock cylinder heads
• Precision balanced within 1 gram for smooth operation
• Advanced ring package: 1.5mm steel gas nitride top ring, 1.5mm Napier second ring, and 3.0mm oil ring
• Includes chromoly wrist pins with wire locks
• Dual forced pin oilers and contact reduction grooves
• Accumulator groove for improved ring sealing
• Proudly made in the USA

CP-Carrillo Bullet Series pistons incorporate decades of racing experience with computer-designed forgings, tight tolerances, and rigorous quality control. These pistons are ideal for street performance and racing builds where reliability and power are essential.
