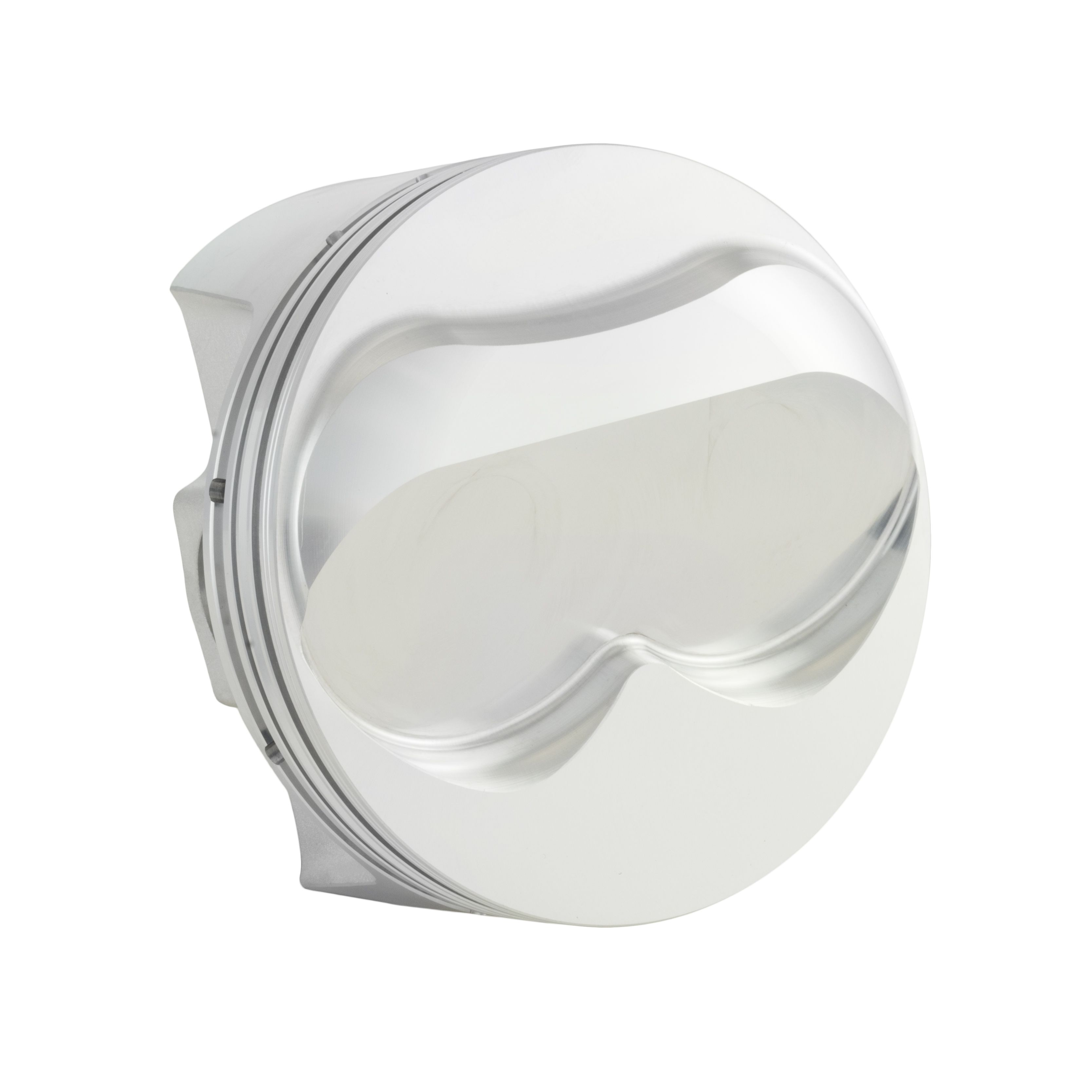

Carrillo BBCRE5330-105 Bullet Elite Forged Piston Big Block Chevy Bore - Set 4.605

The CP-Carrillo Bullet Elite BBCRE5330-105 is a premium forged piston set engineered specifically for high horsepower naturally aspirated big block Chevrolet engines. This set is designed to fit the majority of 24-degree cylinder heads on the market today, including Brodix BB3 Xtra and Head Hunter configurations.

Complete Specifications:

• Engine Application: Chevy 583 cubic inch Big Block
• Bore Size: 4.605 inches
• Stroke: 4.375 inches
• Rod Length: 6.535 inches
• Compression Height: 1.070 inches
• Dome Volume: 46.9cc dome
• Material: 2618 aluminum alloy forging

Ring Package and Features:

• 1.0mm steel top ring
• 1.0mm Napier second ring
• 3.0mm oil ring
• 0.315 inch deep intake valve pockets
• +0.100 inch raised exhaust valve pockets
• Vertical gas ports for improved ring sealing

What's Included:

• Complete set of 8 pistons and rings
• 0.990 inch diameter x 2.750 inch length wrist pins with 0.180 inch wall thickness

Proudly manufactured in the USA, these pistons deliver exceptional strength and reliability for demanding naturally aspirated racing applications. The 2618 alloy provides superior tensile strength and fatigue resistance, making this set ideal for high-RPM competition engines.
