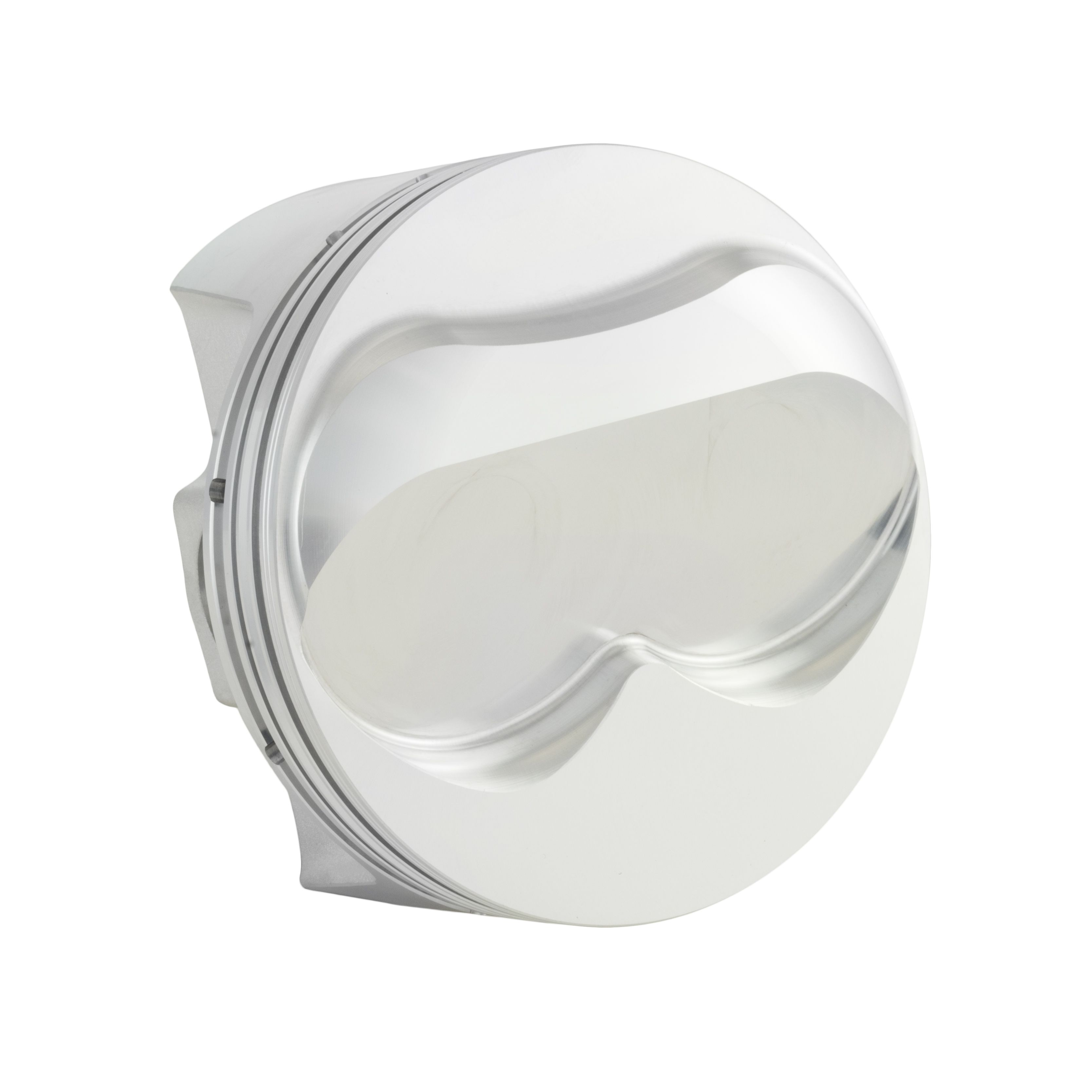

Carrillo BBCRE5330-060 Bullet Elite Forged Piston Big Block Chevy Bore - Set 24 BB3 4.560

The Carrillo BBCRE5330-060 Bullet Elite piston set is engineered specifically for high-horsepower naturally aspirated big block Chevy engines equipped with 24° cylinder heads. This complete set of 8 pistons is designed to fit the majority of 24° cylinder heads on the market today, including Brodix BB3 Xtra and Head Hunter applications.

Key Specifications:

• Bore: 4.560 inches
• Stroke: 4.375 inches
• Rod Length: 6.535 inches
• Compression Height: 1.070 inches
• Dome Volume: 46.9cc
• Compression Ratio: 14.7:1 (with 118cc heads)
• Ring Package: .043 x .043 x 3mm (1.0mm steel top ring, 1.0mm Napier second ring, 3.0mm oil ring)
• Wrist Pin: .990 x 2.750 inches with .180 wall thickness

Premium Construction:

• Forged from 2618-T61 aluminum alloy for maximum strength and durability
• Manufactured in the USA with precision machining and tight tolerances
• Features .315 deep intake valve pockets and .100 up exhaust valve pockets
• Vertical gas ports for improved ring seal
• Advanced cam and barrel skirt profiles for optimal piston-to-wall clearance

CP-Carrillo Bullet Elite pistons deliver race-proven performance and reliability for serious big block Chevy builds. This complete set includes pistons, rings, and wrist pins. Note: Hardware not included with this clearance item - final sale.
