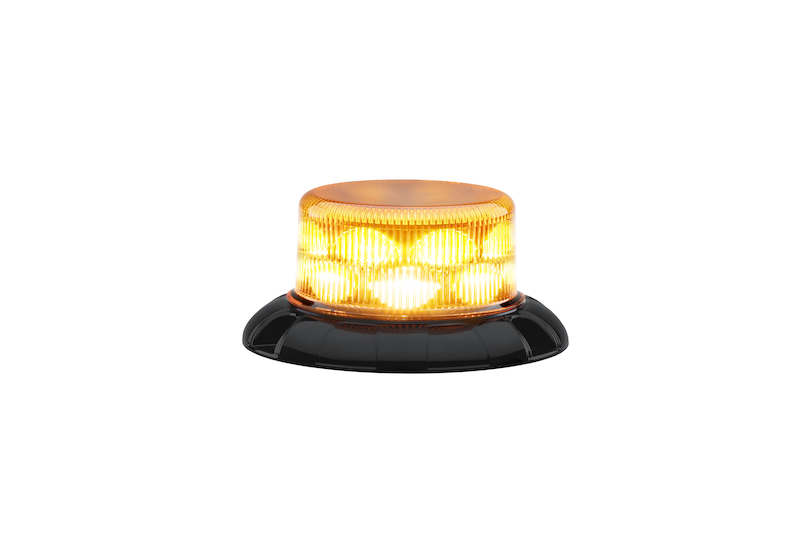

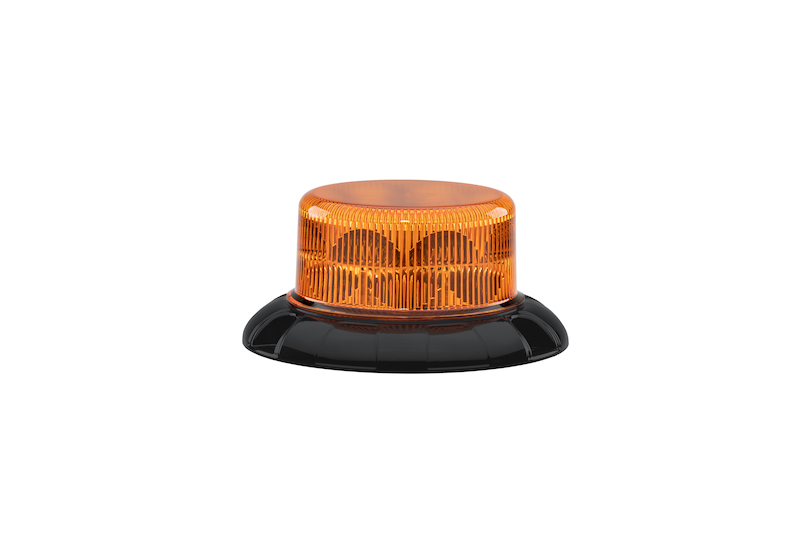

Hella 066146001 K-LED Nano Compact LED Strobe Beacon Fixed Mount Amber

The Hella K-LED Nano (Part# 066146001) is a compact, high-intensity LED warning beacon designed for professional and commercial vehicle applications. Despite its small footprint, the K-LED Nano delivers above-average light output, generating a powerful long-range amber flashing warning signal visible in all conditions — including full daylight.

As Hella's smallest fully homologated beacon, the K-LED Nano is engineered for reliability in the harshest environments. Its completely sealed housing and impact-resistant dome provide dual IP6K7 and IP6K9 protection ratings, making it impervious to high-pressure water jets, dust, and harsh weather. LED technology eliminates moving parts, greatly reducing maintenance requirements and extending service life.

The standard fixed-mount version features a slightly curved base plate with a 130 mm bolt circle diameter, matching standard Hella mounting points for easy drop-in replacement or new installation. The shock-absorbing, vibration-damping base plate can tilt up to 45° to cushion strong impacts, making this beacon suitable for use on heavy equipment, agricultural machinery, construction vehicles, and other demanding applications.

Key Features:

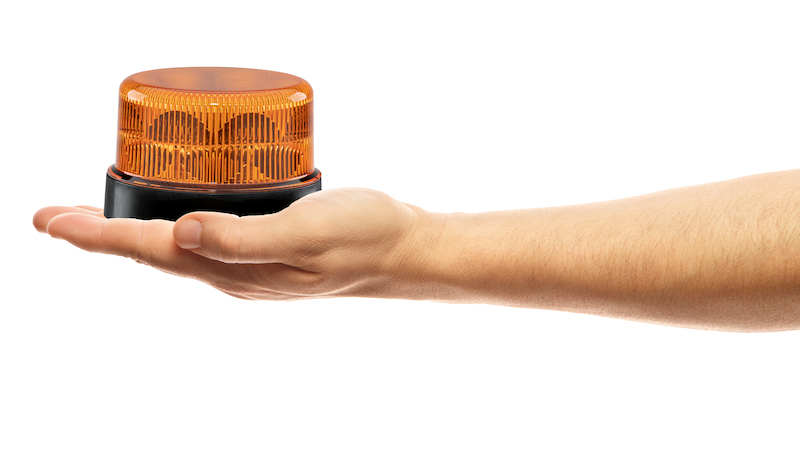

• Very compact design with above-average LED light intensity
• Flashing amber warning signal — long-range visibility day and night
• 16 LEDs with approx. 5W average / max power consumption
• Multi-voltage operation: 12V and 24V compatible
• Current draw: approx. 1.6A @ 12V / 0.8A @ 24V
• IP6K7 and IP6K9 protection — dustproof and high-pressure waterproof
• Operating temperature range: -40°C to +60°C (-40°F to +140°F)
• Total height: 89 mm (3.5 in); Outer diameter: 146 mm (5.75 in)
• Cable length: 150 mm (5.9 in) with blade terminal connection
• Standard bolt circle diameter: 130 mm; alternates of 43 mm or 85 mm available
• Shock-absorbing base tilts up to 45° to absorb impacts
• No moving parts — maintenance-free LED technology
• 5-year warranty

Certifications & Approvals:

• ECE-R65 TA1 (European type approval)
• SAE J845 Class 1
• ECE-R10 / CISPR 25 Class 5 EMC compliance
• RCM (Australian/NZ regulatory compliance mark)

Cross-reference part numbers: 2XD 066 146-001, HELLA 2XD066146001. OEM cross-reference: DAF 2281055. The K-LED Nano is a true fit-and-forget solution — once installed, it becomes a durable, long-lasting vehicle component requiring no further maintenance.
