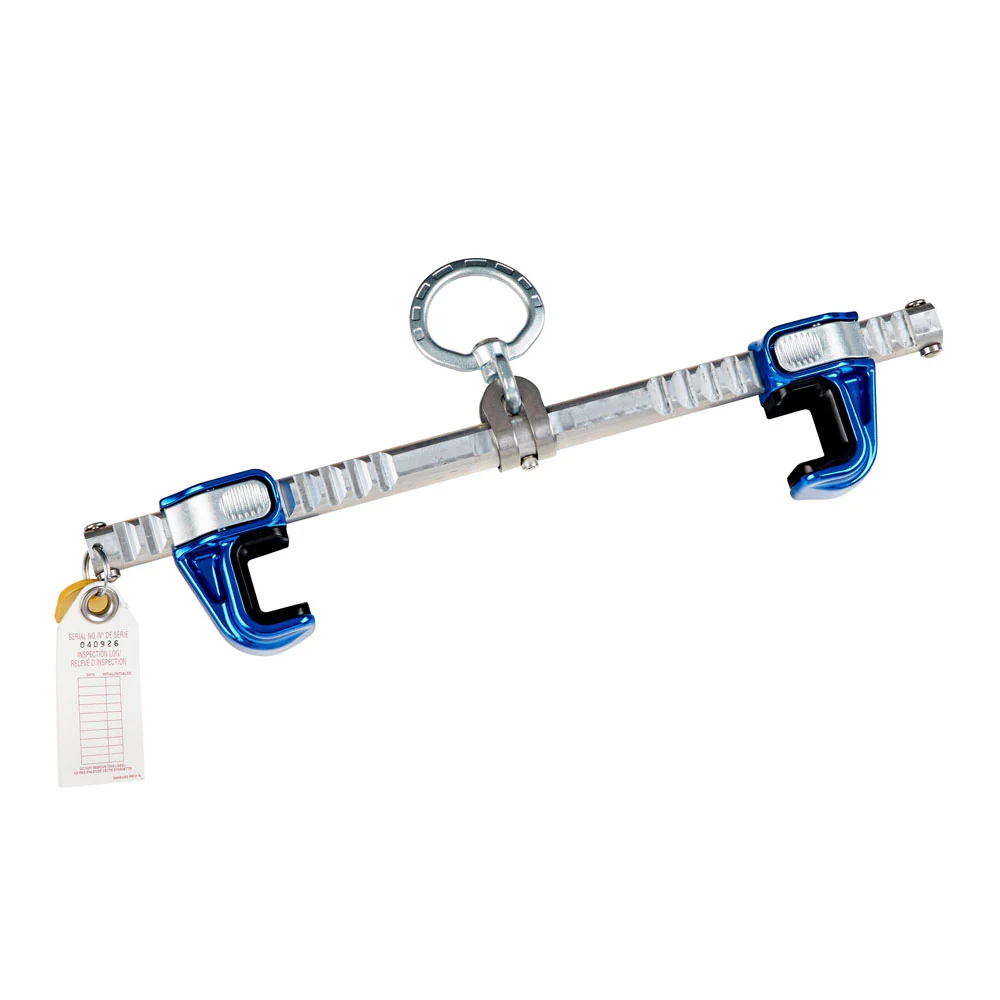

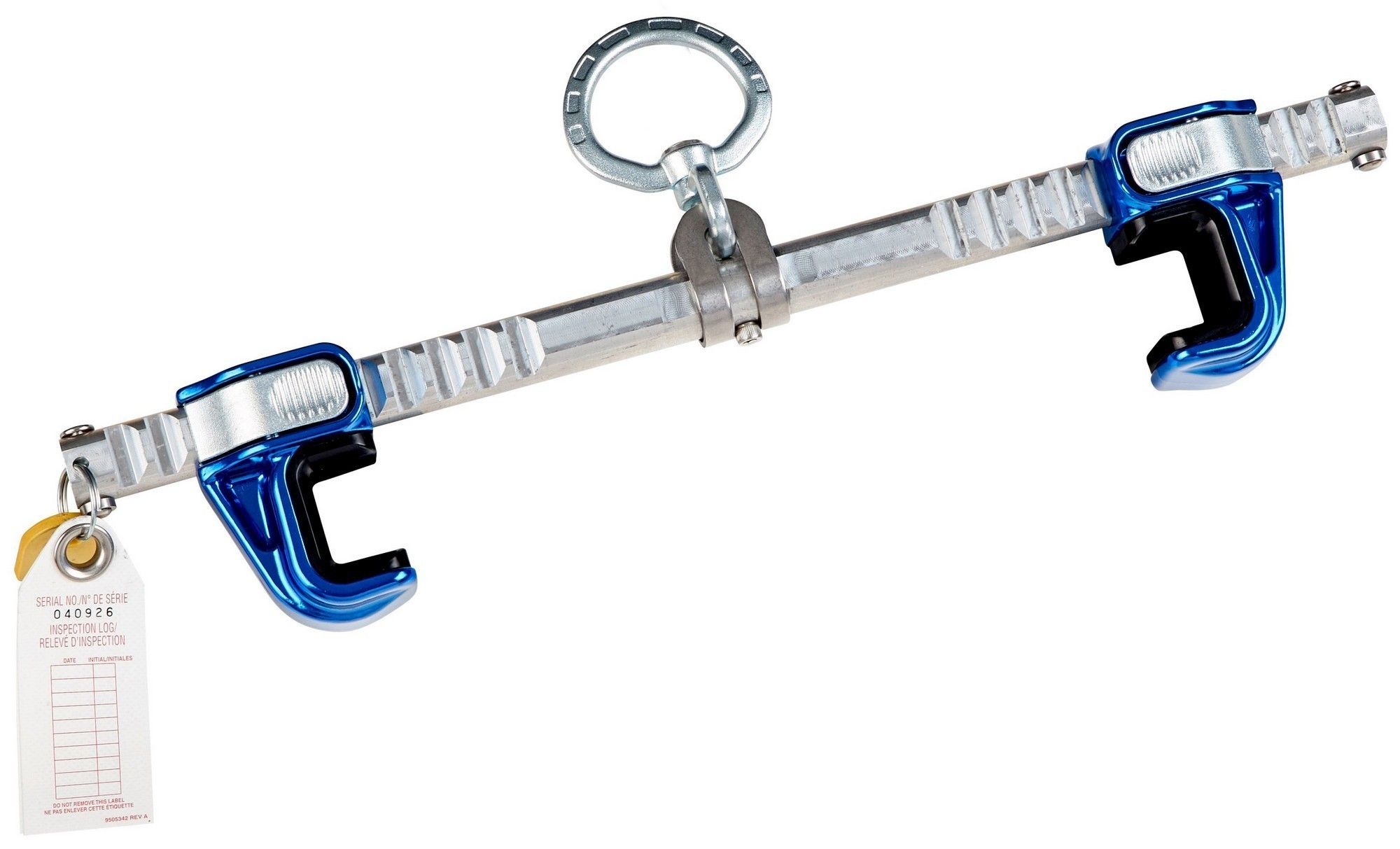

DBI-Sala 2104710 Sliding Beam Anchor Small 3.5-14 Inch

The 3M DBI-SALA 2104710 Sliding Beam Anchor is a reusable fall protection anchor that provides complete hands-free horizontal mobility along H and I beams. This small-size model fits beam widths from 3.5 to 14 inches with flange thickness up to 1.25 inches, making it ideal for bridge work, construction sites, warehouses, arenas, and parking ramps.

Key Features:

• 360-Degree Swiveling D-Ring: Optimizes mobility on the beam while preventing tangles and constant adjustments
• Dual Ratcheting Adjustment System: Quick installation and removal with accessible buttons above the beam—no pins or chains required
• Hands-Free Mobility: Slides effortlessly across the beam on replaceable nylon wear pads, eliminating metal-to-metal contact
• Guarded Locking Mechanism: Located on the side to protect against accidental disengagement
• Lightweight Construction: Weighs only 3.5 lbs while supporting up to 420 lbs capacity
• Corrosion-Resistant Materials: High-strength aluminum and stainless steel construction meets ANSI standards
• Field-Replaceable Wear Pads: Snap-in design allows quick replacement on site

Specifications: 5,000 lb tensile strength, 420 lb weight capacity, meets ANSI Z359.18 and OSHA 1910.140/1926.502 standards. Connect your self-retracting lifeline (SRL) or lanyard to the D-ring for overhead tie-off. For foot-level tie-off applications, use with 3M DBI-SALA Nano-Lok edge Twin-Leg SRL.
