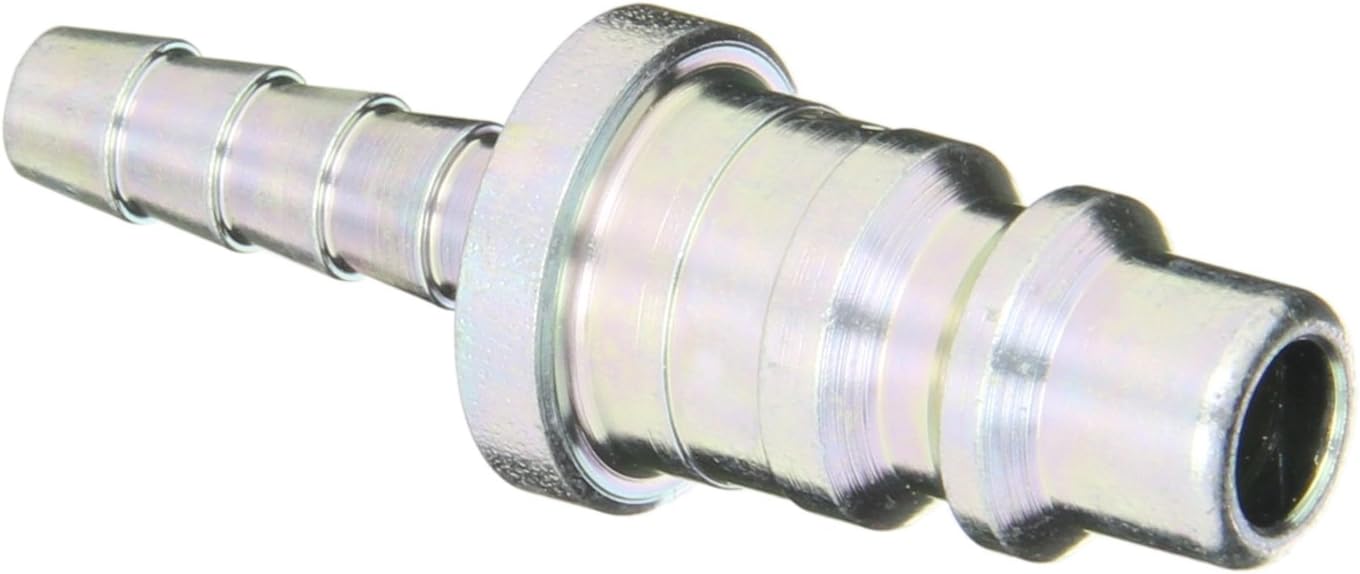

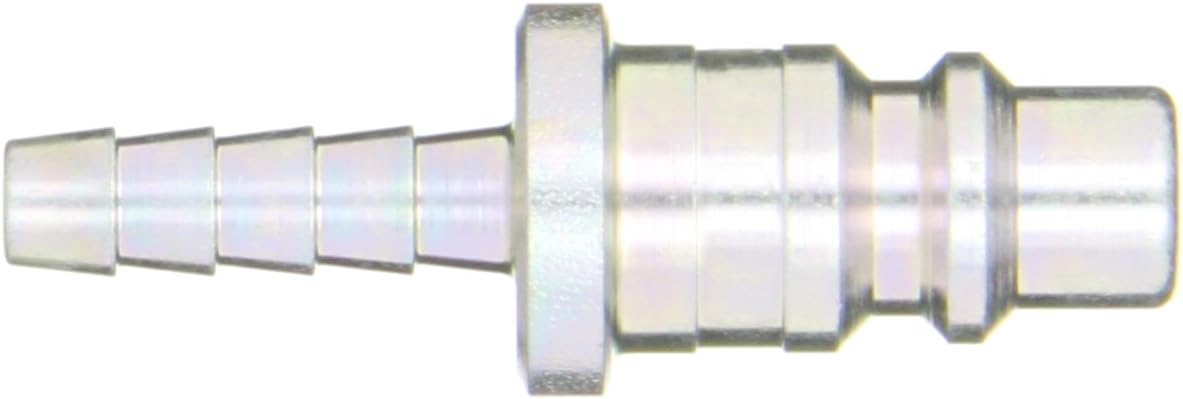

Dixon Valve D3S2 Air Chief Industrial Interchange Pneumatic Plug 3/8" x 1/4" Hose Barb

The Dixon Valve D3S2 is a DF-Series industrial interchange pneumatic plug designed for reliable air service in demanding industrial applications. This plug features a standard hose barb connection and is part of Dixon's Air Chief line, which interchanges with many popular industrial quick-connect systems.

Construction and Materials:

• Rugged steel construction with ROHS compliant trivalent chrome plating for corrosion resistance
• Standard Nitrile (Buna-N) seals providing reliable performance
• Machined from solid bar stock for maximum strength and durability

Technical Specifications:

• 3/8" coupling connection x 1/4" hose ID barbed end
• Maximum working pressure: 500 PSI when connected with D-Series automatic couplers
• Temperature range: -40°F to +250°F (-40°C to +121°C)
• Overall length: 2.21 inches
• Maximum outside diameter: 0.75 inches

Features and Benefits:

• Industrial interchange design compatible with Foster 3, 4, 5, 6 Series and Parker 30 Series automatic interchange fittings
• Hose barb design provides secure connection for pneumatic hose applications
• Wide temperature range suitable for diverse industrial environments
• For compressed air service only

Note: Operating pressure for couplings using hose barb connections may be reduced based on the hose rating and connection combination. Always use proper safety devices such as safety check valves and safety cables in pneumatic circuits.
