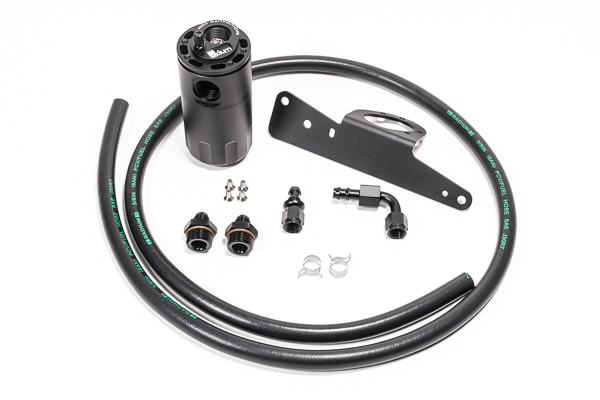

RADIUM Engineering 20-0093-FL PCV Catch Can Kit with Fluid Lock for Honda S2000

The RADIUM Engineering 20-0093-FL is a complete PCV (Positive Crankcase Ventilation) oil catch can kit specifically engineered for 2000-2005 Honda S2000 left-hand drive models. This bolt-in system protects your engine from crankcase blow-by and oil vapor contamination that can degrade performance during aggressive driving.

Key Features:

• Complete bolt-in installation kit designed specifically for 2000-2005 Honda S2000 LHD chassis
• Includes Radium's patent-pending Fluid Lock catch can with 7 fluid ounce capacity
• Interfaces directly with PCV hose on valve cover and intake manifold
• Machined from 6061 billet aluminum with O-ring sealed construction
• 10AN ORB main ports with integrated stainless steel baffle and air/oil separator
• Integrated dipstick for easy fluid level monitoring
• 4AN ORB drain port for convenient servicing
• Custom anodized mounting bracket for S2000-specific fitment
• Closed-loop system - emissions and track legal (does not vent to atmosphere)

Fluid Lock Technology:

Radium's exclusive Fluid Lock feature provides an internal safety valve that closes when the catch can is full, preventing contaminants from re-entering the engine while maintaining proper crankcase ventilation. This prevents engine damage even if the catch can reaches capacity between service intervals.

Performance Benefits:

• Prevents oil buildup in intake manifold, throttle body, and intake tract
• Maintains cleaner inlet air for improved engine performance
• Lowers hydrocarbon emissions
• Protects against performance degradation from oil-saturated intake air
• Can indicate engine health through oil collection rate monitoring

Compatibility Note:

This kit is designed exclusively for 2000-2005 Honda S2000 left-hand drive models. It is NOT compatible with right-hand drive S2000s or 2006-2009 S2000 models. For dual catch can protection (PCV and CCV systems), see Radium's 20-0096-FL kit.

Specifications:

• Catch Can Capacity: 7 fluid ounces
• Height (without fittings): 4.9 inches
• Outside Diameter: 2.45 inches
• Main Ports: 10AN ORB (7/8"-14 female threads)
• Drain Port: 4AN ORB (7/16"-20 female threads)
