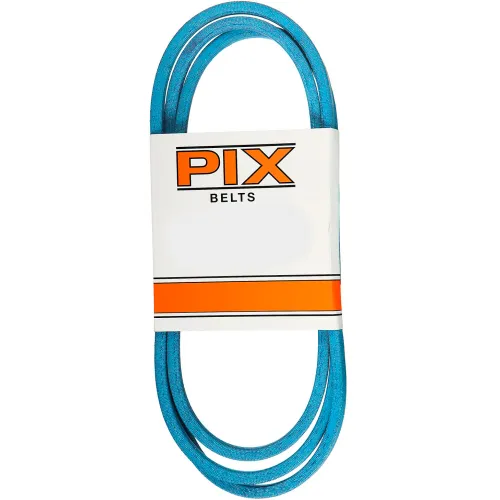

Pix Belts B46K Kevlar V-Belt 5/8" x 49" B-Section Heavy Duty

The Pix B46K is a heavy-duty B-section V-belt featuring Kevlar aramid fiber construction, measuring 5/8" top width by 49" outside length (46" inside length). This premium belt replaces standard polyester cords with much stronger Kevlar cords, delivering superior performance in demanding applications.

Key Specifications:

• Top Width: 21/32 inch (5/8")
• Height: 7/16 inch
• Outside Length: 49 inches
• Inside Length: 46 inches
• Cross Reference: 5L490K
• Material: Dry wrapped aramid cord

Performance Features:

• Very resistant to severe and repeated shock loads
• Resists humidity, high temperatures, oil and cracking
• Temperature Range: 22°F to 194°F
• Suitable for medium to high horsepower industrial applications
• Ideal for machinery with backside idlers where normal belts wear out faster

The B46K is excellent for lawn and garden equipment of all types, agricultural equipment, and all types of industrial drives, especially where misalignment, clutching, or backside idlers are present. This belt is also known by cross-reference numbers including Gates 6949, Dayco L546, and Oregon 75-549.
