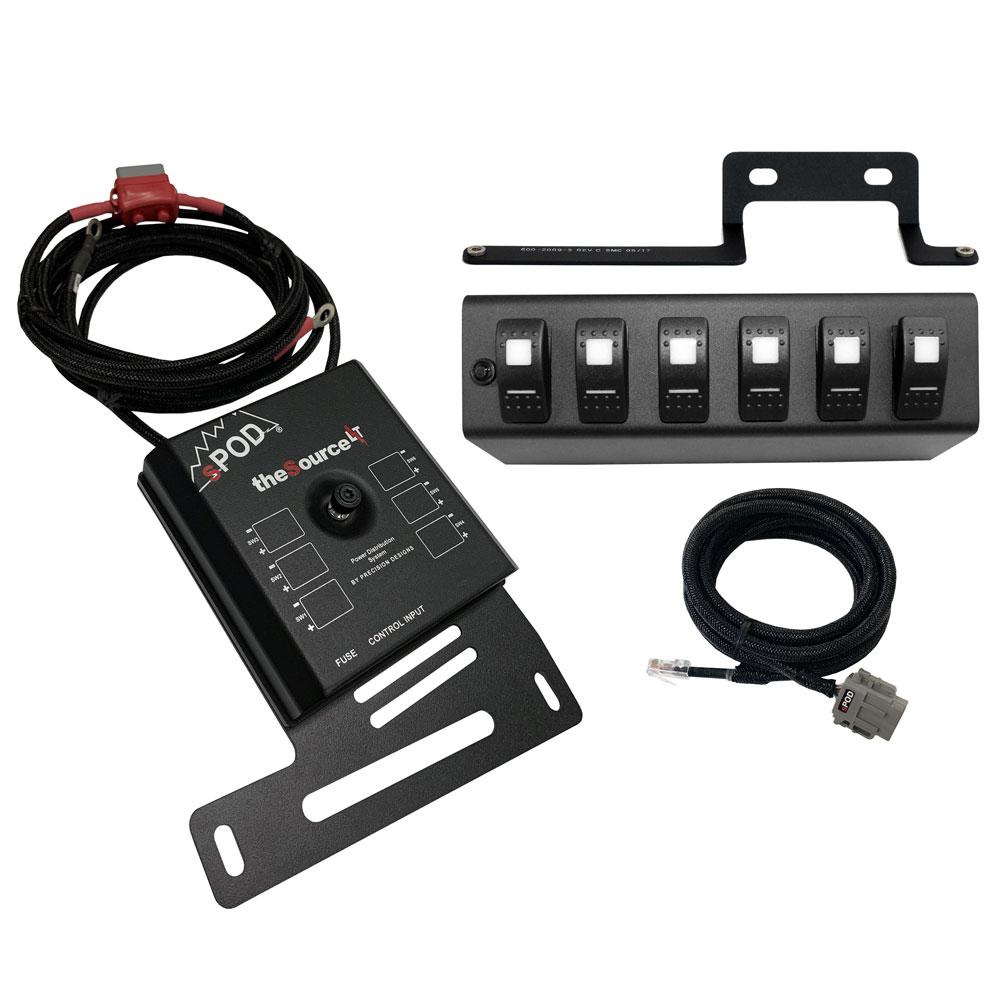

sPOD 873105 SourceLT Control System with Amber LED Switch Panel for Jeep JK - 6-Circuit 2009-2018

The sPOD SourceLT is a compact, solid-state 6-circuit control system designed to simplify aftermarket electrical installations on 2009-2018 Jeep Wranglers (JK). This complete system eliminates hours of complex wiring by providing a clean, single-cable connection into the cabin and a safe way to power and control 12VDC accessories. The small footprint allows for flexible mounting options without cutting, fishing wires, or tapping into your vehicle's existing electrical system.

Control System Features:

• 6 independently controlled circuits rated at 30 amps each at 12.5 VDC
• Current-sensing MOSFETs controlled by microprocessor—no fuses or relays to replace
• Self-healing fault protection circuits (1.5 to 30 amps)
• Integrated low voltage cutoff (LVCO) battery protection with optional override
• 50-amp auto-resetting circuit breaker
• 12-position terminal block for easy accessory connections
• 10-foot controller cable for plug-and-play connectivity
• Built-in Bluetooth 4.0 for smartphone control and wireless software updates
• Comprehensive protection against overheating, over-current, shorts, reverse polarity, and field collapse
• High-strand crosslinked copper battery cables with silicone jacket and nylon braided sleeve

Switch Panel Specifications:

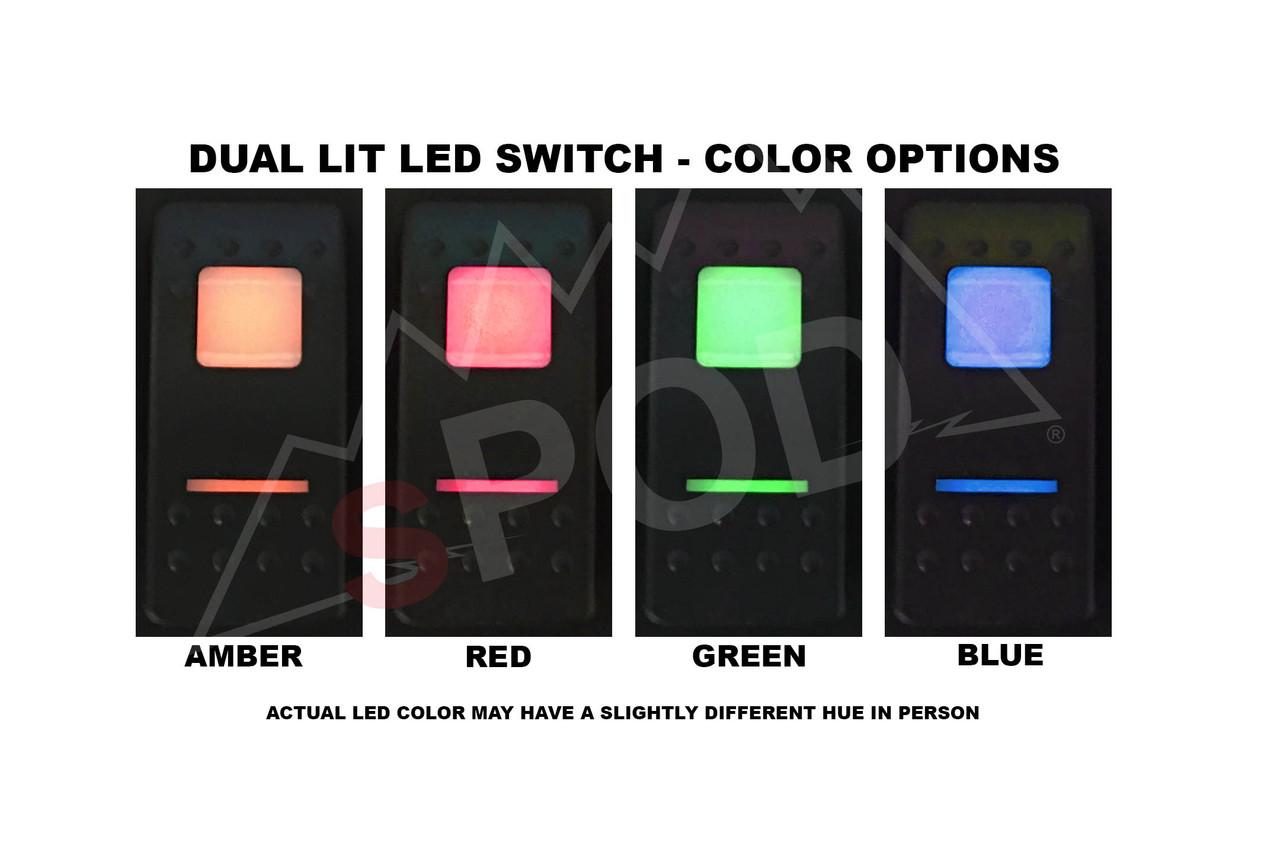

• Six dual-lit Carling Technologies Contura LED switches with amber lighting (pre-wired and installed)
• IP66/68 certified switches for marine and harsh environment use
• Formed, welded, and powder-coated aluminum construction
• Controlled lower pilot lights with push-button operation
• Compatible with custom laser-etched rockers (sold separately)
• Auto-safe system shutdown when panel is unplugged
• High-temp abrasion-resistant nylon braided wire sleeving

Housing and Mounting:

• Powder-coated steel base with integrated mounting hardware
• Weatherproof silicone gasket
• Thumb screw-fastening aluminum lid with silkscreened legend placement guides
• Robust insulated base and cover
• Vehicle-specific mounting for JK Wranglers

sPOD Mobile App Capabilities:

• Program each switch for dimming, strobe, flash, or momentary operation
• Switch linking functionality
• Separate On-Road and Off-Road operating modes
• Free download from iTunes or Google Play Store
• Requires Bluetooth 4.0 compatible device (Android 8.0 Oreo or later, iOS 11 or newer)

The sPOD SourceLT with Amber LED Switch Panel provides professional-grade electrical control with the convenience of smartphone programming, making it the ideal solution for powering lights, winches, air compressors, and other 12-volt accessories on your Jeep JK.
