sPOD 870080 BantamX 8-Circuit Switch Panel System with Red LED Switches for Jeep JK 2007-2008

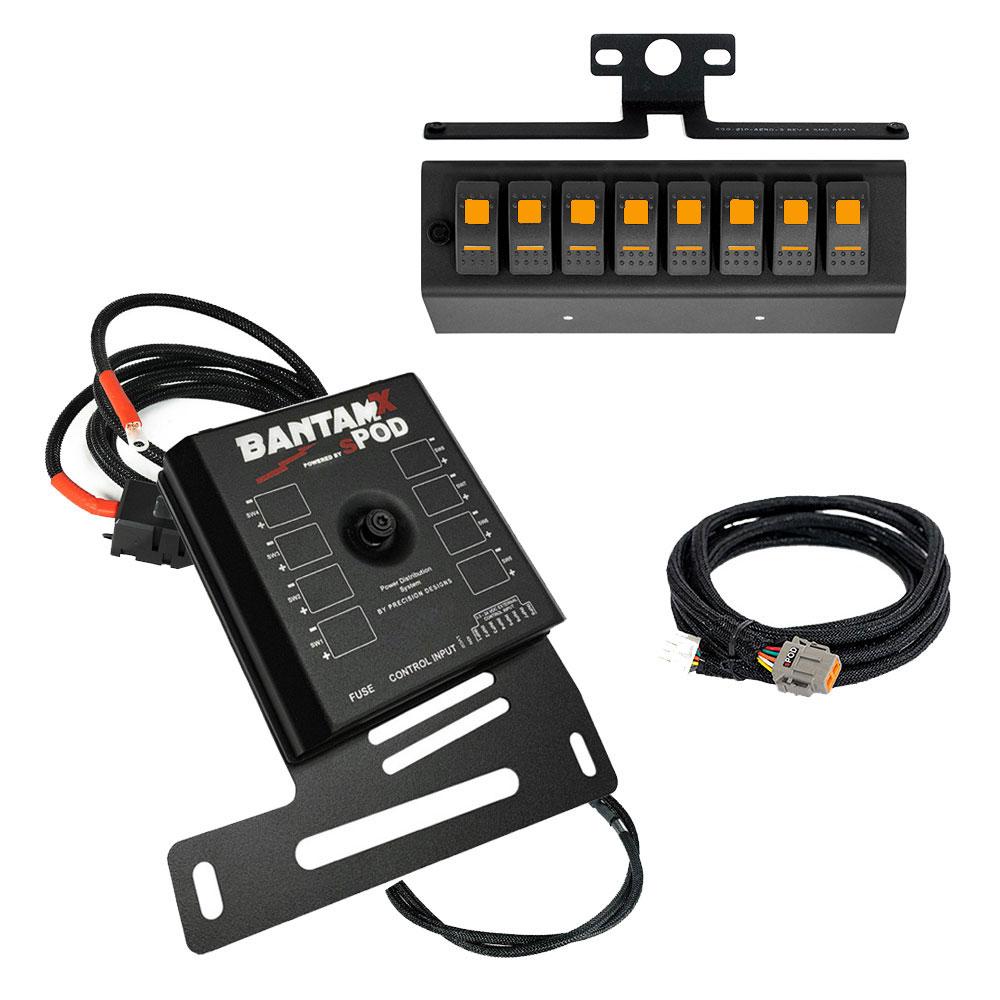

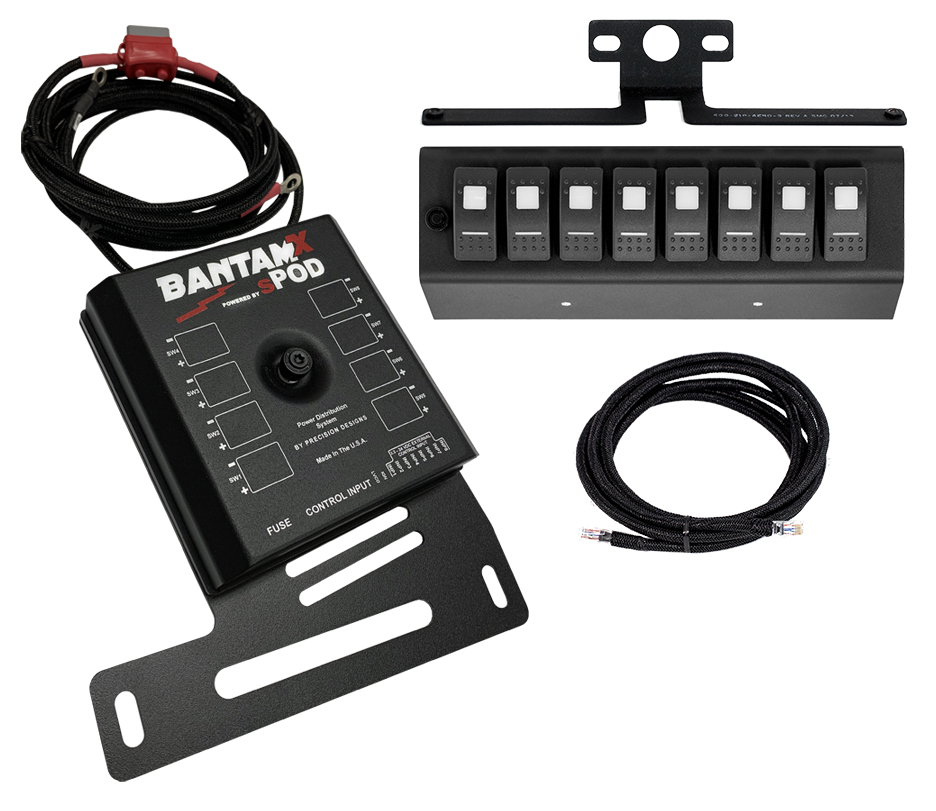

The sPOD BantamX is a compact, fully programmable 8-circuit power distribution system designed to simplify aftermarket electrical accessory installation. This complete system includes the BantamX control module and an aluminum switch panel with eight dual-lit red LED Carling Contura switches, all pre-wired and ready to install. With just one Ethernet cable running into the cab, you eliminate hours of complex wiring while maintaining a clean, professional appearance.

BantamX Control Module Features:

• 8 circuits rated at 30 amps per circuit at 12.5 VDC (expandable system)
• Digital microprocessor-controlled current-sensing MOSFETs eliminate traditional fuses and relays
• Failsafe self-healing fault protection system (1.5 to 30 amps)
• Integrated low voltage cutoff (LVCO) battery protection with optional override
• Built-in Bluetooth capabilities for remote control via smartphone
• 16-position terminal block for easy accessory connections
• 8-position input terminal block for external control options
• 50-amp auto-resetting circuit breaker
• Operates on 12VDC or 24VDC systems
• Comprehensive protection against overheating, over-current, shorts, reverse polarity, and field collapse
• Up to 4 BantamX units can be daisy-chained and controlled by one touchscreen

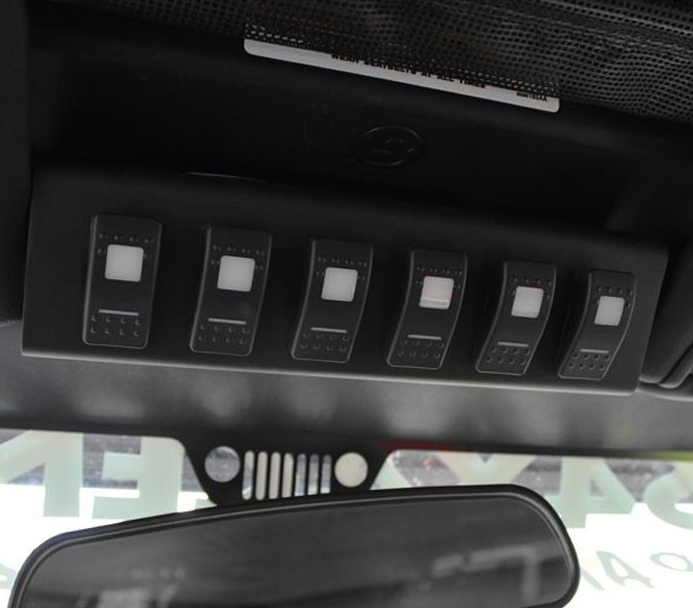

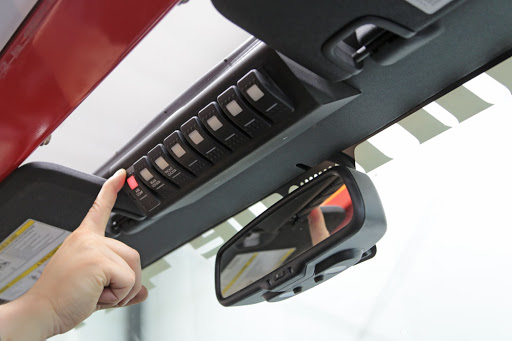

Switch Panel Specifications:

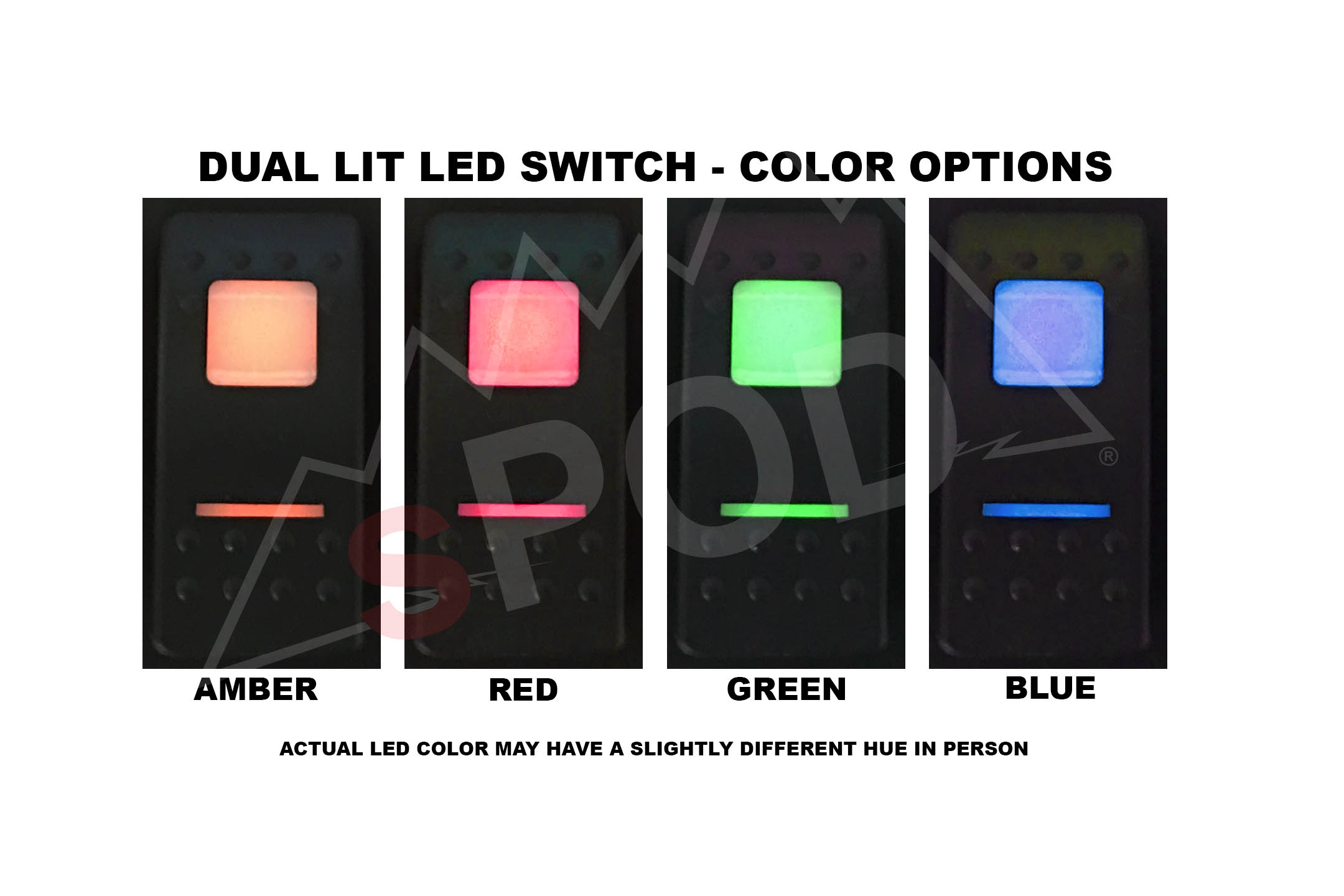

• Eight Carling Technologies Contura switches with dual red LED lighting (IP66/68 rated for marine/harsh environments)
• Formed, welded, and powder-coated aluminum construction
• Includes 10-foot CAT-6 Ethernet cable (extendable up to 25 feet)
• All wiring wrapped in high-temp abrasion-resistant nylon braided sleeving
• Two RJ45 ports integrated into CAN-Bus controller
• Compatible with additional switch panels, HD controllers, and touchscreens
• Auto-safe system shutdown when panel is unplugged

Programmable Features via Free sPOD Mobile App:

• Individual switch programming for dimming, strobe, flash, and momentary operation
• Switch linking capabilities
• On-road and off-road operational modes
• Wireless software updates and upgrades

Pro-Series App Additional Features (sold separately):

• Circuit timers and switch lockout
• Programmable current limiting in 2-amp increments
• Always-on circuit programming with fault protection
• Variable strobe function for custom flash patterns
• Selectable auto-restart after overcurrent/short shutdown
• Programmable ignition control for all 8 circuits

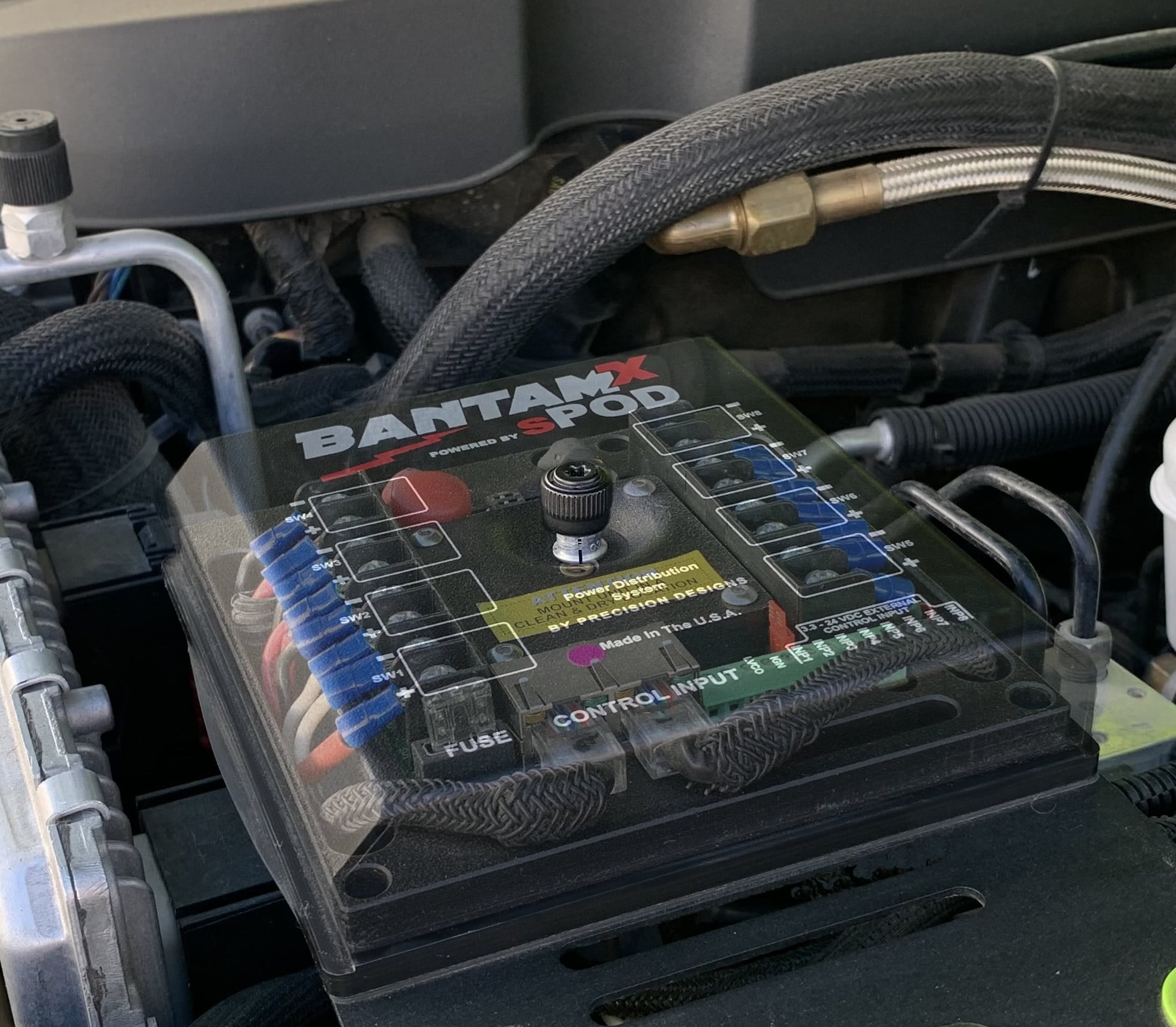

Hardware Construction:

• Powder-coated steel base with integrated mounting hardware
• Aluminum lid with silicone gasket for weatherproofing
• Robust insulated base and cover
• Nylon braided battery cables with hi-strand crosslinked copper wire and silicone jacket

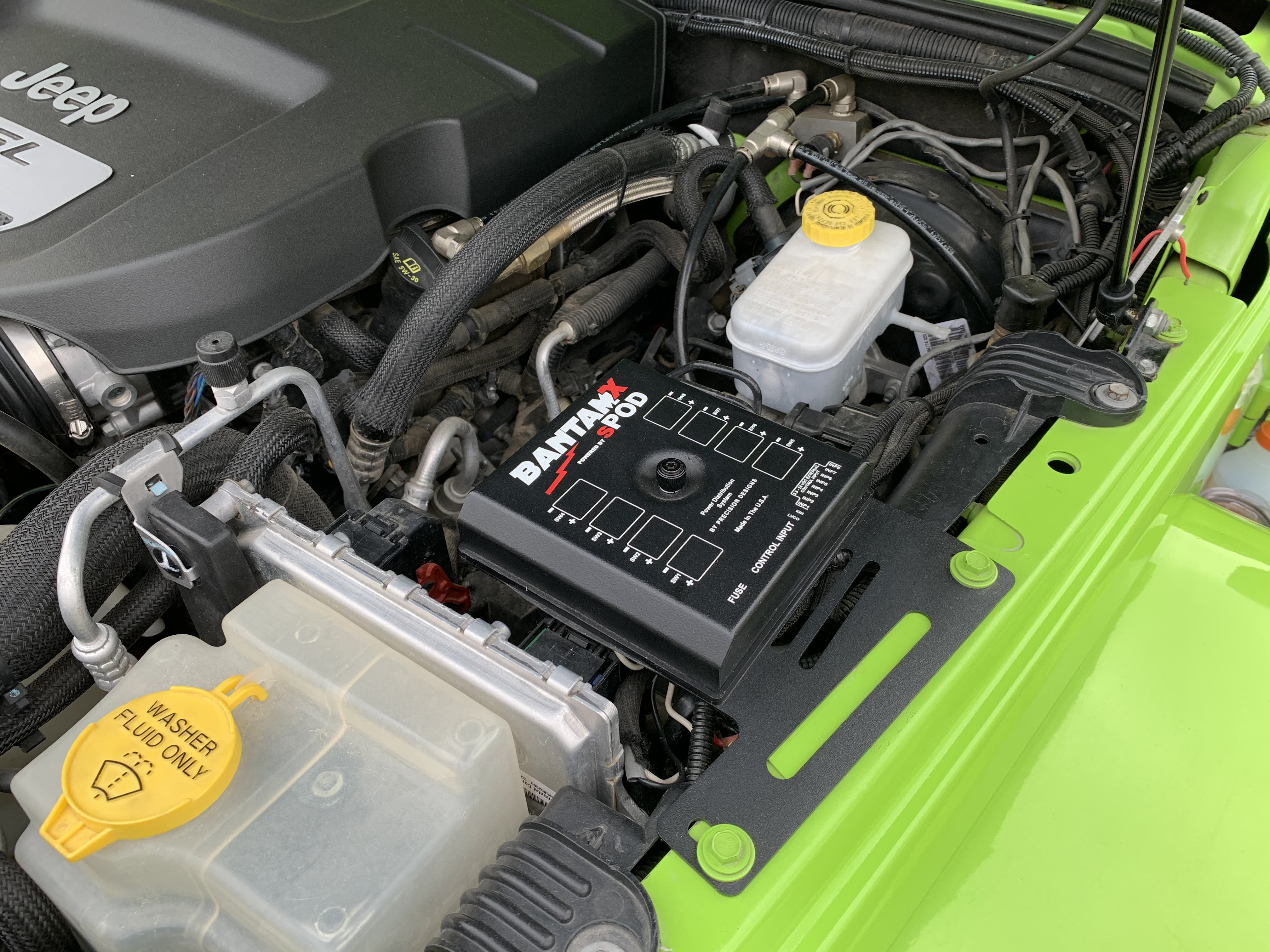

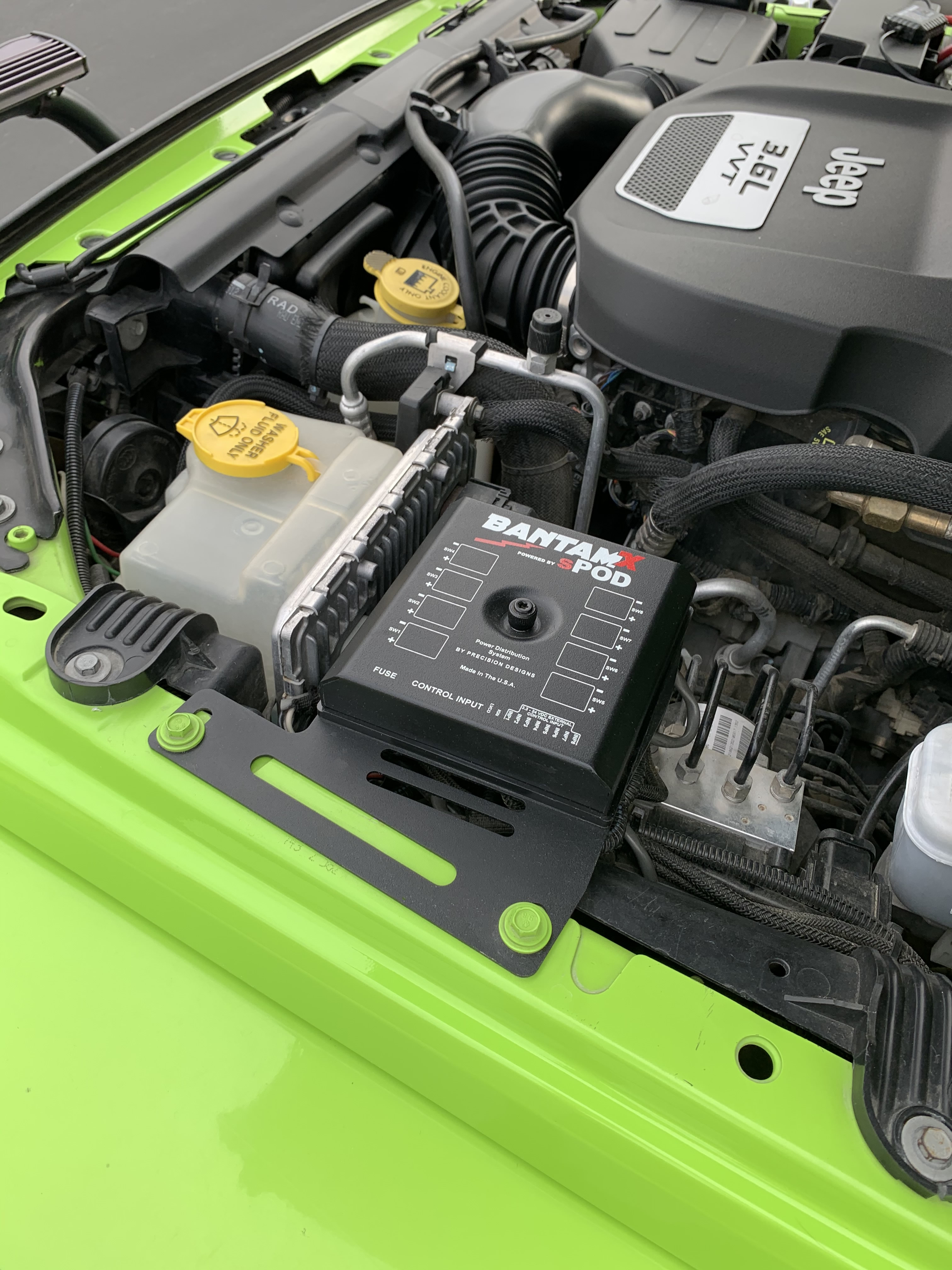

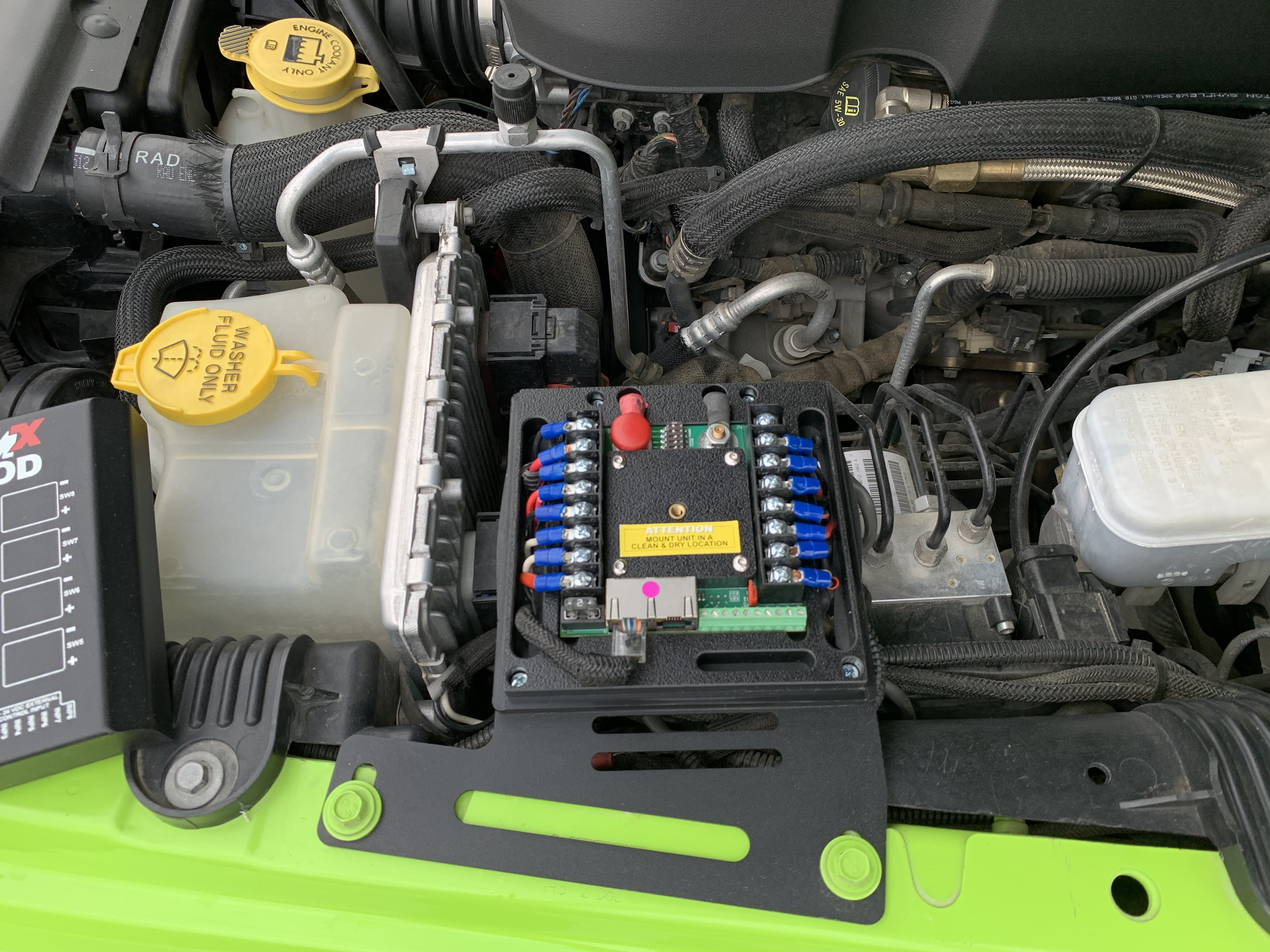

• Vehicle-specific mounting designed for 2007-2008 Jeep Wrangler JK

The BantamX system is compatible with external controllers including third-party switches, Arduino, Raspberry Pi, Alpine Audio KAC-001 head units, and various sensors. This versatile system provides professional-grade power distribution and control for rock lights, light bars, air compressors, winches, and virtually any 12V/24V accessory.
