sPOD 870070 BantamX 8-Circuit Switch Panel Green LED Jeep JK 2007-2008

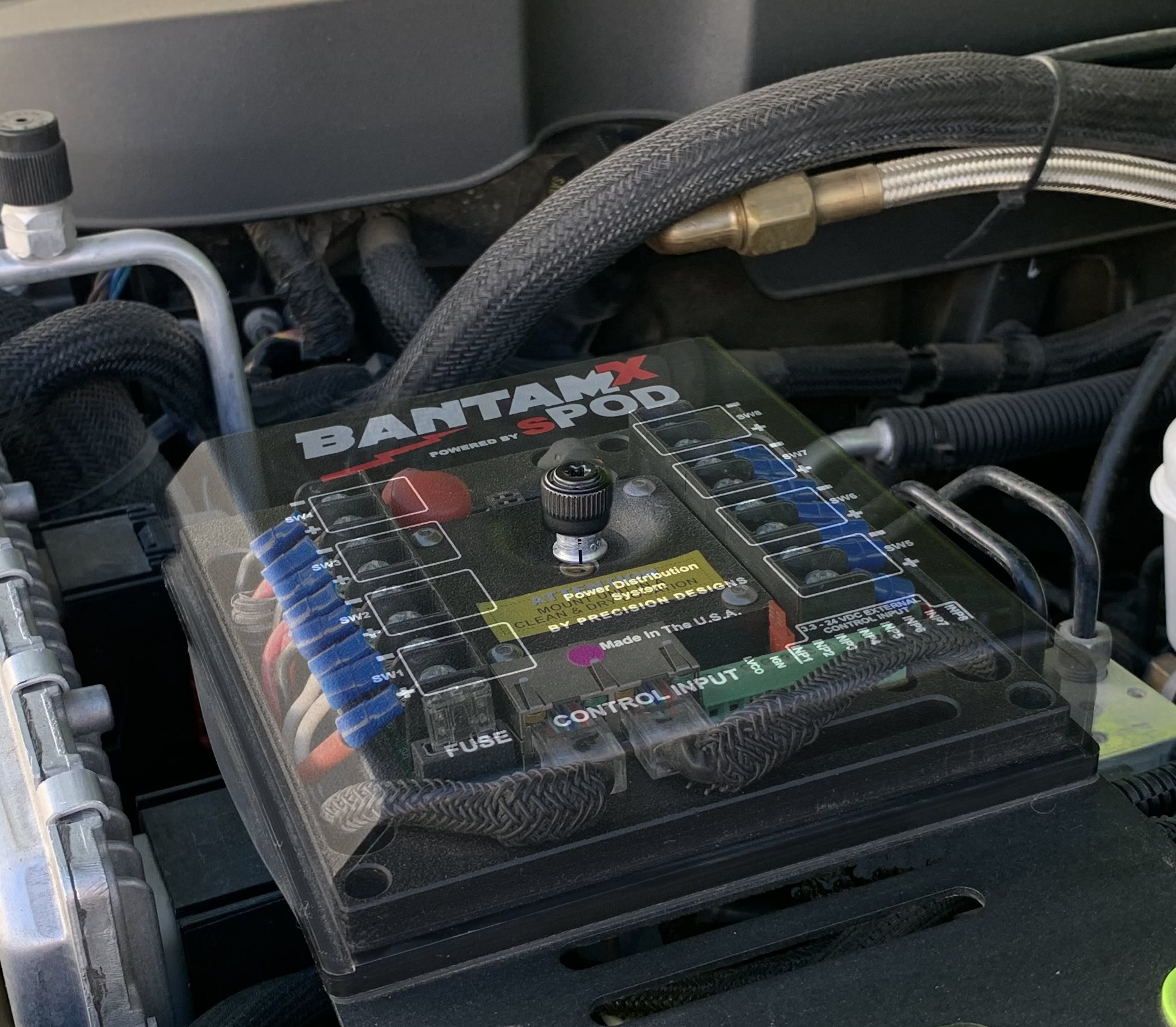

The sPOD BantamX is a compact, fully programmable 8-circuit power distribution system designed to simplify aftermarket accessory installation in your 2007-2008 Jeep Wrangler JK. This intelligent control system eliminates hours of complex wiring by using a single Ethernet cable connection to the cab, providing a clean and professional installation without cutting, splicing, or tapping into your vehicle's factory electrical system.

Control System Features:

• 8 circuits rated at 30 amps at 12.5 VDC per circuit (expandable)
• Current-sensing MOSFETs controlled by microprocessor—no traditional fuses or relays needed
• Failsafe self-healing fault protection system (1.5 to 30 amps)
• Integrated low voltage cutoff (LVCO) battery protection with optional override
• 50-amp auto-resetting circuit breaker

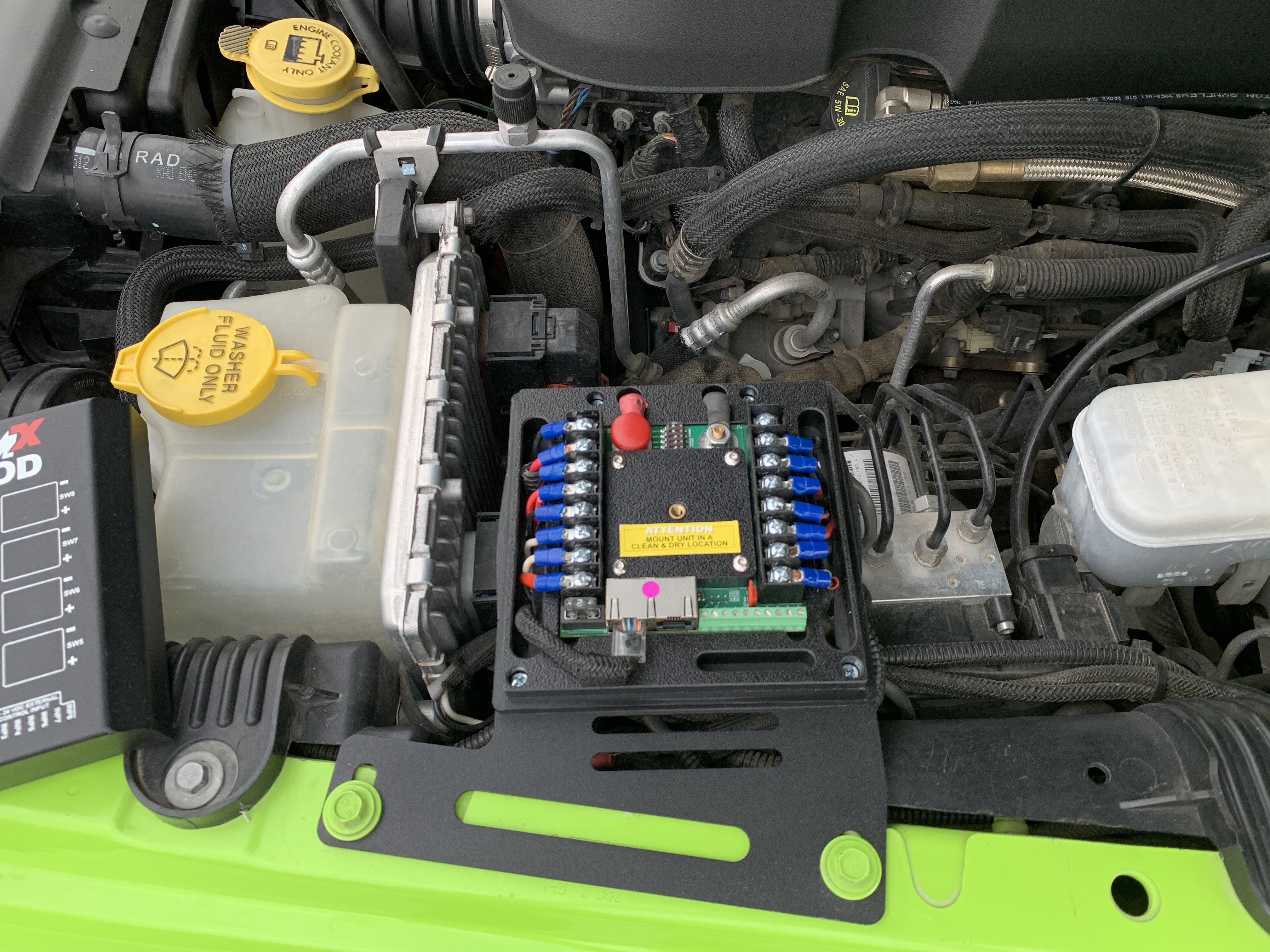

• 16-position terminal block for easy accessory connections
• 8-position input terminal block for controlling outputs
• Operates on 12VDC or 24VDC systems
• Built-in Bluetooth for wireless control via smartphone
• Comprehensive protection: overheating, over-current, shorts, reverse polarity, and field collapse
• Up to 4 BantamX units can be daisy-chained and controlled by one touchscreen
• On-demand wireless software updates

Hardware Construction:

• Powder-coated steel base with integrated mounting hardware
• Aluminum lid with silicone weatherproof gasket
• Robust insulated base and cover
• Nylon-braided battery cables with high-strand crosslinked copper wire and silicone jacket

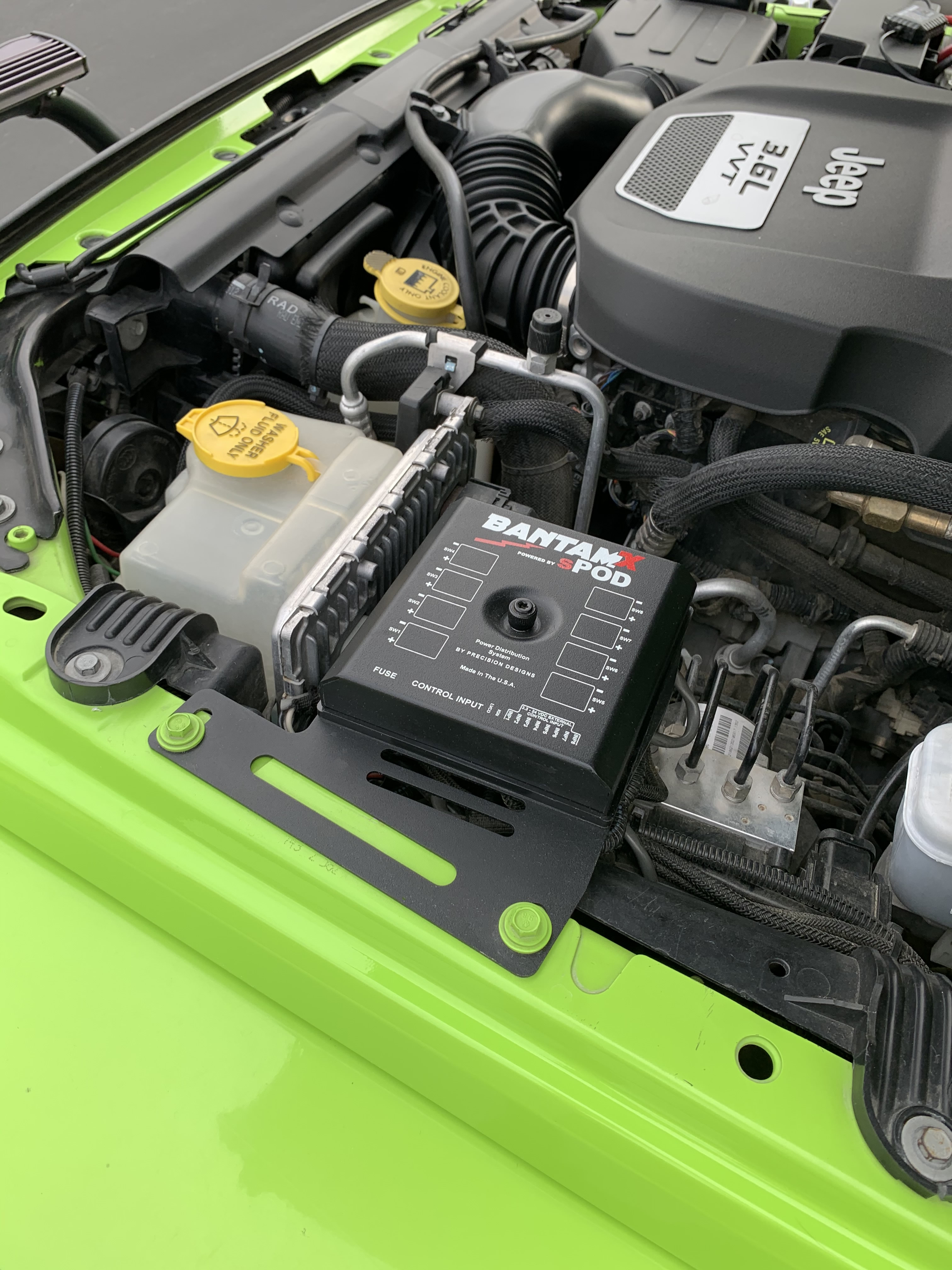

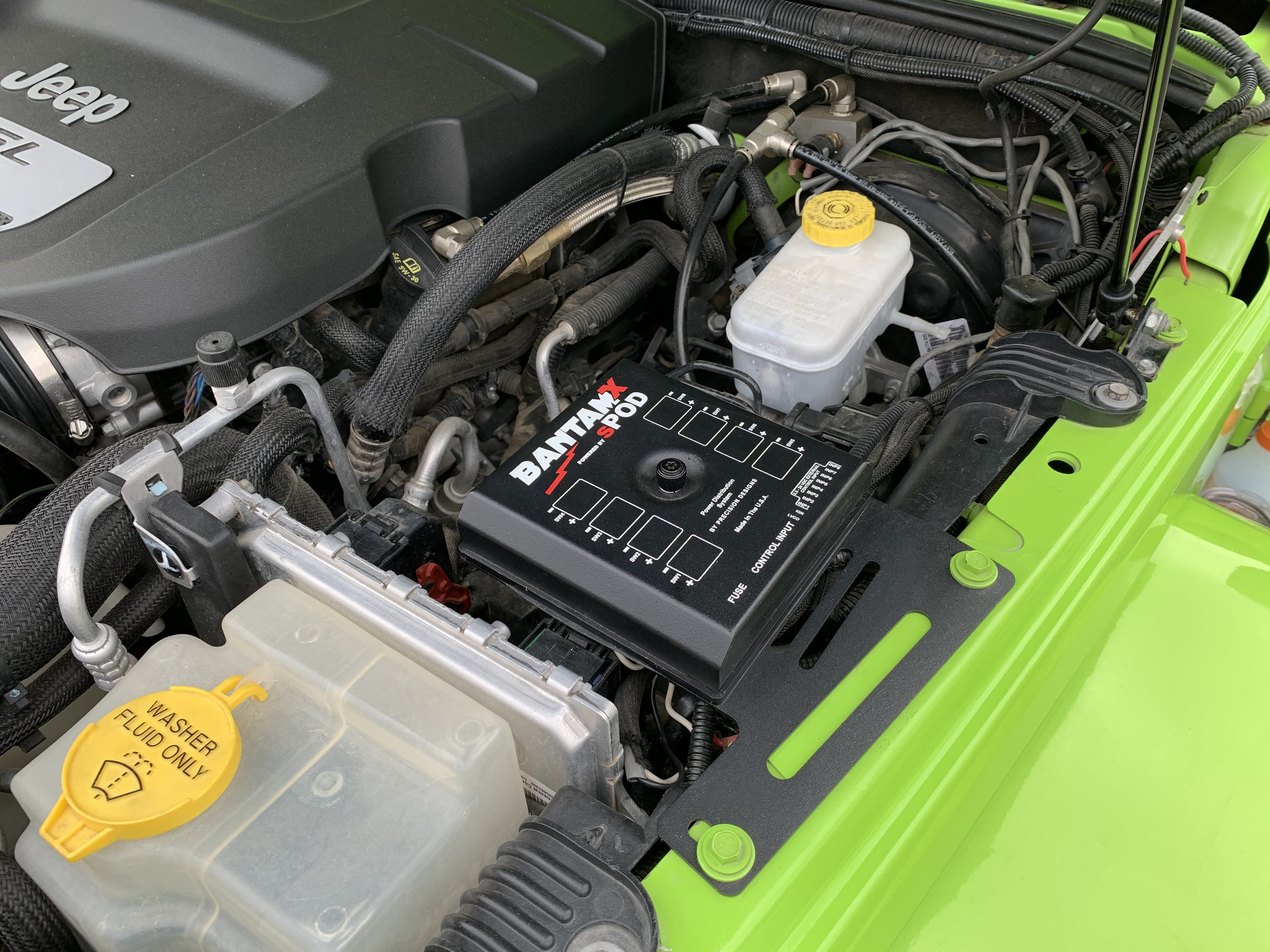

• Vehicle-specific mounting designed for Jeep JK applications
• Compact footprint allows flexible mounting locations

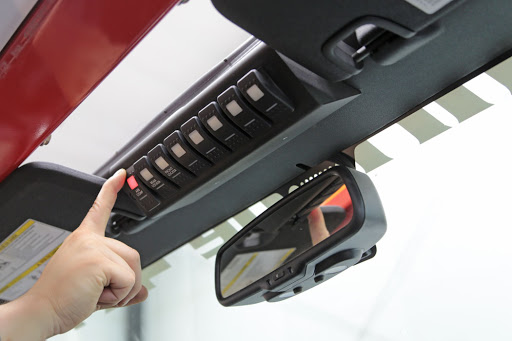

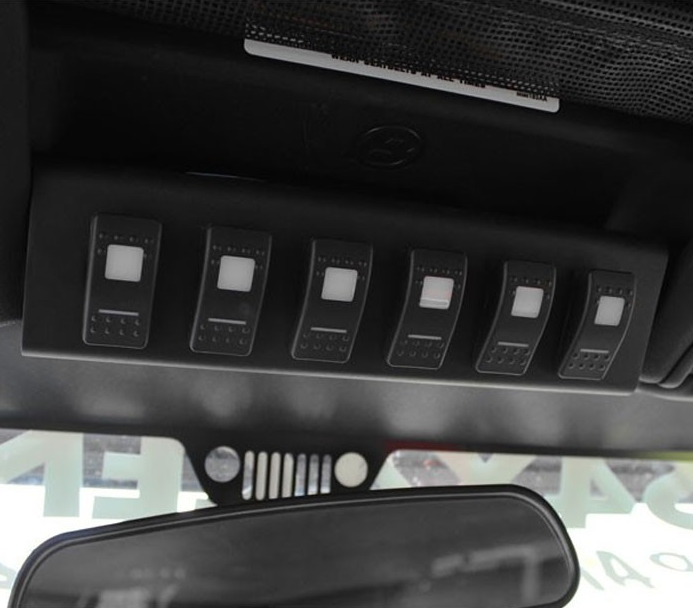

Included Switch Panel:

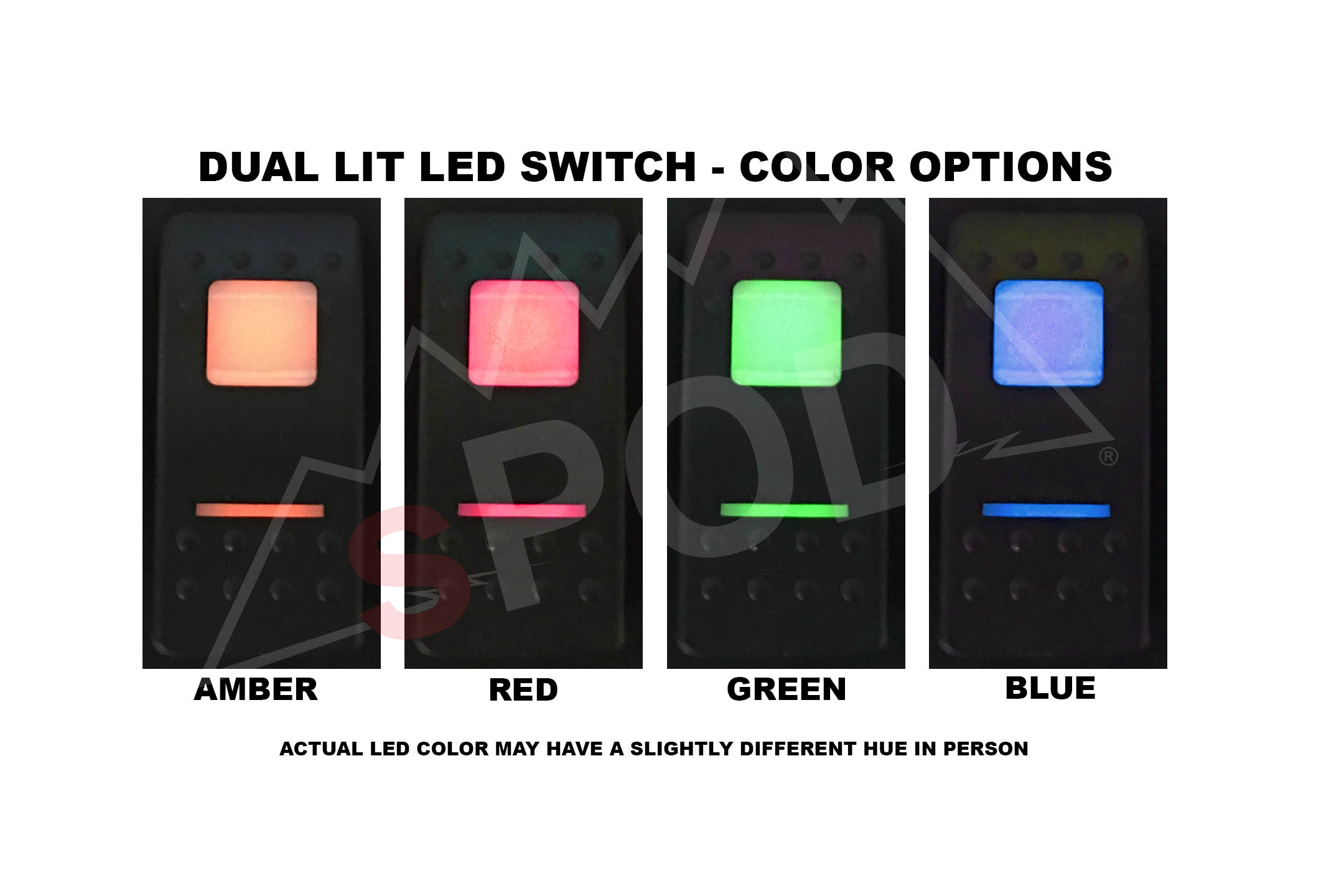

• Eight dual-lit Carling Technologies Contura switches with green LEDs (pre-installed and pre-wired)
• IP66/68 certified switches rated for marine and harsh environments
• Controlled lower pilot lights with push-button operation
• Formed, welded, and powder-coated aluminum panel construction
• High-temp abrasion-resistant nylon braided wire sleeving
• 10-foot CAT-6 Ethernet cable included (extendable up to 25 feet)
• Two RJ45 ports integrated into CAN-Bus controller
• Auto-safe system shutdown when panel is unplugged
• Compatible with additional panels for remote operations

Programmable Functions (via sPOD Mobile App):

• Dimming control for compatible lighting
• Strobe and flash patterns (two programmable modes per switch)
• Momentary operation
• Switch linking capabilities
• On-road and off-road operating modes
• Ignition control and safety lockout for switches 1 and 2

Pro-Series App Features (optional upgrade):

• Circuit timers and switch lockout
• 65-amp initial startup current for 5 seconds per circuit
• Always-on circuit programming with fault protection
• Programmable current limiting in 2-amp increments up to 30 amps
• Selectable auto-restart after overcurrent/short shutdown
• Programmable ignition control for all 8 circuits
• Variable strobe function for custom flash patterns
• Deep sleep mode disable option

External Control Compatibility:

The BantamX system can integrate with third-party switches, Arduino, Raspberry Pi, Alpine KAC-001 head units, and various sensors including thermostats, pressure switches, and fan controllers.

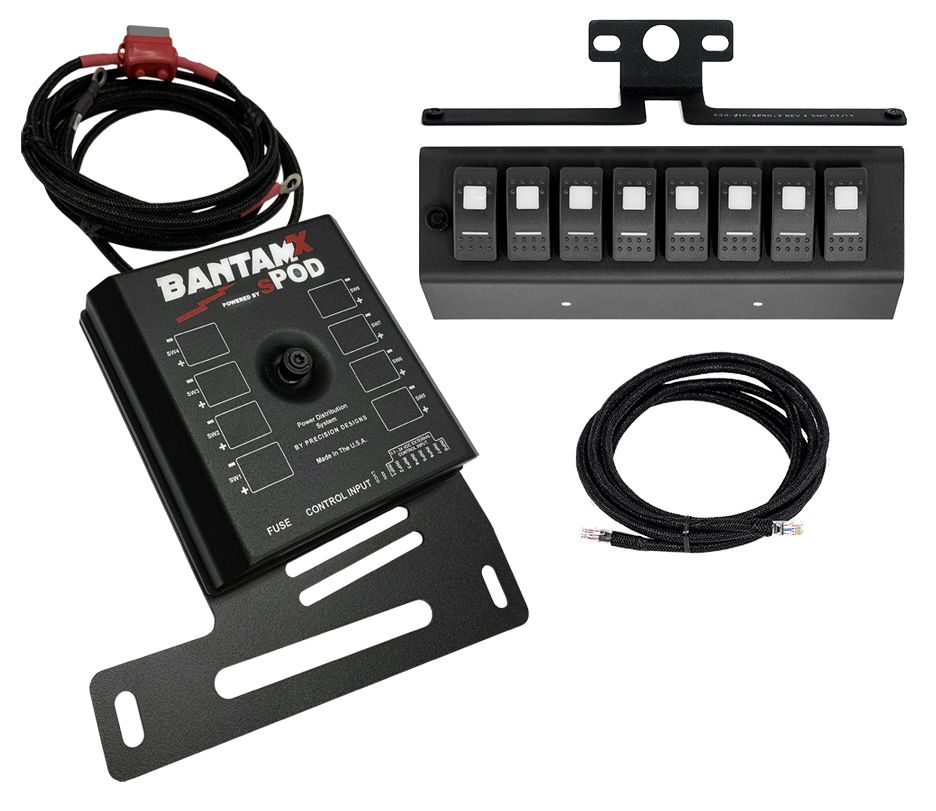

This complete kit includes the BantamX control unit, pre-wired 8-switch green LED panel, mounting hardware, and Ethernet cable—everything needed for a professional power distribution installation in your 2007-2008 Jeep Wrangler JK.
