sPOD 870050 BantamX 8-Circuit Switch Panel with Amber LED for Jeep JK 2007-2008

(2007-2008 Jeep Wrangler)

Manufacturer

Part Number

870050
Sale Price

$898.95

Estimated ship date Saturday, November 28

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

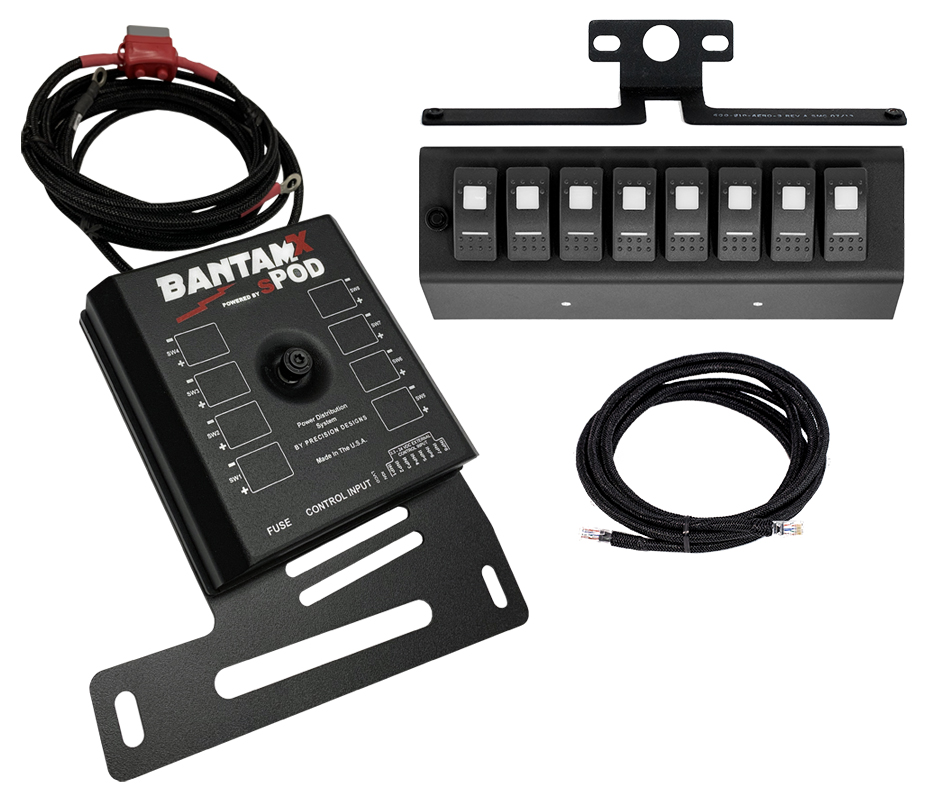

The sPOD BantamX is a compact, programmable 8-circuit control system designed to simplify aftermarket accessory wiring in your Jeep Wrangler JK. This intelligent power distribution system eliminates hours of traditional wiring by using a single ethernet cable connection to the cab, providing clean installation without cutting, splicing, or tapping into your vehicle's factory electrical system.

Control System Features:

  • 8 circuits rated at 30 amps per circuit at 12.5 VDC (expandable system)
  • Current-sensing MOSFETs controlled by microprocessor—no fuses or relays to replace
  • Failsafe self-healing fault protection system (1.5 to 30 amps)
  • Built-in Bluetooth capabilities for remote control via smartphone
  • Integrated low voltage cutoff (LVCO) battery protection with optional override
  • 50-amp auto-resetting circuit breaker for main power protection

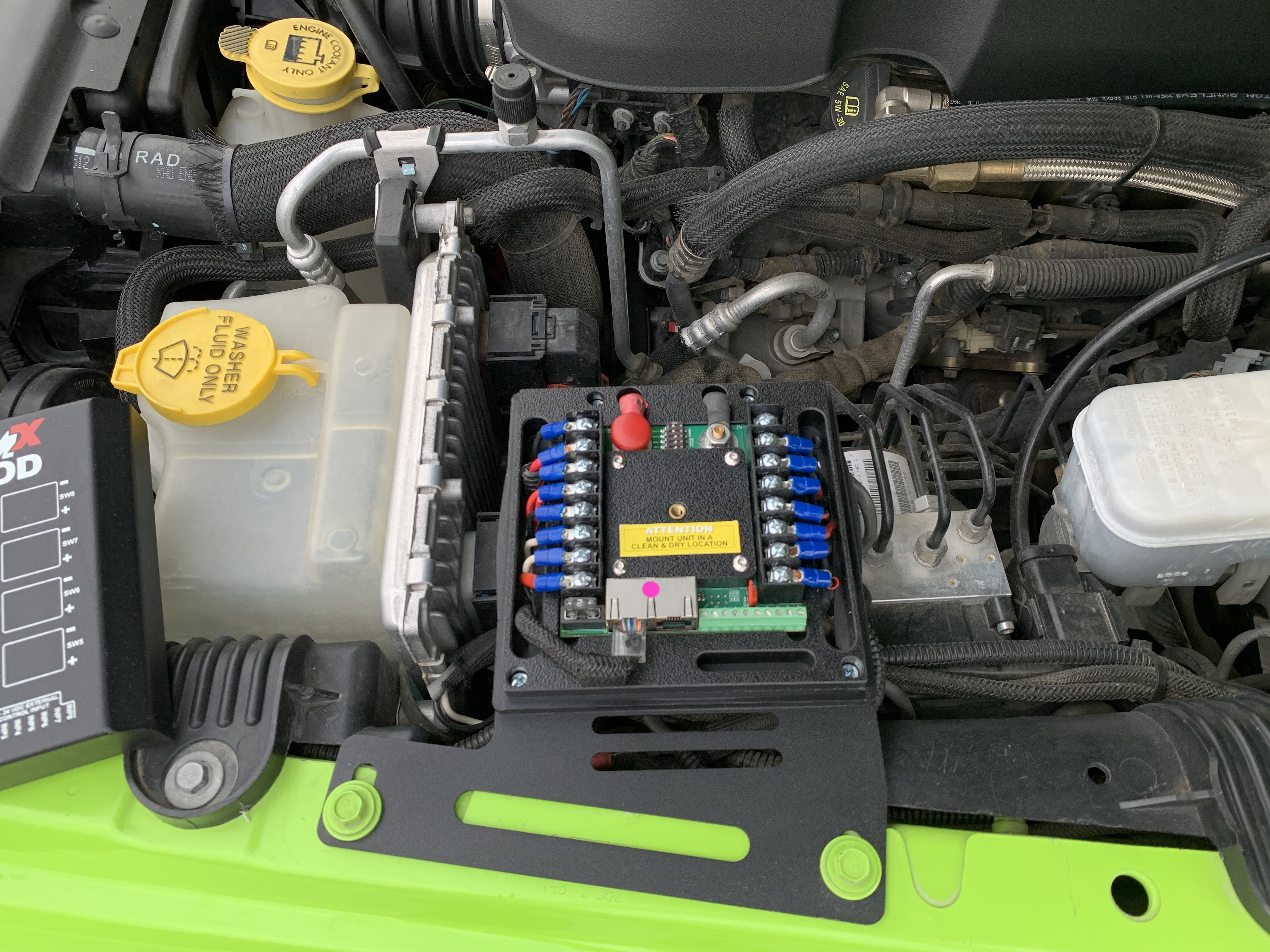

  • 16-position terminal block for easy accessory connections
  • Dual RJ45 controller ports for ethernet cable connections
  • Compatible with both 12VDC and 24VDC systems
  • Protection against overheating, over-current, shorts, reverse polarity, and field collapse
  • Up to 4 BantamX units can be daisy-chained and controlled by one touchscreen
  • On-demand wireless software updates and upgrades

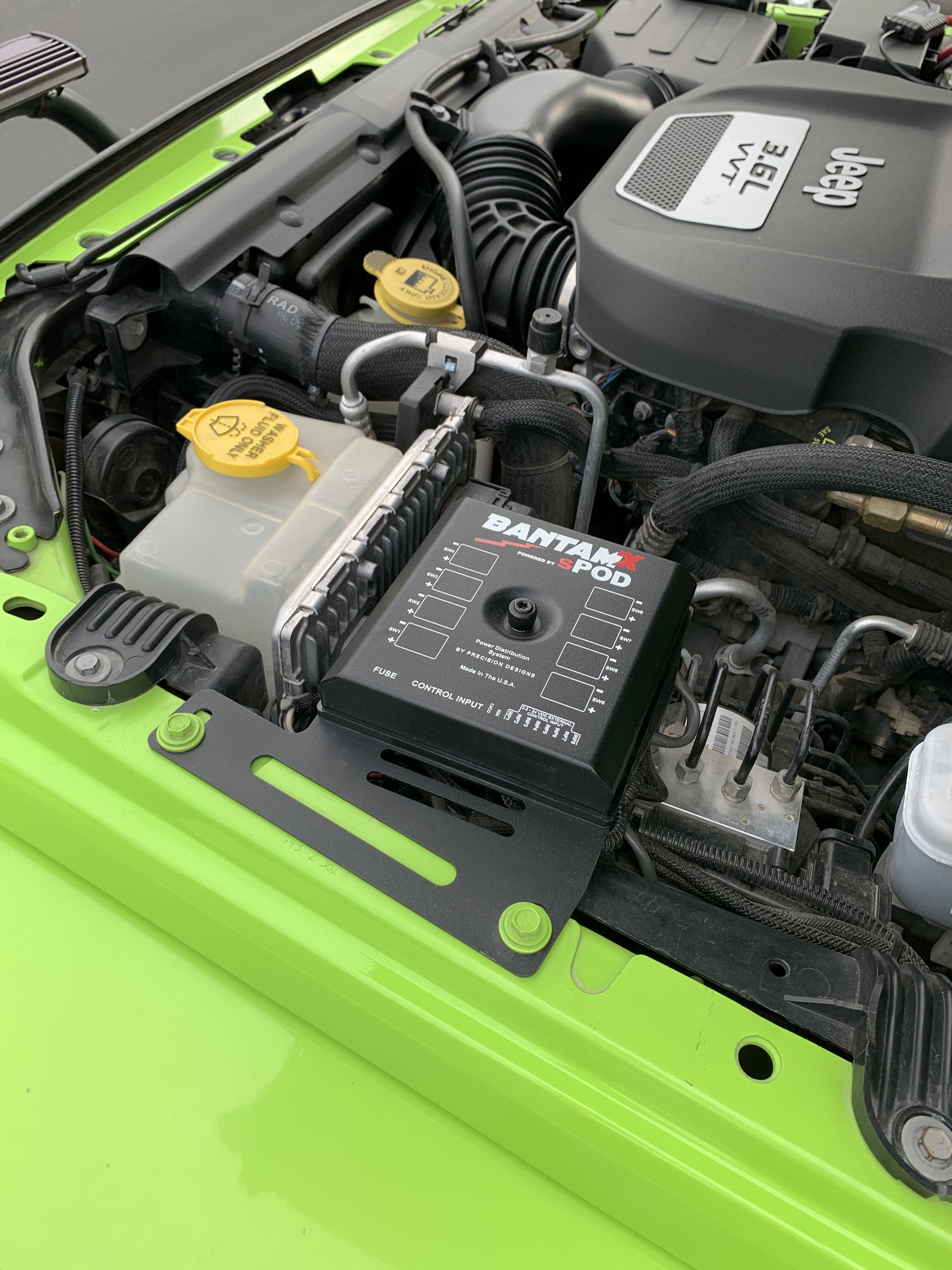

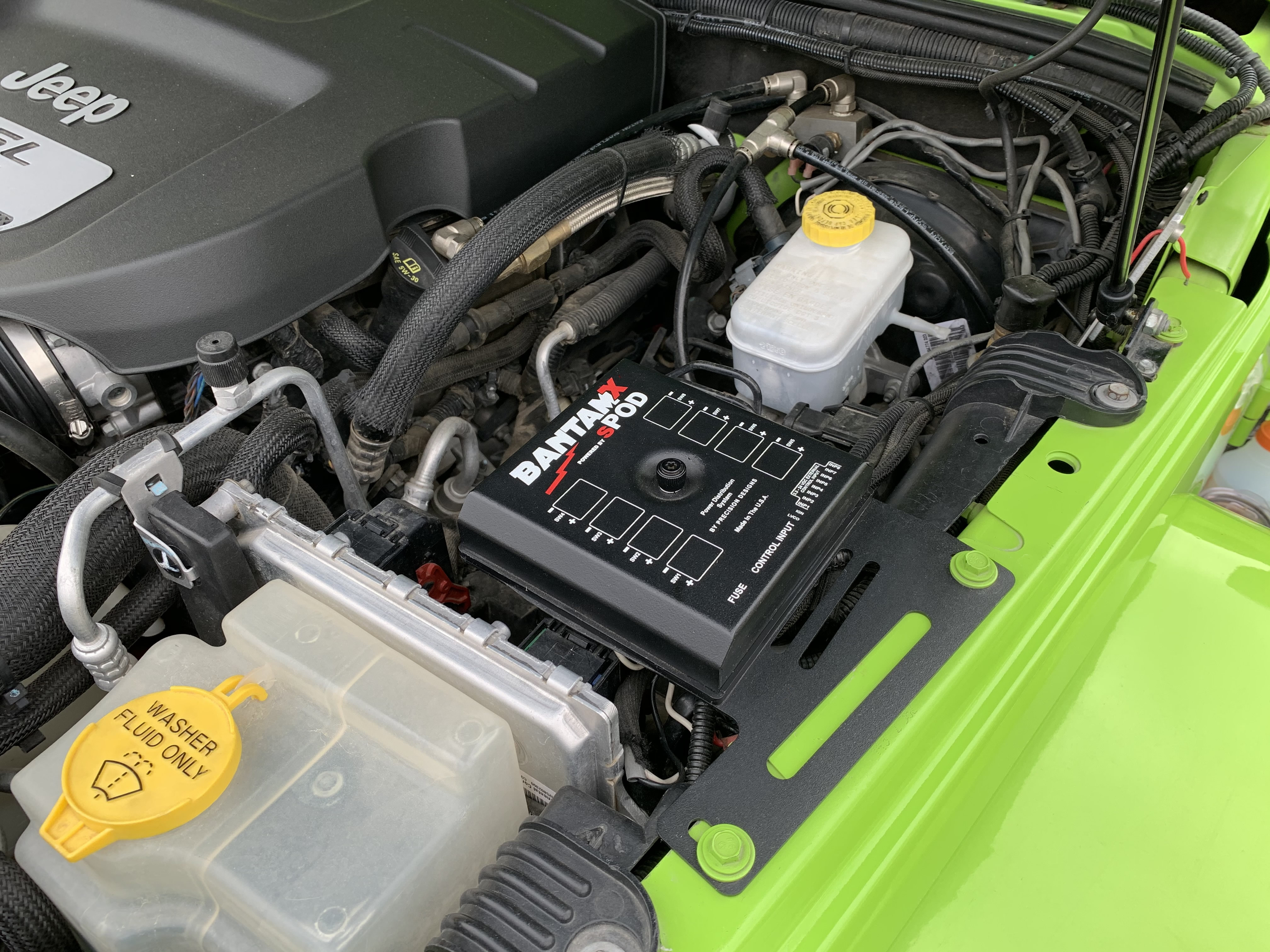

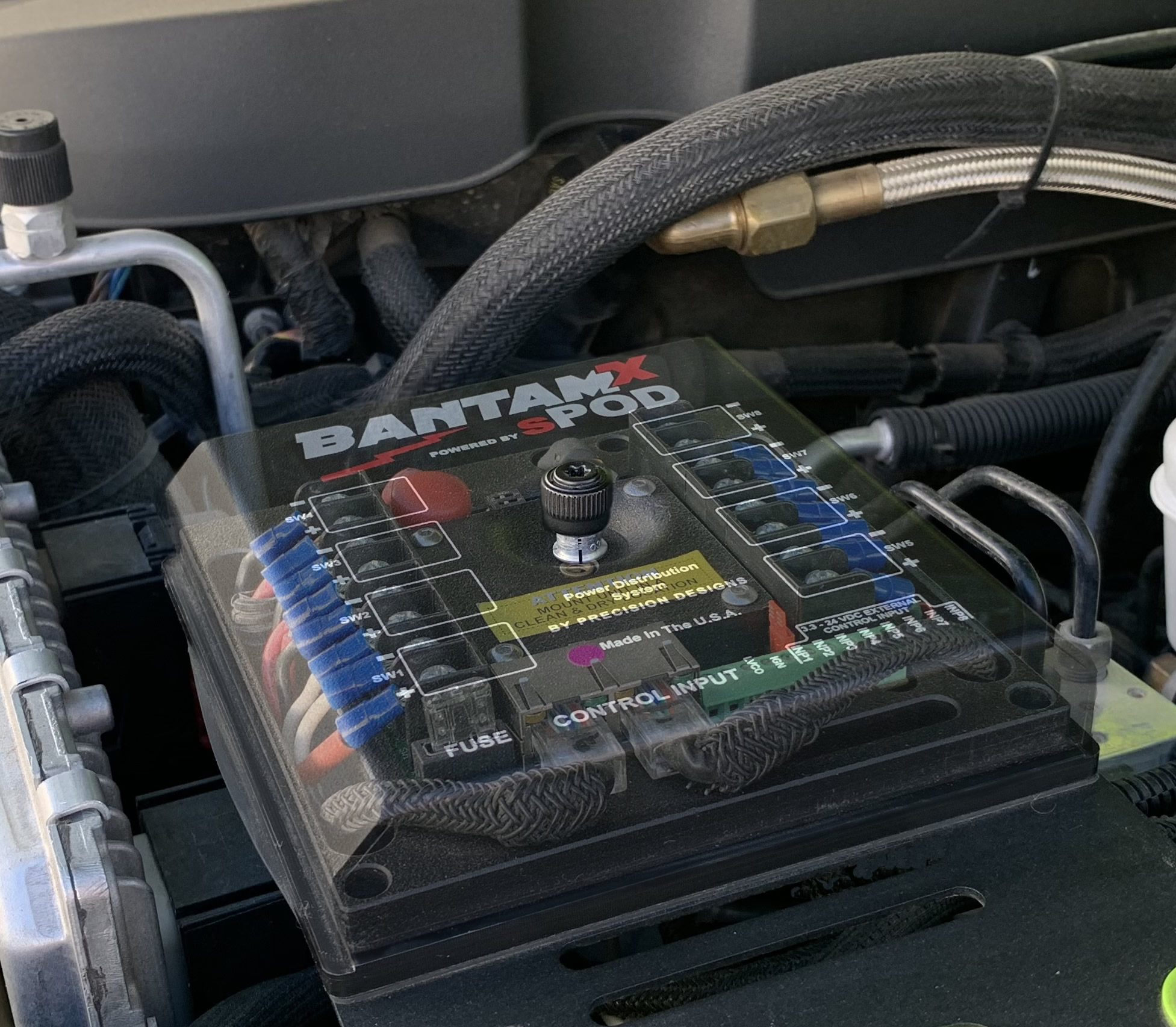

Rugged Construction:

  • Powder-coated steel base with integrated mounting hardware
  • Aluminum lid with silicone gasket for weatherproofing
  • Robust insulated base and cover design
  • Nylon braided battery cables with hi-strand crosslinked copper wire and silicone jacket
  • Compact footprint allows flexible mounting locations

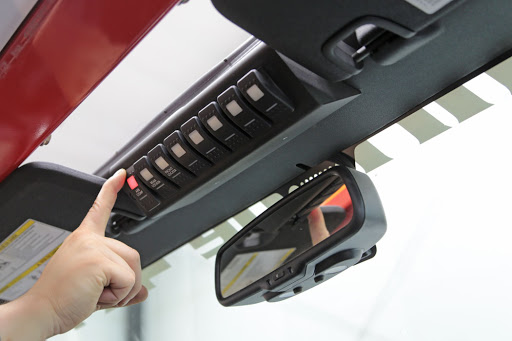

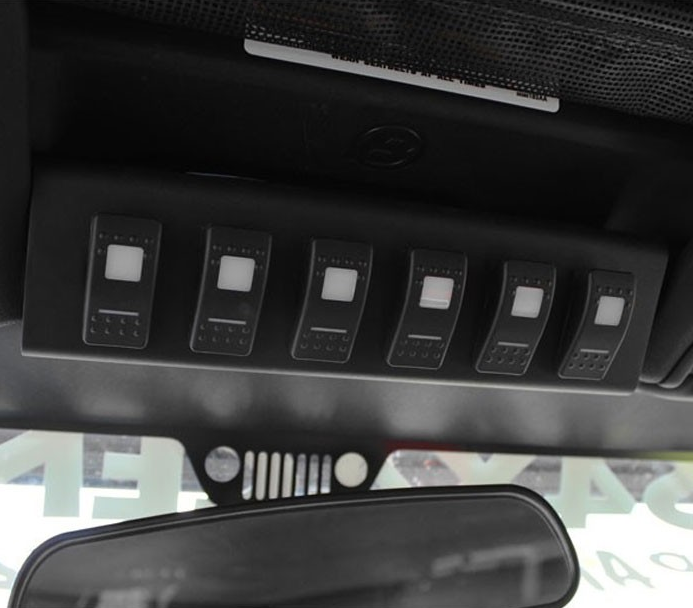

Included Switch Panel:

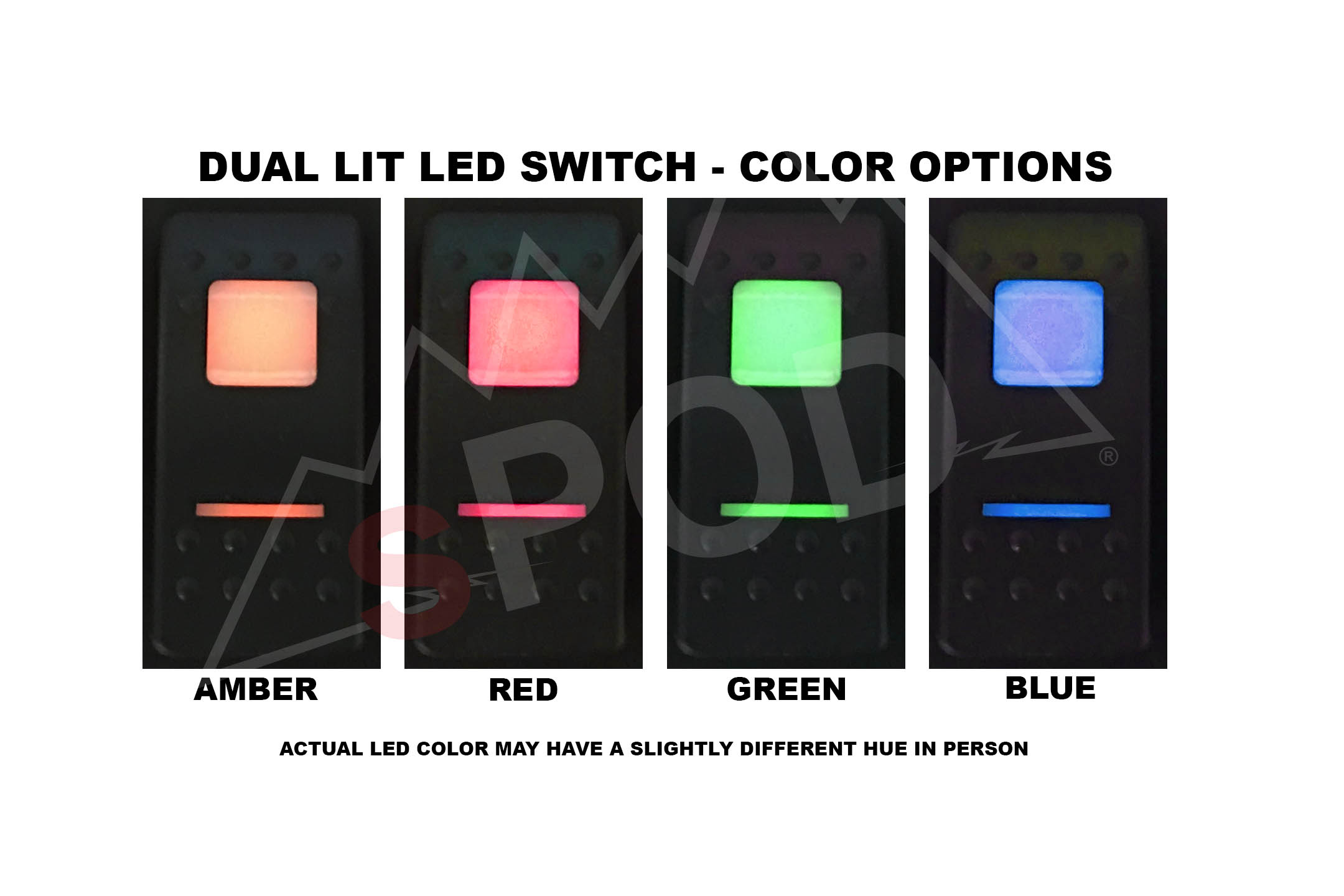

  • Eight dual-lit Carling Technologies Contura LED switches in Amber (IP66/68 rated for marine/harsh environments)
  • Pre-wired and installed on powder-coated aluminum panel
  • 10-foot CAT-6 ethernet cable included (extendable up to 25 feet)
  • High-temp abrasion-resistant nylon braided wire sleeving
  • Controlled lower pilot lights with push-button operation
  • Auto-safe system shutdown when panel is disconnected
  • Ability to daisy-chain multiple panels for remote operations
  • Two integrated RJ45 ports on CAN-Bus controller

Programmable Functions via sPOD Mobile App (Free):

  • Dimming control for each circuit
  • Strobe and flash patterns (2 modes per switch)
  • Momentary operation
  • Switch linking capabilities
  • On-road and off-road mode switching

Advanced Pro-Series App Features (Optional Purchase):

  • Circuit timers and switch lockout
  • 65-amp initial startup current for 5 seconds
  • Always-on circuit programming with fault protection
  • Programmable current limiting in 2-amp increments
  • Variable strobe function for custom patterns
  • Selectable auto-restart after fault conditions
  • Programmable ignition control for all 8 circuits
  • Deep sleep mode disable option

External Control Compatibility:

  • Third-party switches and sensors
  • Arduino and Raspberry Pi integration
  • Alpine Audio KAC-001 head unit controller
  • Pressure switches, thermostats, and fan controllers

Application: Direct fit for 2007-2008 Jeep Wrangler JK with vehicle-specific mounting hardware included.

Products specifications

Fits

2007-2008 Jeep Wrangler

Prop 65

Prop 65 WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Color

Amber

Product Fitment

Universal

Sold As

Each

Finish

Powdercoat

Switch color

Amber

Built-in bluetooth

Yes

Includes switches

Yes

Hardware Included

Yes
