Metra 109-UN02 Universal Floating Mount Kit for Pioneer 9-Inch Radios

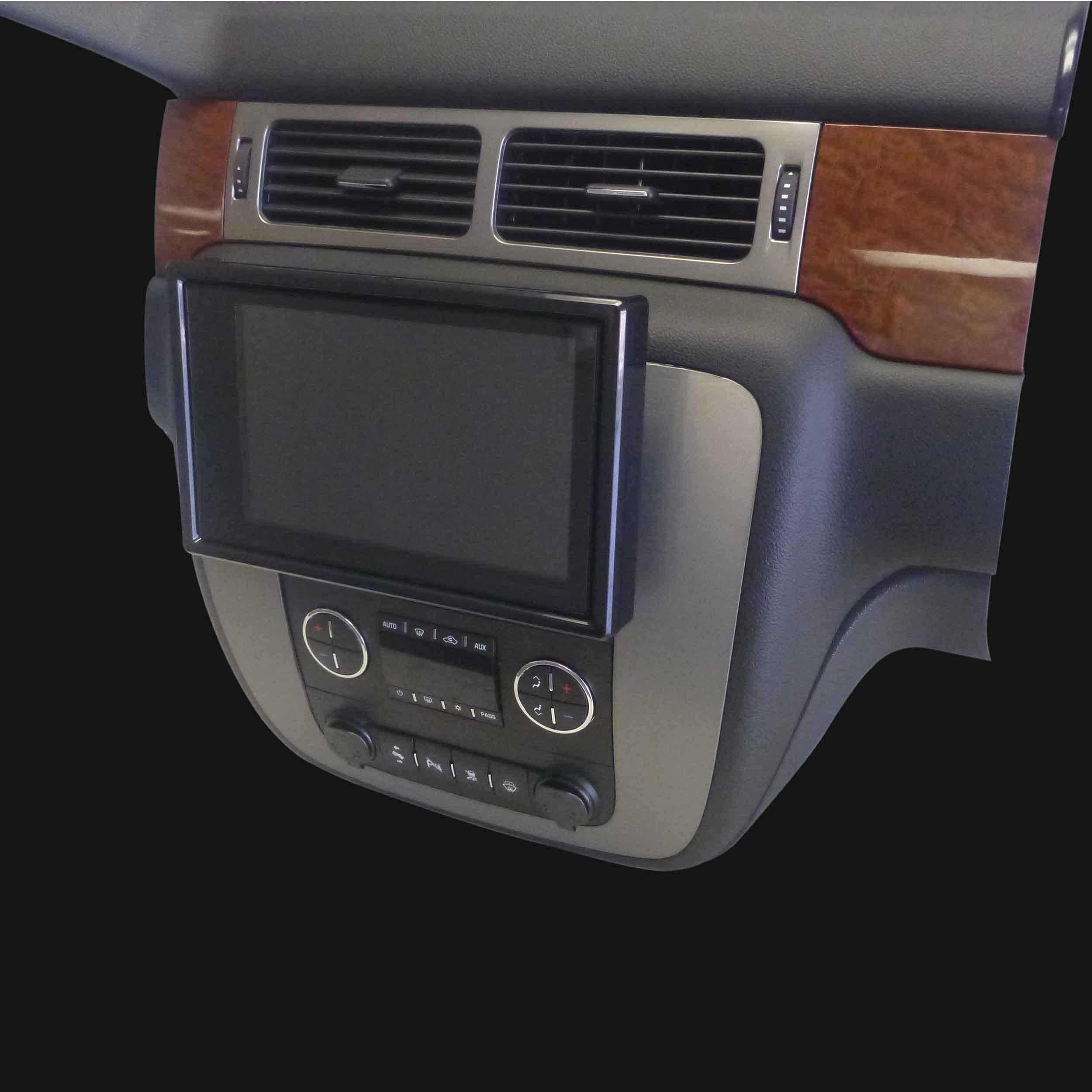

The Metra 109-UN02 is a universal floating mount kit engineered exclusively for Pioneer's 9-inch Modular Solutions Receiver (DMH-WC6600NEX). This innovative mounting solution allows you to install a Pioneer 9-inch touchscreen display in virtually any vehicle by using a unique "floating" design that positions the screen in front of your vehicle's original radio location.

Key Features:

• Compatible with over 250 existing Metra double-DIN dash kits for 1990 to current vehicle applications
• Complete housing encases the Pioneer 9-inch screen for protection against dust, debris, and impacts
• Patent-pending floating design saves dashboard space and enhances aesthetics

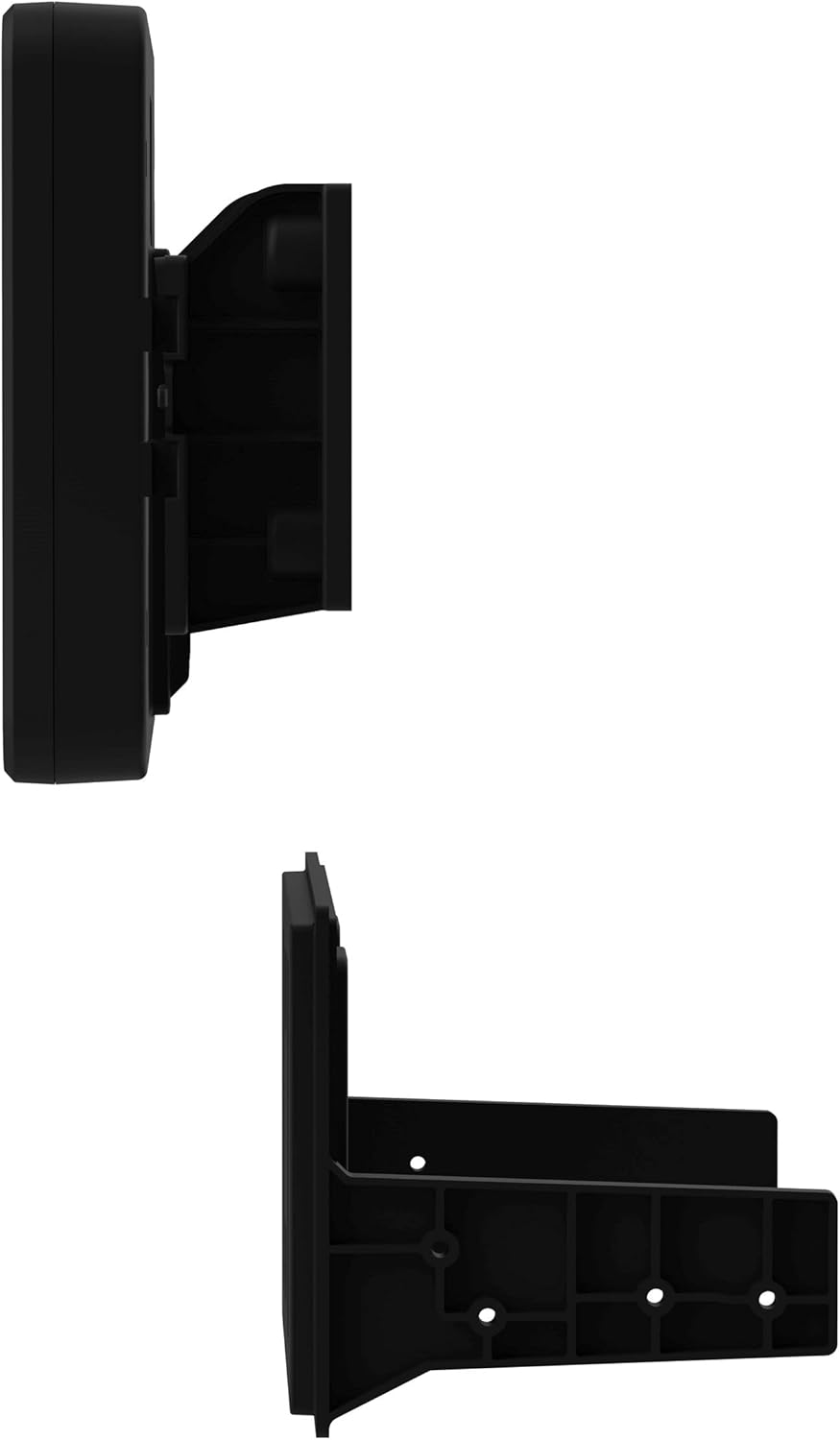

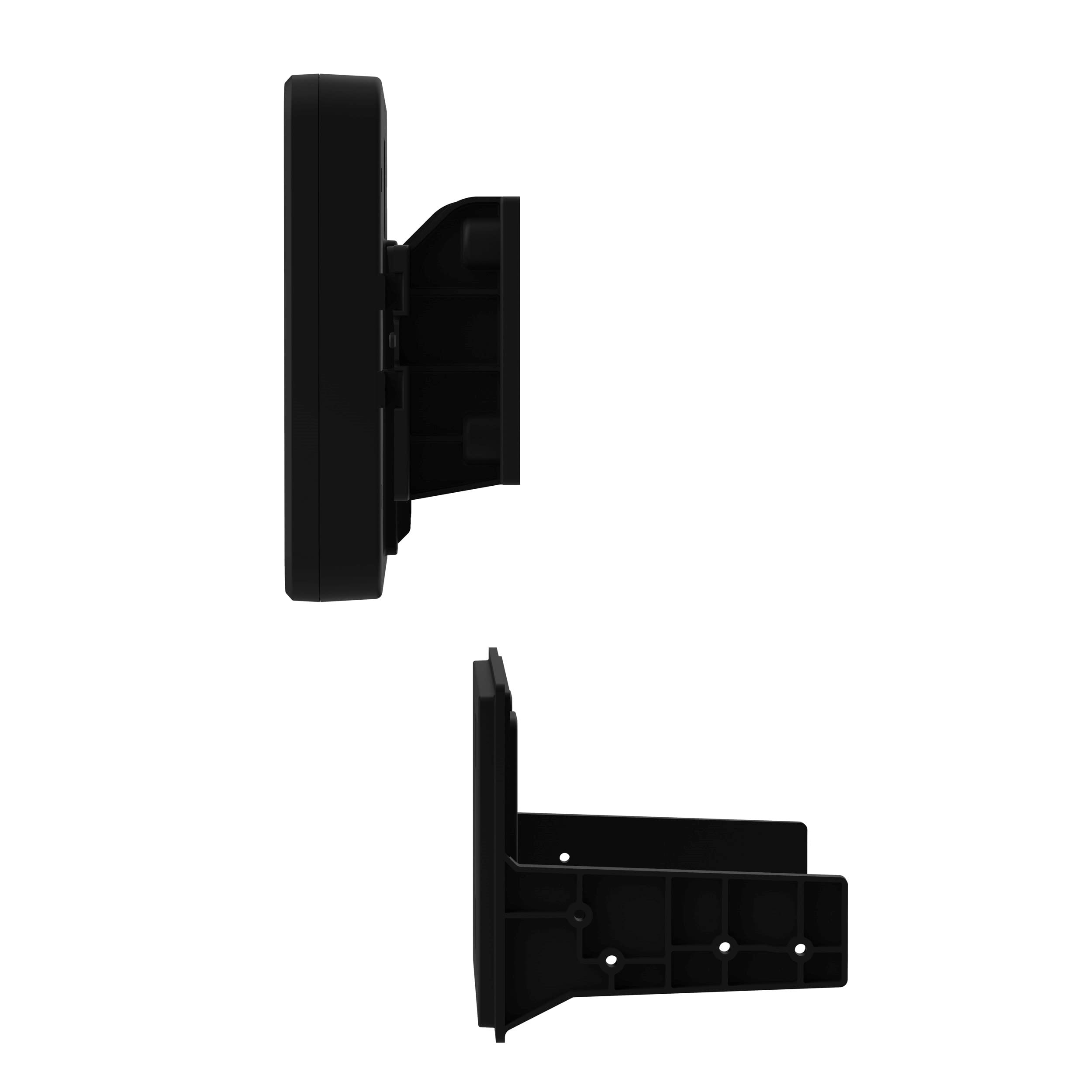

• Includes display brackets with 5-degree angle option to compensate for different dash angles
• Kit can be flipped 180-degrees for installations where upper sub-dash depth is limited
• Adjustable depth mounting for customized fitment

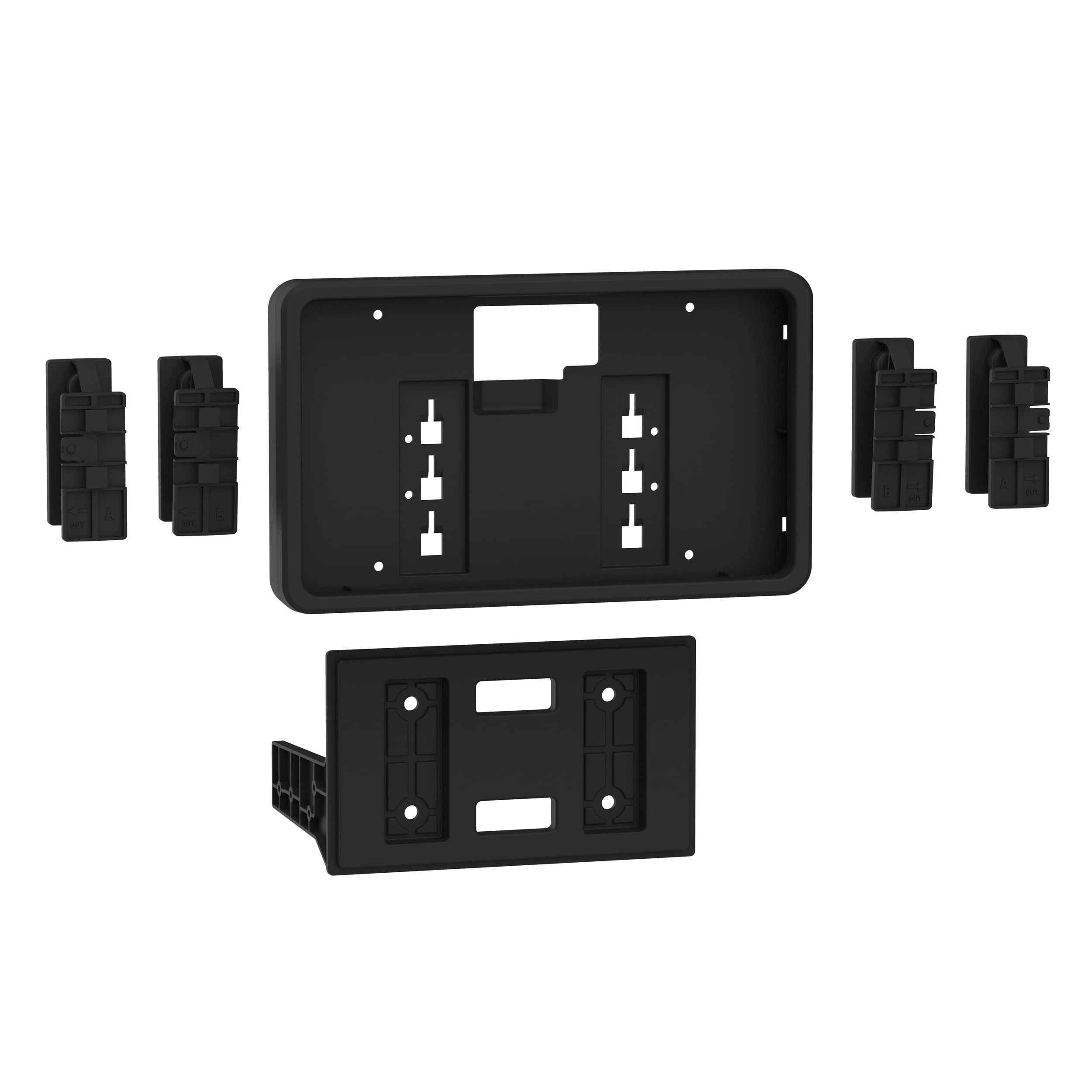

What's Included:

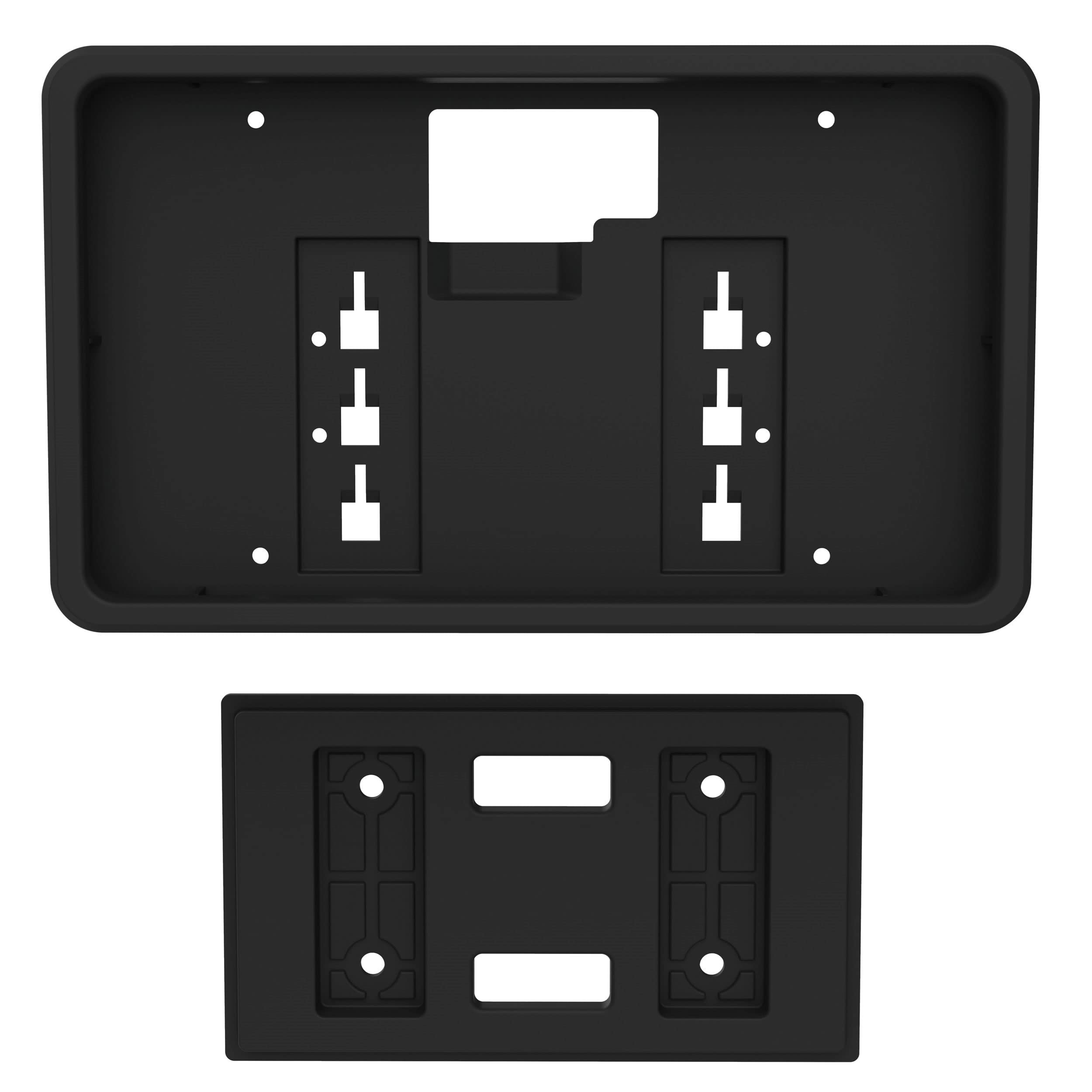

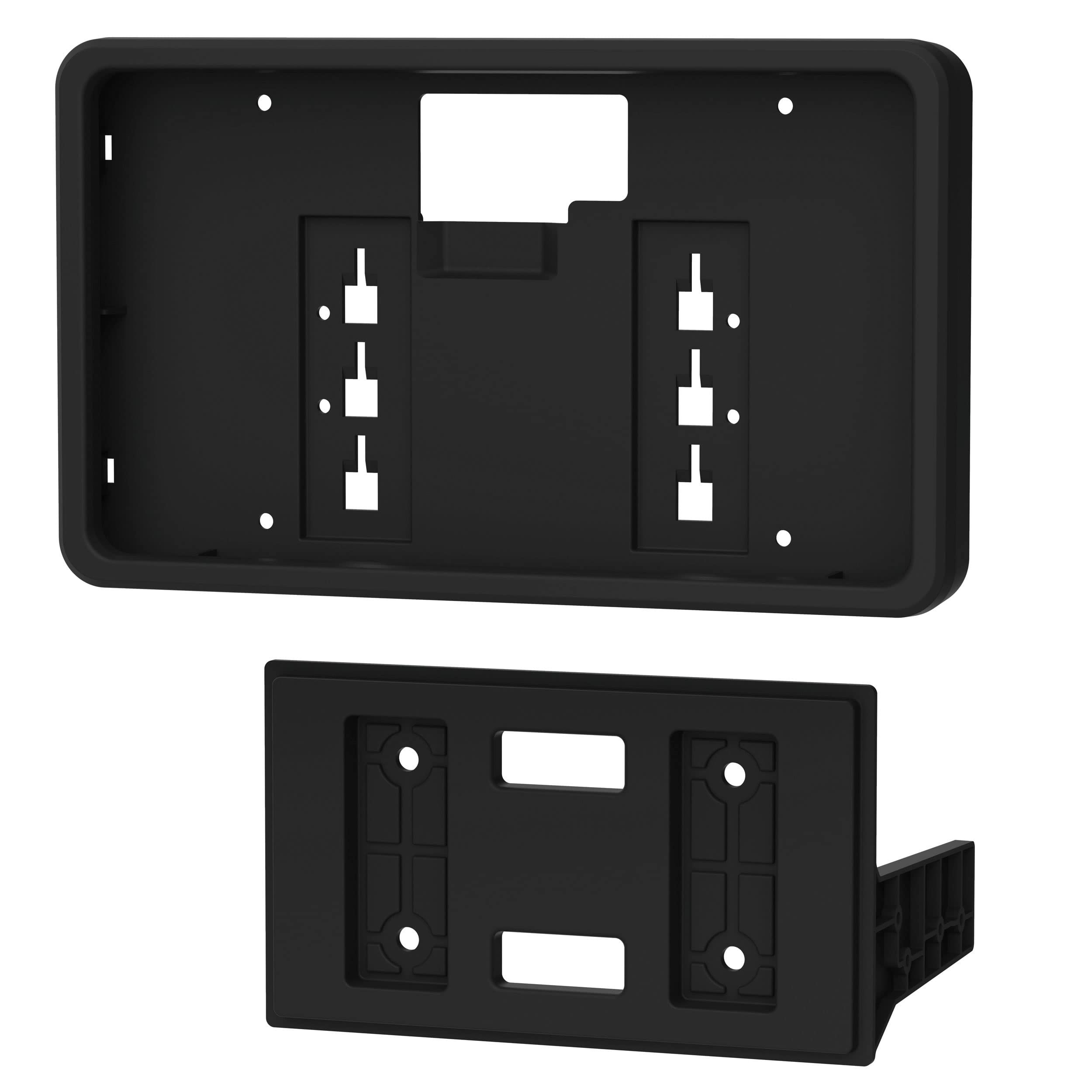

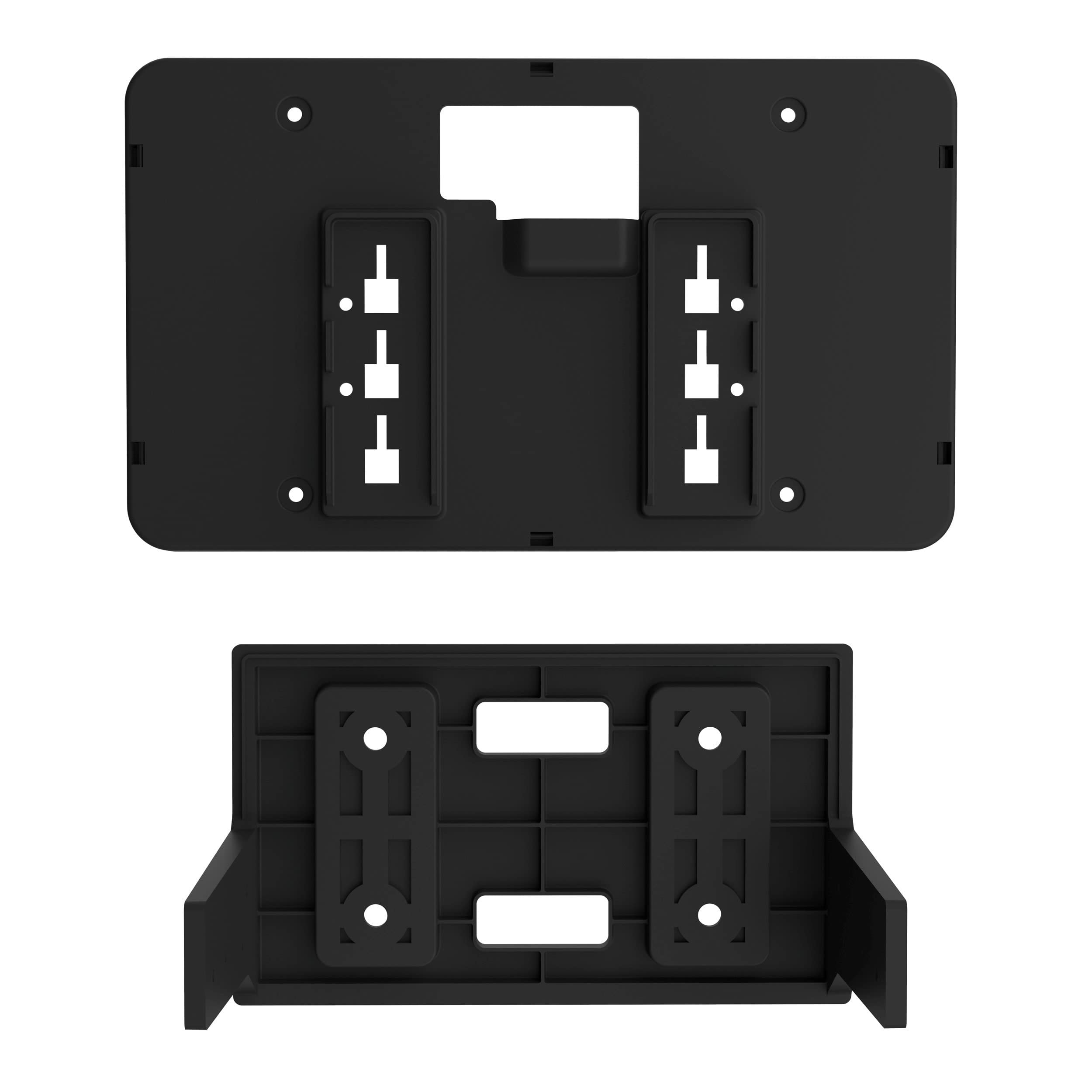

• Assembly mount and display housing
• Display trim ring
• Standard display brackets and 5-degree angled brackets
• Four #8 x 1/2" Phillips screws
• Four 4mm Allen head screws

The 109-UN02 mounts into the lower portion of your Metra dash kit while the DMH-WC6600NEX receiver chassis mounts above. For installations requiring additional cable length, Pioneer's CD-RGB150E RGB extension cable is recommended (sold separately). This kit works with most sedans, SUVs, and trucks equipped with a standard 4-inch tall double-DIN dash opening.
