Tiger Tool 15000 Pin and Bushing Starter Kit Leaf Spring Service Tool

The Tiger Tool 15000 Pin and Bushing Starter Kit is a professional-grade hydraulic tool system designed for removing and installing rubber-isolated and threaded pins and bushings directly on the vehicle without suspension disassembly. This base tool kit is the foundation of Tiger Tool's complete pin and bushing service system, engineered for heavy-duty commercial truck and equipment repair shops.

Key Features:

• 20-ton hydraulic cylinder delivers powerful, controlled pulling force for efficient removal and installation of seized or rusted pins and bushings
• Services pins and bushings while suspension remains on the vehicle—no need to remove spring packs from the axle
• Eliminates time-consuming suspension teardown, reducing shop time by up to 70% compared to traditional methods
• Manufactured from heat-treated alloy steel with black oxide finish for exceptional durability and corrosion resistance
• Nickel-plated inner cylinder provides smooth, quiet hydraulic operation
• Modular system works with over 20 different adapter kits (sold separately) for maximum versatility
• U.S. Patent No. 8627557

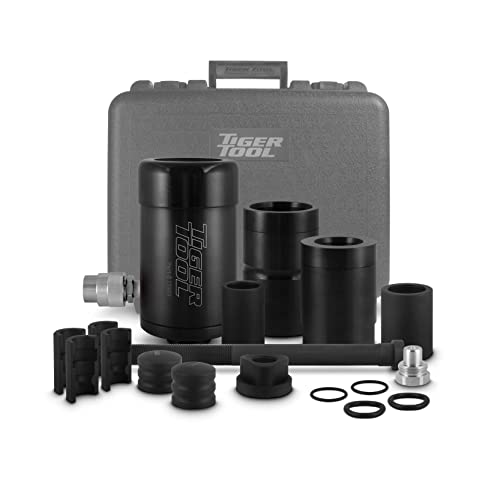

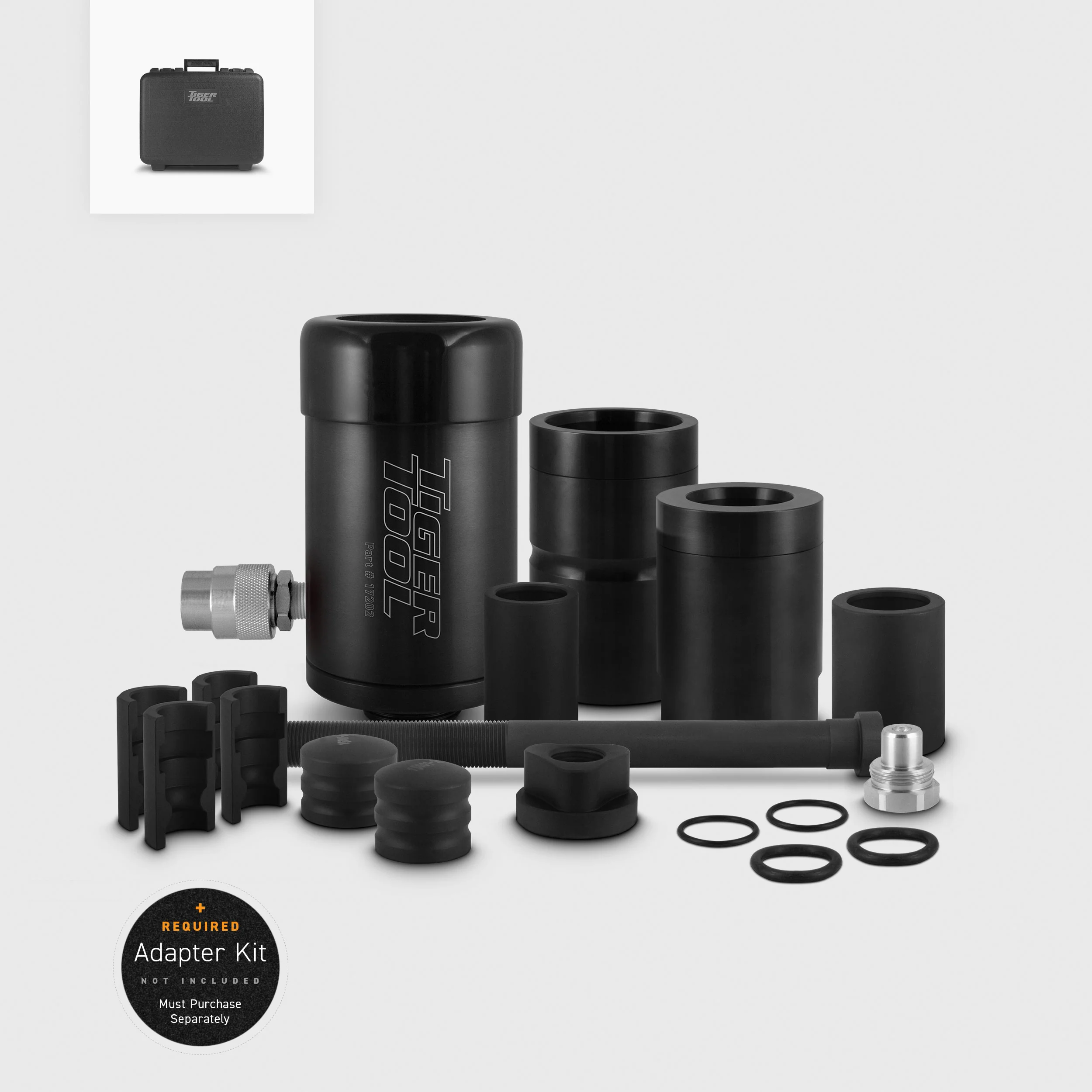

What's Included:

• (1) 20-ton hydraulic cylinder
• (1) Large face adapter
• (2) External snap rings
• (1) Cylinder adapter
• (1) Extension tube
• (1) Face plate
• (2) 1-3/4 inch pull adapters
• (1) Small pull-bar retaining sleeve
• (1) Pull-bar retaining sleeve
• (1) 2-1/16 inch pull adapter
• (2) Large O-rings
• (2) Small O-rings
• (1) Male hydraulic coupler
• (1) Trigon retaining nut
• (1) Small retaining cap
• (1) Large retaining cap
• (1) Pin and bushing pull-bar

Important Notes: This starter kit requires a 10,000 PSI hydraulic pump (not included) and at least one Tiger Tool Pin & Bushing Adapter Kit (sold separately) to operate. Adapters are available individually so you only purchase what your shop needs. Commonly used on Class 6-8 commercial trucks and equipment including Kenworth, Peterbilt, Freightliner, Mack, and Volvo.

Proudly manufactured in North America with Tiger Tool's commitment to quality, durability, and innovation that professional technicians have trusted for over 40 years.
