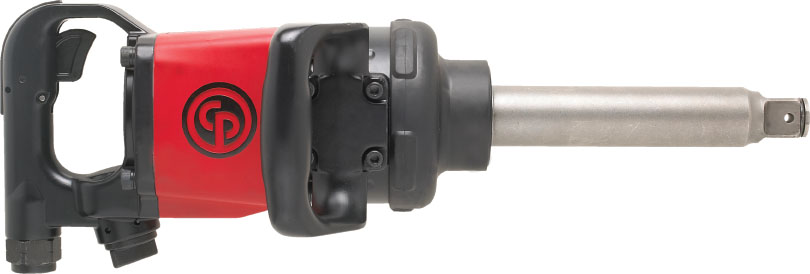

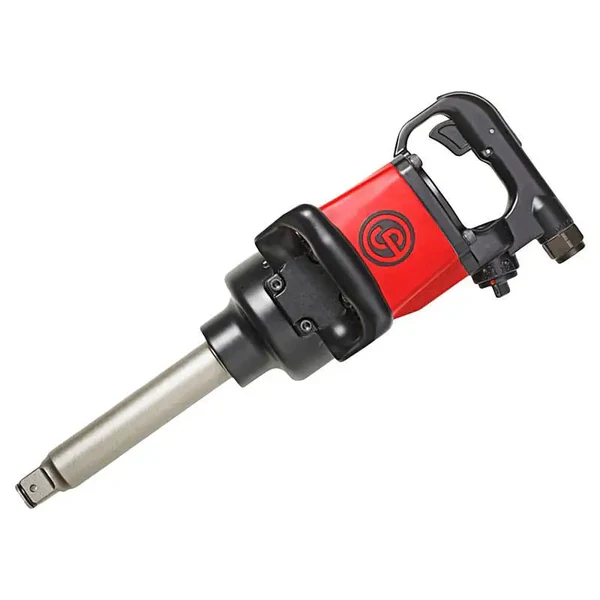

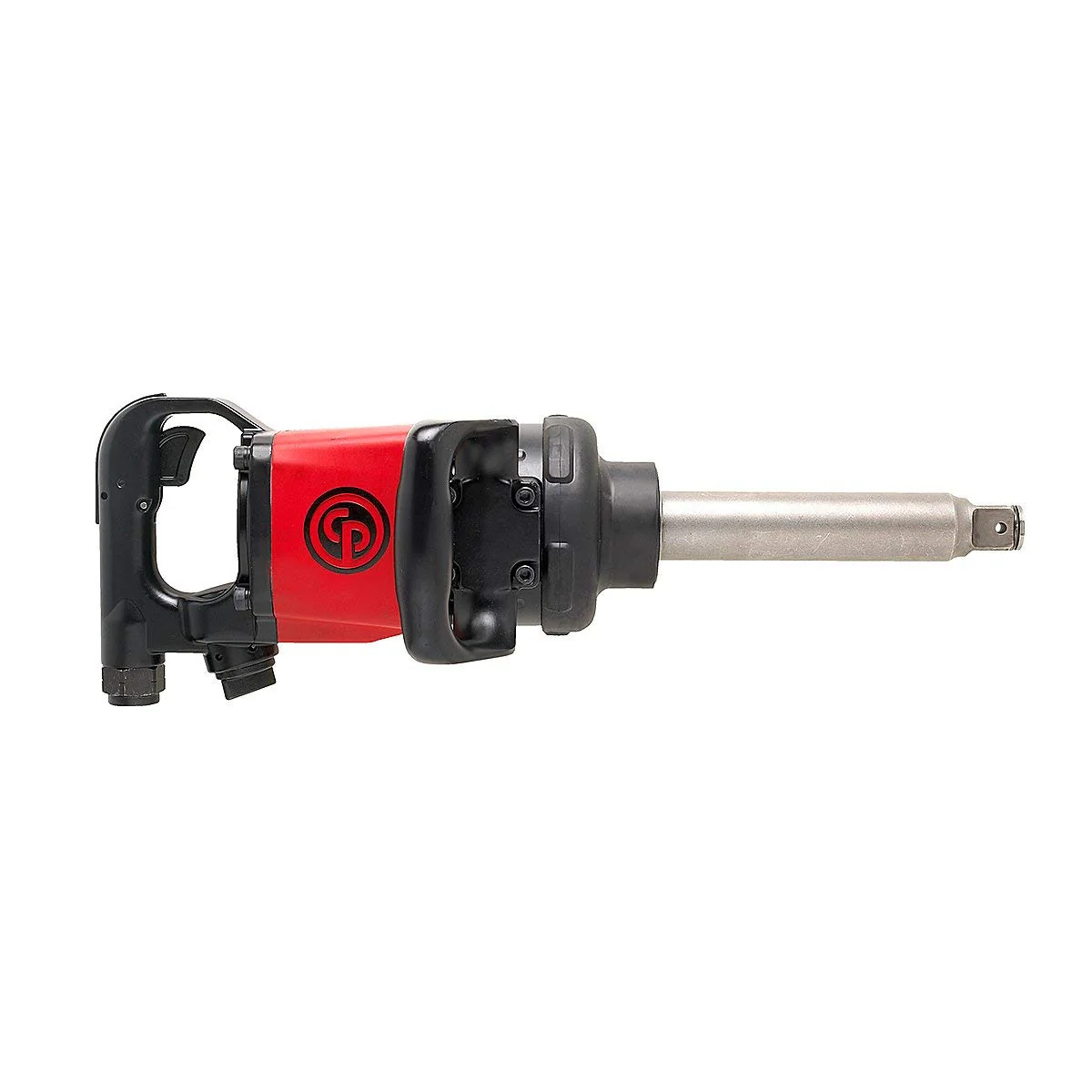

Chicago Pneumatic 7782-6 Heavy Duty Impact Wrench with Extended Anvil - 1 6

The Chicago Pneumatic CP7782-6 is a professional-grade 1-inch pneumatic impact wrench designed specifically for heavy-duty tire changing applications on trucks, buses, and heavy equipment. Delivering an impressive 2,140 ft-lbs of maximum torque in reverse, this powerhouse tool tackles the toughest wheel service jobs with ease.

Key Features:

• Working torque range of 370-1,475 ft-lbs forward, with maximum reverse torque of 1,920 ft-lbs
• Pinless closed reinforced rocking dog impact mechanism with metal housing for exceptional durability
• Dual socket retention system with both hole and friction ring
• 6-inch extended anvil reaches recessed hubs and tight spaces effortlessly
• Integrated regulator with forward/reverse control featuring 3-position power settings in both directions
• Ergonomic D-handle with side handle for comfortable two-handed operation
• High-efficiency 6-vane motor delivers maximum performance
• Integrated protective cover on clutch housing protects both tool and application
• Low vibration design for improved operator comfort during extended use

Performance Specifications:

• Free speed: 5,200 RPM
• Impact rate: 500 blows per minute
• Air consumption: 10 CFM average, 40.7 CFM at full load
• Required pressure: 90 PSI with 1/2-inch NPT air inlet
• Minimum hose size: 1/2 inch
• Sound pressure: 100 dBA, Sound power: 111 dBA
• Vibration: 7.8 m/s² (K factor: 1.8 m/s²) per ISO-28927-2

This wrench is ideal for heavy truck tire service and high-volume shop applications, providing the perfect combination of power, durability, and ergonomic design for professional technicians who demand reliable performance day after day.
