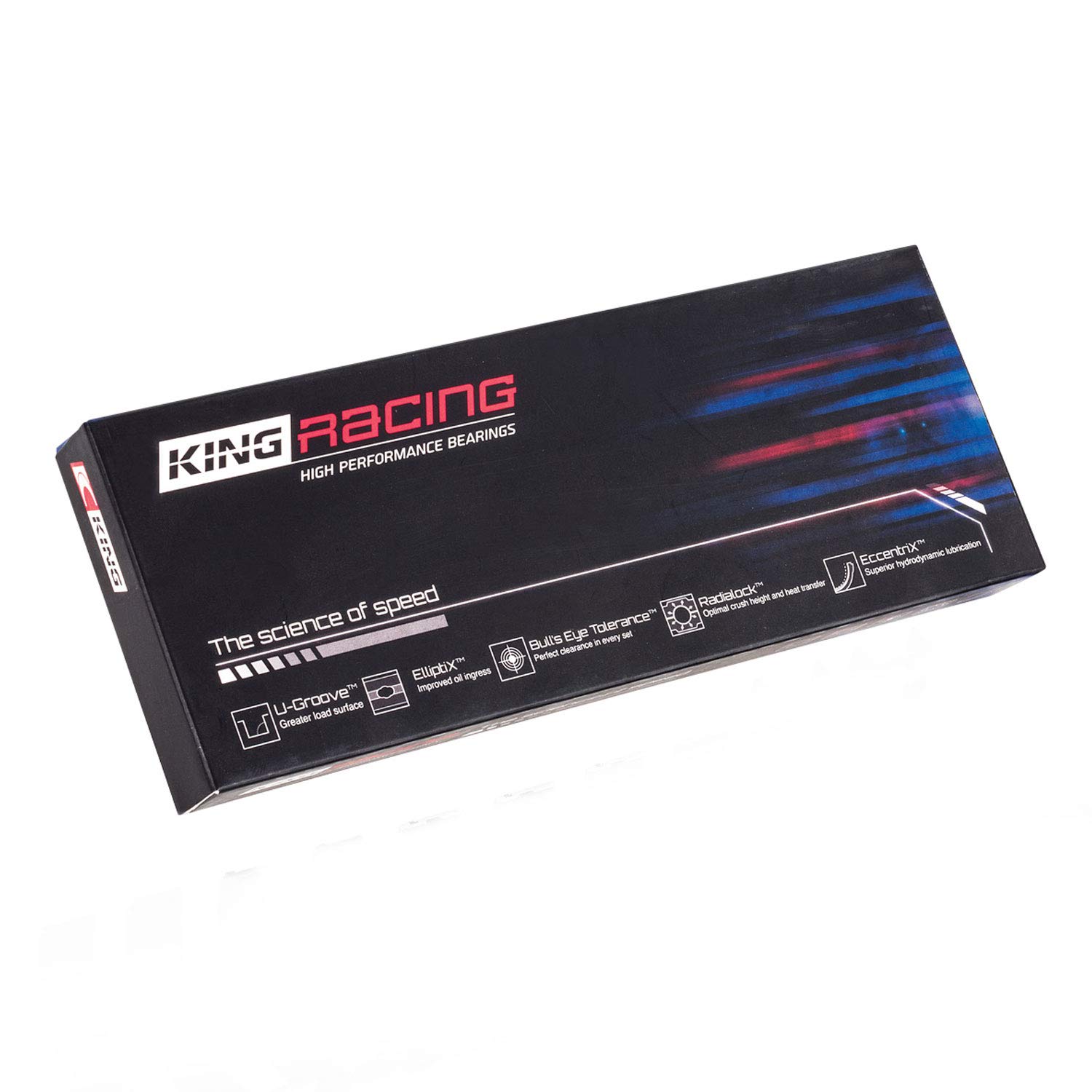

King Engine Bearings MB5243XPCSTDX Performance Main Bearing Set
The King Engine Bearings MB5243XPCSTDX main bearing set is engineered specifically for Nissan SR20DE and SR20DET engines, combining advanced tri-metal construction with revolutionary pMaxKote coating technology. This STDX size bearing set provides an additional 0.001 inch (0.025mm) of total clearance compared to standard bearings, making it ideal for high-performance and racing applications where precise oil clearances are critical.
Advanced pMaxKote Coating Technology
The XPC series features King's proprietary pMaxKote nano-composite polymer coating applied over the pMaxBlack tri-metal overlay during the manufacturing process. This factory-applied coating contains ceramic nano-composite particles that function as a fourth protective layer, enhancing seizure resistance, wear resistance, and cavitation protection without adding any thickness to the bearing's precision dimensions. The pMaxKote coating provides superior protection during metal-to-metal contact and oil starvation conditions, making these bearings ideal for extreme racing applications.
pMaxBlack Tri-Metal Construction
Beneath the pMaxKote coating lies King's pMaxBlack tri-metal structure, featuring a strengthened overlay with 5% copper content and a proprietary nano-scaled hardening process. This creates a black fatigue-resistant shield that is 24% harder than conventional tri-metal race bearings (14.5 HV vs 11.5 HV). The intermediate layer contains 4.5% tin content and achieves 115 HV hardness with a load carrying capacity of 17,000 psi—significantly exceeding typical race bearings.
Performance Features
- Bull's Eye Tolerance: Industry-leading wall thickness tolerance of ±0.0001 inch with all shells perfectly matched
- STDX Clearance: Thinner shell design provides 0.001 inch (0.025mm) additional clearance for high-performance builds
- U-Groove Design: 90-degree oil groove shape maintains oil flow integrity while increasing bearing surface area and load capacity
- ElliptiX Oil Holes: Enlarged, chamfered oil holes with hybrid oil slot design improve oil ingress without compromising bearing surface
- Medium Eccentricity: Optimizes load distribution and oil delivery throughout the bearing surface
- Narrowed Design: Accommodates large-radius forged steel crankshafts commonly used in performance builds
Application
Designed for Nissan SR20DE and SR20DET 2.0L 16-valve engines found in the 240SX (S13/S14), 200SX, Sentra SE-R (B13-B15), Infiniti G20, NX2000, and Silvia (S13/S14/S15). King XPC bearings are specifically engineered for high-load, extended-duration racing applications using forged steel crankshafts, including road racing, circuit racing, and high-horsepower street builds.
Technical Specifications
- Material: Tri-metal construction with pMaxBlack overlay and pMaxKote coating
- Size: STDX (0.001" / 0.025mm additional clearance)
- Crankshaft Journal Diameter: 54.96-54.98mm (2.1636"-2.1646")
- Housing Bore: 58.94-58.97mm (2.3206"-2.3216")
- Bearing Width: 19.0mm (0.748")
- Wall Thickness: 1.975mm (0.0778")
- Load Capacity: 17,000 psi (intermediate layer), 10,200 psi (overlay)
King Engine Bearings has specialized exclusively in engine bearing manufacturing since 1960, applying decades of racing experience and rigorous TechLab testing to create bearings that withstand the extreme loads and temperatures of competition engines. Every King bearing is manufactured with precision that far exceeds industry standards, ensuring reliable performance in the most demanding applications.
