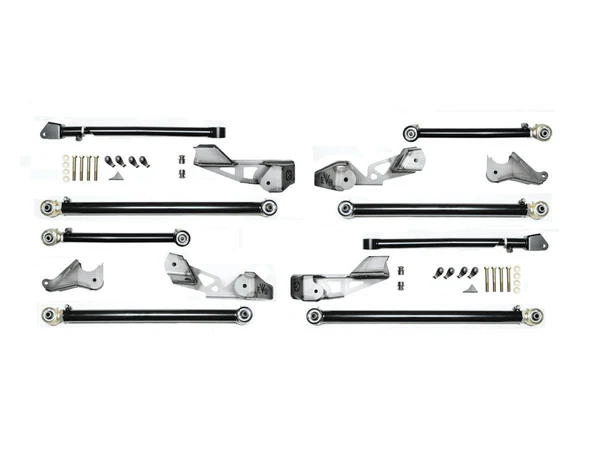

EVO Mfg EVO-932 JLU High Clearance Long Arm Brackets and Hardware Kit 4-Door

The EVO Mfg EVO-932 is a high clearance long arm bracket and hardware kit designed exclusively for the 4-door Jeep Wrangler JLU (Unlimited). This brackets-only kit is engineered for builders who want to convert their existing short or mid-arm suspension to a high-clearance long arm setup while reusing compatible components such as coil springs, sway bar links, and bump stop extensions — maximizing value without sacrificing performance.

EVO Manufacturing's purpose-built bracketry delivers a dramatic improvement in suspension and chassis ground clearance, increased wheel travel, and optimized suspension geometry. The front control arm brackets mount tucked up nearly flush with the underside of the frame, positioning inches above the factory lower mounting location. Rear mounting points relocate to the side of the frame above the bottom rail, and the rear axle bracket mounting is also raised by multiple inches — all working together to achieve exceptional clearance while maintaining flat, optimal control arm angles for smooth ride quality and long suspension travel.

Key Features:

• High clearance bracket design raises front and rear control arm mounting points significantly above factory locations
• Brackets align to the frame using existing factory holes for precise, confident positioning during installation
• Designed to require no exhaust cutting on 3.6L JLU models (minor grind/clearance to flange may be required)
• Full-length hard-face mounting surfaces weld to the frame for maximum welding area and structural strength
• Bolt brackets to frame using existing hardware, then weld in place
• Compatible with EVO front and rear coilover kits for maximum on- and off-road performance
• Brackets and hardware only — allows reuse of existing springs, sway bar links, and bump stop extensions
• Designed and manufactured in the USA
• Backed by EVO Manufacturing's Limited Lifetime Warranty on defects in material and craftsmanship

Installation Note: Cutting, grinding, and welding of frame brackets is required. Professional installation by a certified technician is strongly recommended.

The EVO-932 is the ideal solution for JLU 4-door owners who want the performance benefits of a high clearance long arm suspension system without repurchasing a complete kit from scratch.
