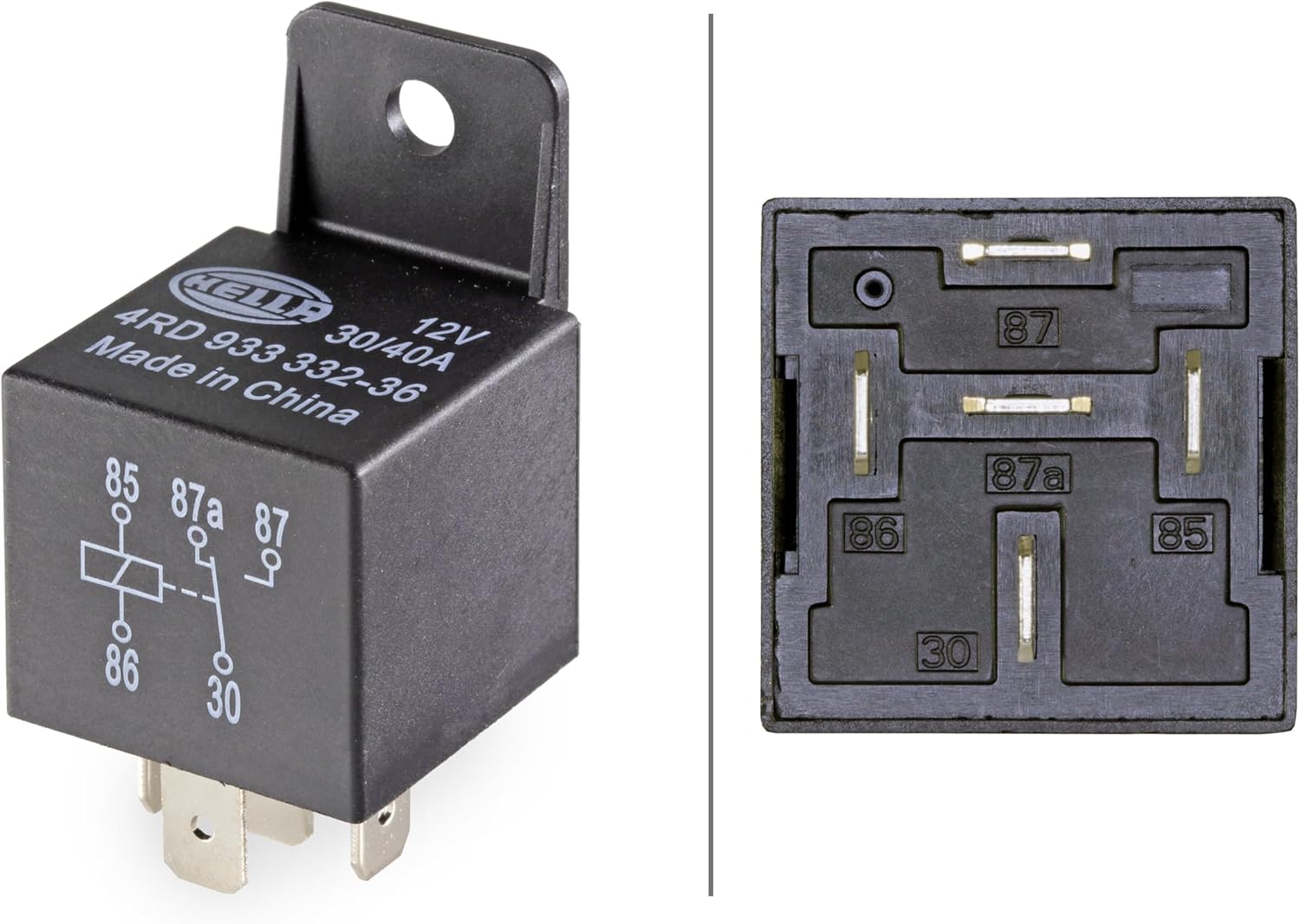

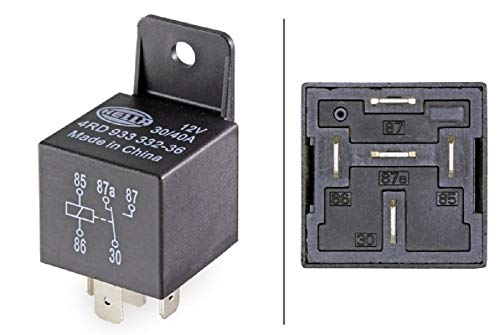

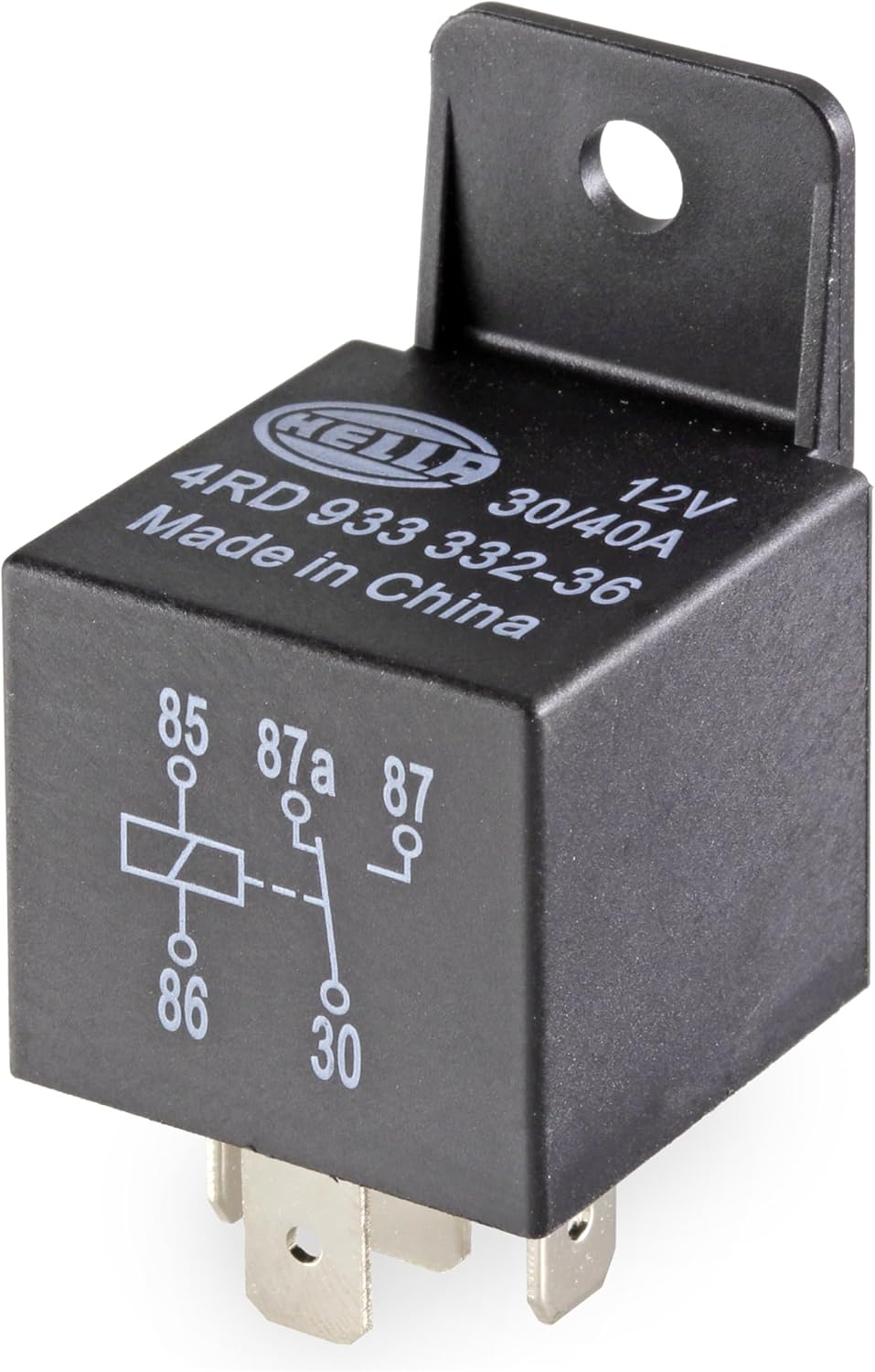

Hella 933332361 12V Mini ISO SPDT Relay with Bracket

The Hella 933332361 is a professional-grade 12V mini ISO relay designed for versatile automotive electrical applications. This change-over relay features a Single Pole Double Throw (SPDT) configuration with 5-pin connectivity, making it ideal for switching between two different electrical circuits.

Key Specifications:

• Rated voltage: 12V DC
• Switching current: 40A normally open (N/O) contact, 20A normally closed (N/C) contact at 85°C
• Contact form: Form C / SPDT change-over relay
• Coil resistance: 85 Ohm
• Durability: Up to 100,000 switching operations

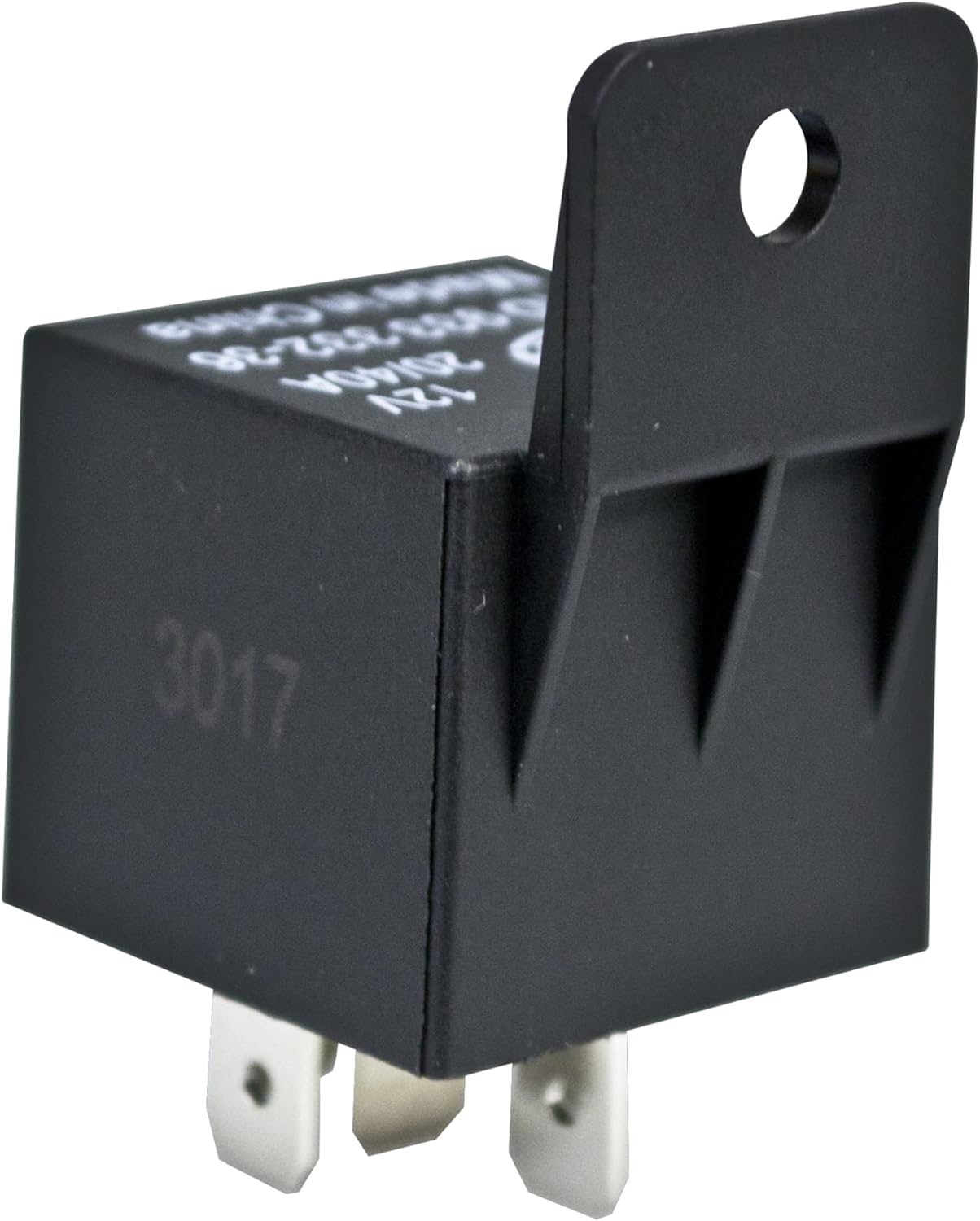

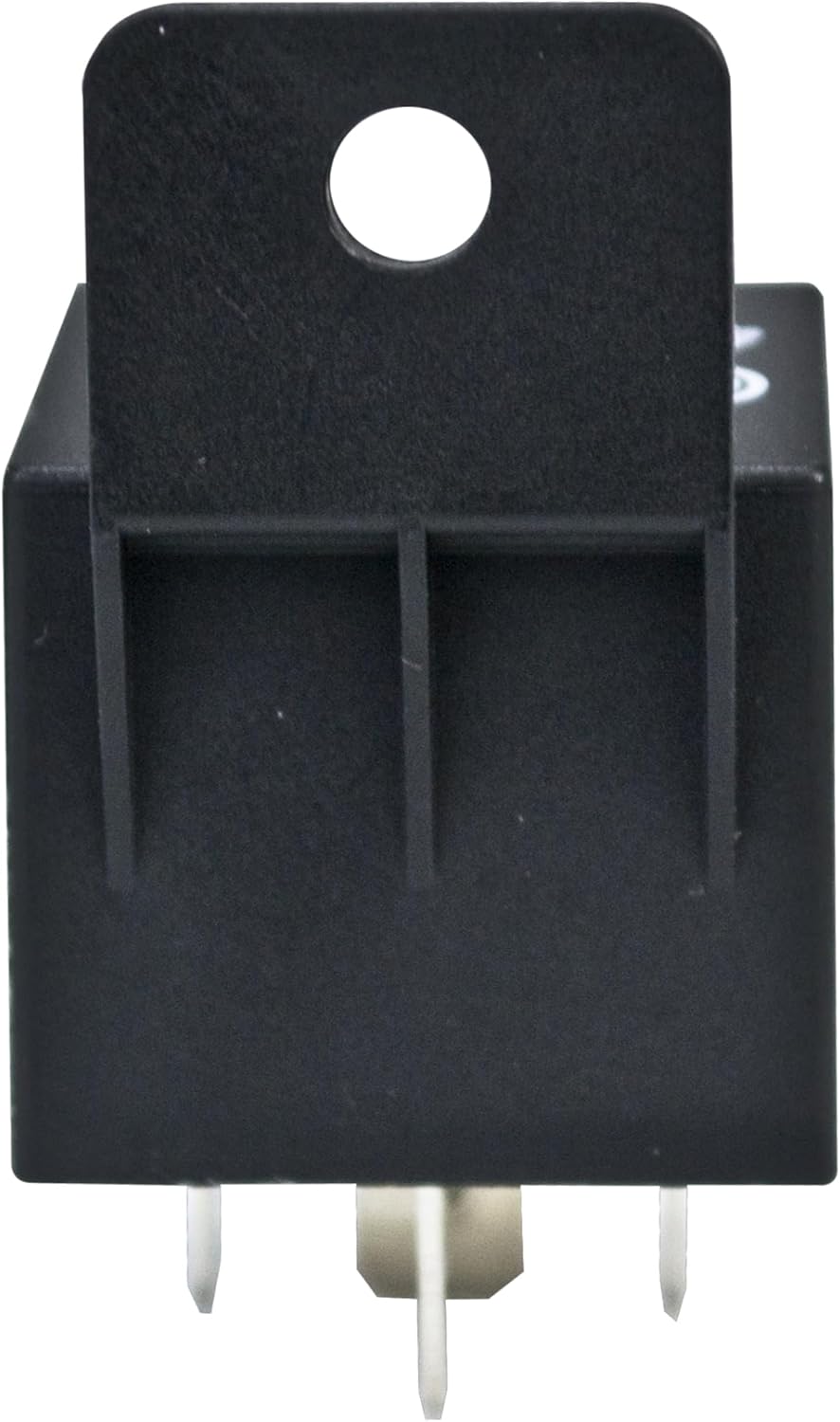

• Integrated mounting bracket for secure installation

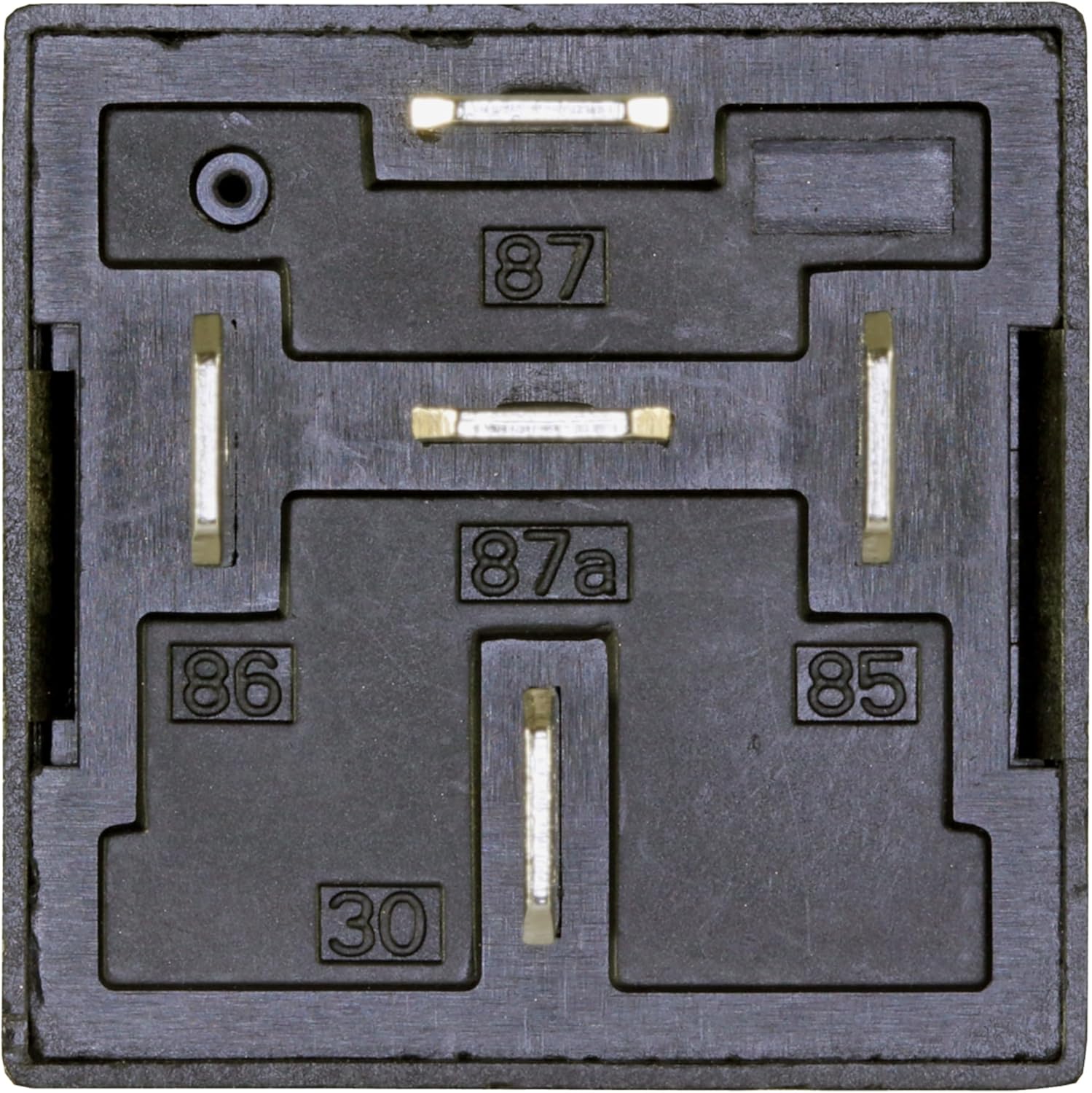

• Mini ISO relay format with blade terminals per ISO 8092-1

Common Applications:

• Auxiliary lighting and fog lights
• Horn circuits
• Heated rear window controls
• Fan motors and two-speed applications
• Power windows and door locks
• Fuel pumps and accessory power distribution

This relay provides complete galvanic isolation between control and load circuits, protecting sensitive switches and control devices from high current loads. The SPDT configuration allows the relay to function as either a normally open or normally closed relay, or to switch between two different loads. Hella relays are trusted by major automotive manufacturers worldwide and offer the same OEM quality available to the aftermarket.
