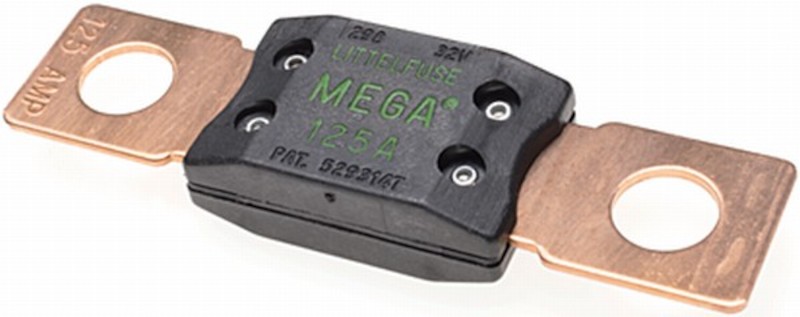

Hella 742902011 MEGA Fuse 125A Green High-Current Strip Fuse

The Hella 742902011 is a 125-Amp MEGA-type strip fuse engineered for high-current circuit protection in automotive, commercial vehicle, agricultural, and specialty vehicle electrical systems. Identifiable by its green color coding, this bolt-down fuse is a direct-fit replacement meeting DIN/ISO 8820-5 standards and is sold individually (quantity: 1).

MEGA fuses are designed to protect heavy-gauge wiring and high-draw components such as battery main leads, alternator output cables, and power distribution systems where standard blade or MIDI fuses are insufficient. The copper-coated contact surface ensures low resistance and reliable conductivity, while the robust housing withstands an operating temperature range of -40°F to +257°F (-40°C to +125°C).

Key Specifications:

• Fuse Type: MEGA (strip/bolt-down)
• Current Rating: 125A
• Color: Green
• Bolt/Terminal Distance: 50.8mm (2.00 in)
• Bore Diameter: 8.6mm
• Height: 9.9mm (0.39 in)
• Depth: 19mm (0.75 in)
• Contact Surface: Copper Coated
• Standard: DIN/ISO 8820-5
• Operating Temperature: -40°C to +125°C (-40°F to +257°F)
• Quantity: 1

Cross-Reference / OEM Part Numbers: 0-376-12, 0298125.ZXEH, 06.01125, 07.01125, 0731 310 125, 1 987 531 001, 192050, 200833820, 298125, 298125.TN000, 50 295 871, 5183139, 5350246824, 8302912, V36087200

Hella is a globally recognized OEM-grade automotive electrical supplier, and this MEGA fuse is built to the same standards as original equipment. Assembly by qualified personnel is recommended.
