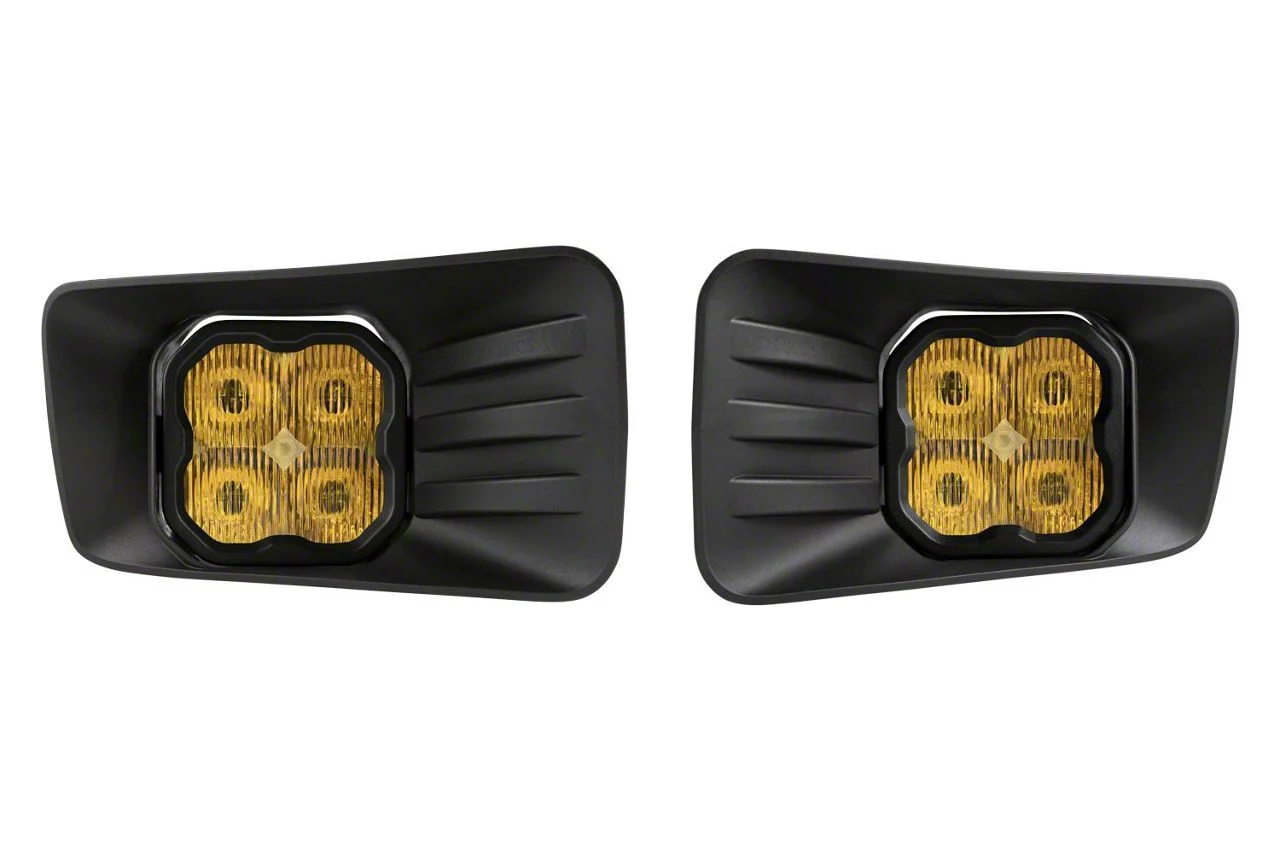

Diode Dynamics DD7308 SS3 Max Type CH LED Fog Light Kit Yellow SAE Fog ABL

The Diode Dynamics SS3 Max Type CH LED Fog Light Kit (DD7308) is a high-output, road-legal fog lighting solution built around Diode Dynamics' industry-leading 3-inch Stage Series LED pod platform. Featuring advanced Total Internal Reflection (TIR) optics, this kit delivers exceptional efficiency, focus, and beam precision that outperforms traditional reflector- or lens-based systems.

The custom-engineered TIR optic serves as both the primary optical element and the exterior lens — eliminating the light transmission loss common in conventional designs that use a separate outer lens. Paired with high-intensity automotive-grade LED chips, this results in maximum usable output with minimal glare or scatter.

The SAE Fog beam pattern meets SAE J583 standard as a road-legal foglamp when properly aimed, making this kit a fully compliant upgrade over your factory fog lights. An integrated amber backlight illuminates the TIR optic housing, adding a modern accent look alongside the primary beam.

Key Features:

• Advanced TIR optics for high efficiency, focus, and optimized beam patterns
• SAE J583-compliant Yellow SAE Fog beam pattern for legal on-road use
• Amber Backlight (ABL) accent feature integrated into the TIR optic housing
• Pin-fin heatsink design for passive thermal management
• Integrated Deutsch-style (DT-type) connector with included pigtail leads
• High-intensity automotive-grade LED chips
• Durable powder-coated aluminum construction
• IP69K waterproof rating for reliable performance in extreme conditions
• Includes one-piece molded bezel for a clean, factory-style appearance
• Plug-and-play installation — no modification required
• Engineered and assembled in the USA

The DD7308 Type CH bracket kit is designed as a direct OEM fog lamp replacement, allowing installation in minutes using custom-molded brackets that bolt directly into factory mounting locations. Wire adapters are included to connect to factory bulb sockets with no additional wiring needed.
