Diode Dynamics DD7307 SS3 Max Type CH ABL White SAE Fog Light Kit

The Diode Dynamics SS3 Max Type CH LED Fog Light Kit (DD7307) is a direct-fit, plug-and-play replacement fog light upgrade built around Diode Dynamics' Stage Series 3-inch LED pod platform. Engineered and assembled in the USA, this kit delivers higher output intensity than competing 3-inch lights on the market, making it an ideal performance upgrade over your factory foglamps.

Advanced TIR Optics

Unlike traditional reflector or lens-based systems that lose light to internal scatter and glare, the SS3 uses a custom-engineered Total Internal Reflection (TIR) optic that captures the full LED output and directs it precisely where needed. The TIR optic also functions as the outer lens, eliminating the roughly 10% light loss typical of designs with a separate outer lens — resulting in maximum efficiency and a tighter, more useful beam pattern.

SAE-Compliant Fog Beam Pattern

The SS3 Max features Diode Dynamics' FineLine SAE Fog optic design, delivering an extremely wide 80-degree field of view with high-intensity output. When installed as a pair and aimed per your state's regulations, the fog pattern meets the SAE J583 standard as a legal on-road foglamp.

Amber Backlight (ABL) Functionality

This kit includes Adaptive Backlight (ABL) functionality — the Stage Series 3-inch LED pod features a distinctive full-optic amber backlight that illuminates the entire TIR lens for a modern, premium appearance that goes well beyond the small indicator LEDs found on competing products.

Key Features:

• Advanced TIR optics for high efficiency, focused output, and reduced glare
• Max-level output — highest power tier using cutting-edge automotive LED emitters
• SAE J583-compliant fog beam pattern — road legal when properly aimed
• Full-optic amber backlight (ABL) for distinctive accent lighting
• Pin-fin heatsink design for efficient thermal management
• Integrated Deutsch-style connector for secure, weatherproof electrical connection
• Durable powdercoated aluminum construction for long-lasting corrosion resistance
• Plug-and-play installation — custom-molded Type CH brackets bolt directly into factory fog light locations
• Wire adapters included — connects to factory bulb sockets with no additional wiring required
• Engineered and assembled in the USA

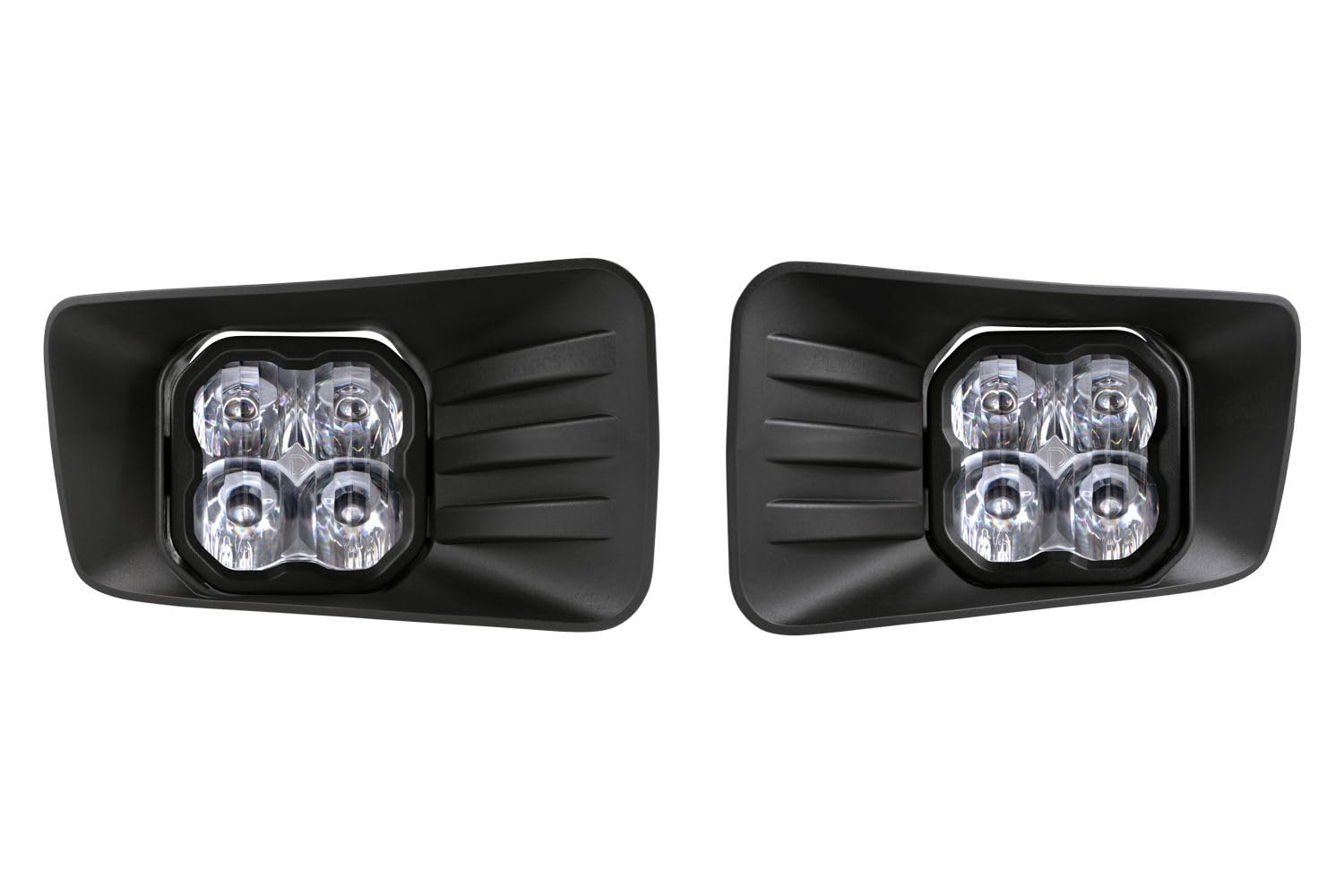

The SS3 Max Type CH Kit includes two (2) SS3 3-inch round LED pods, vehicle-specific Type CH mounting brackets, a one-piece molded bezel for a clean factory appearance, and the necessary wire adapters for a complete, no-modification installation.
