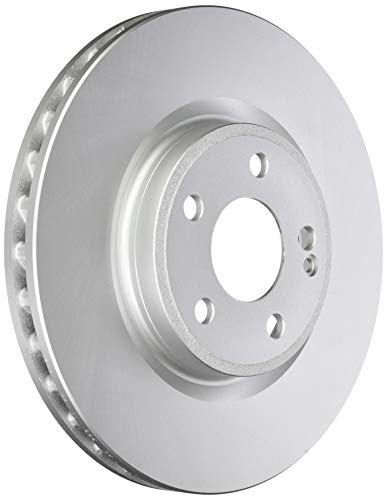

Raybestos 981775FZN Rust Prevention Technology Coated Rotor Brake Rotor, 1 Pack

The Raybestos 981775FZN Element3 coated brake rotor (also called a disc brake rotor) is a vented, conventional-style rotor. Its rust prevention coating is meant to help the rotor resist corrosion and keep a clean appearance. It is a replacement part for restoring consistent braking performance.

Key Features:

• Element3 coated finish for rust prevention
• Vented design for heat dissipation
• Conventional rotor type, without an ABS tone ring
• 5-lug mounting pattern on a 112 mm (4.409 in) bolt circle
• Outside diameter: 320 mm (12.598 in)
• Nominal thickness: 29.95 mm (1.18 in)
• Discard thickness: 27.45 mm (1.08 in)
• Center hole diameter: 67.1 mm (2.642 in)
• Overall height: 51.1 mm (2.012 in)

Cross References: Nissan 402065DH0A, 402065DL0A, 40206HG00A; Mercedes-Benz 2464212612, 246421261207.

Replace the rotor when it reaches the discard thickness listed above. Raybestos recommends fitting new brake pads with new rotors for the best braking results.
