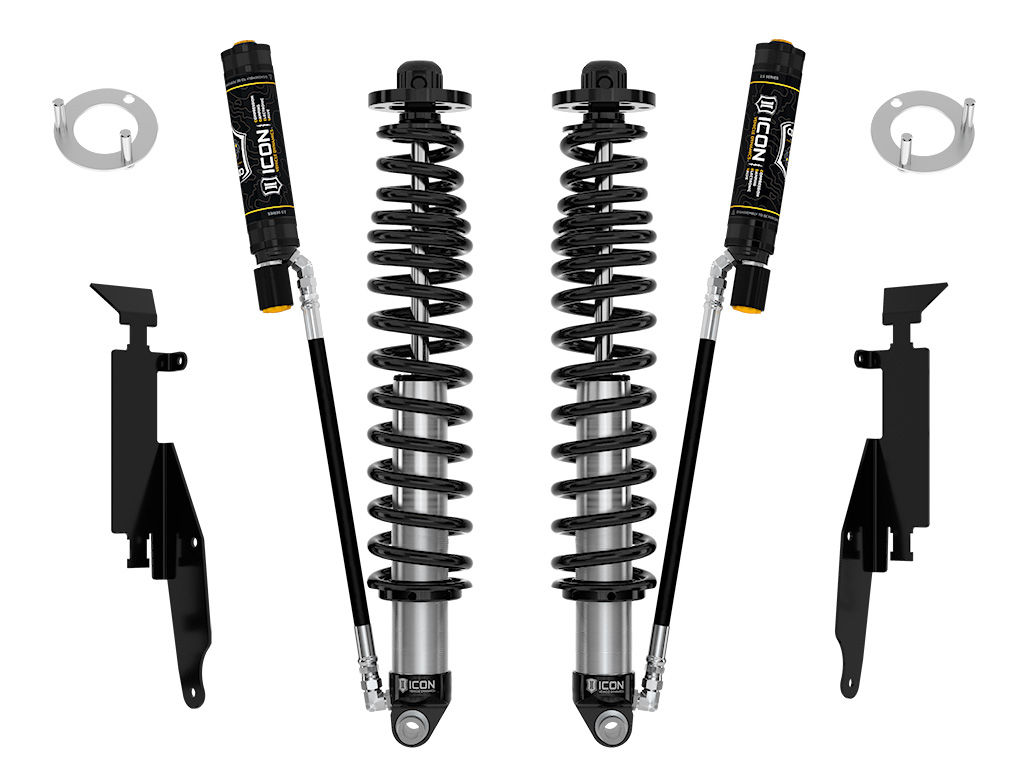

ICON Vehicle Dynamics 48710E VS Rear Coilover Kit with CDEV for Ford Bronco - 2.5 2021-2023

(2021-2023 Ford Bronco)

Manufacturer

Picture for manufacturer ICON Vehicle Dynamics

Part Number

48710E
7 reviews
Sale Price

$3,015.95

In Stock (10+)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The ICON Vehicle Dynamics 2.5 VS Series rear coilover kit with Compression Damping Electronic Valves (CDEV) delivers premium suspension performance for 2021-2023 Ford Bronco 4-door models. This adjustable coilover system provides 2-3 inches of rear lift height on non-Sasquatch Broncos or 1.25-2.25 inches on Sasquatch-equipped models, enabling fitment of larger, more aggressive wheel and tire combinations.

Key Features:

  • Up to 14 inches of wheel travel for exceptional off-road capability
  • Vehicle-specific valving tuned for optimal shock damping and control
  • 2.5-inch shock body with increased piston area for superior performance over stock components
  • Remote reservoirs increase oil volume and heat dissipation to prevent damper fade during extended off-road use
  • ICON Intelligent Control (IIC) system uses onboard sensors to monitor G-forces and chassis movement, making near-instantaneous compression damping adjustments
  • CDEV technology enables precise electronic shock tuning on-the-fly at any speed and terrain
  • Progressive triple-rate coil springs provide softer ride at normal height with improved bottom-out resistance
  • Wireless control through IIC smartphone app with autonomous operation once configured

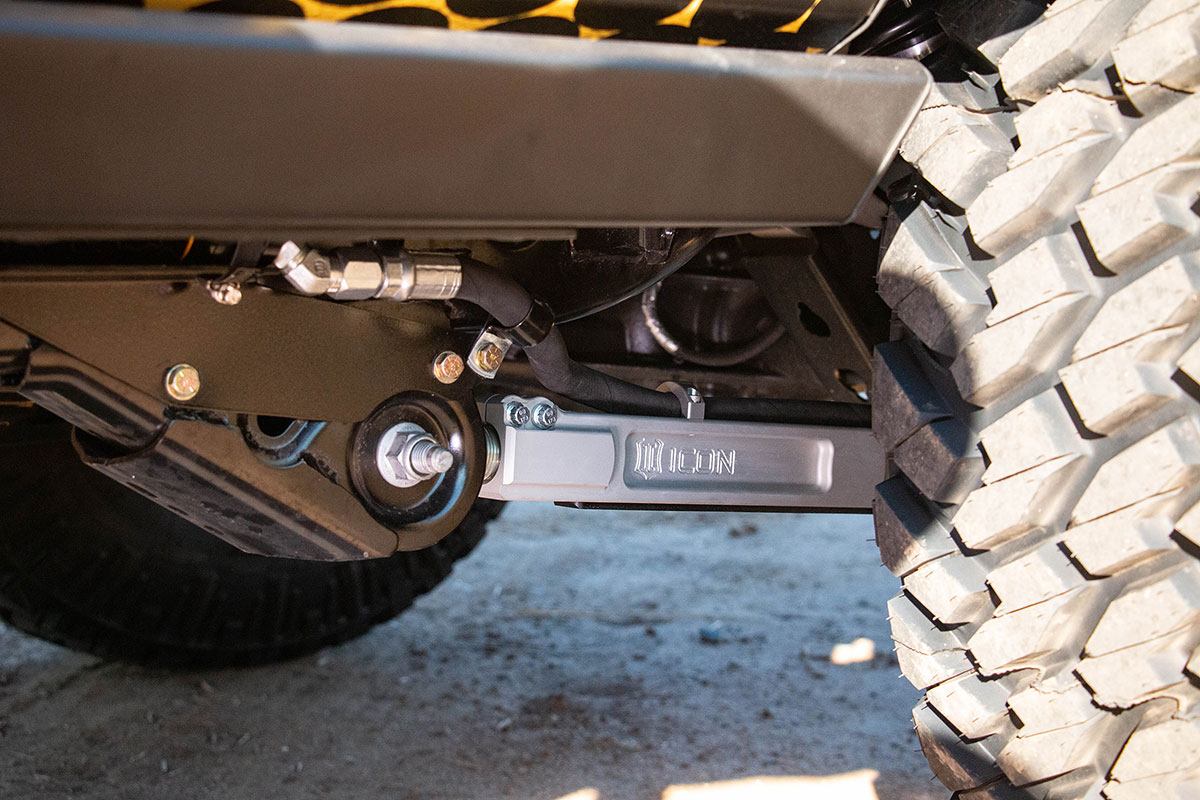

The larger shock body and remote reservoir design maintain cooler operating temperatures during demanding off-road conditions while maximizing available wheel travel. The shaft-up orientation requires reservoir hose routing along the rear lower links, with ICON offering compatible hose bracket options for OE or ICON tubular links. Note that ICON 2.5 Series front coilovers with CDEV and a matching IIC module are required for installation to achieve balanced vehicle control from front to rear.

WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Products specifications

Fits

2021-2023 Ford Bronco

Service Parts

252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT

Spring Material

Steel

Spring Color

Black

Material

Steel

Maximum Lift

3

Grade Type

Performance

Add-On Part

198001 - BILLET SPANNER WRENCH KIT

Dust Shield

No

Add-On Part

48700E - 21-UP BRONCO FRONT 2.5 VS RR CDEV COILOVER KIT

Gas Charged

Yes

OEM Wheels & Tires Fitment

Yes

Lower Mount Type

Eyelet

Remote Reservoir

Yes

Shock Absorber Body End Measuring Point

Center of Eylet

Recommended Aftermarket Wheels

(With Sasquatch Package): ICON Alloys | 17x8.5" w/ 4.75" Backspace / 0mm Offset

Add-On Part

611074 - C/O BUMP STOP SPACER KIT 7/8" SHAFT 3/8" TALL

Recommended Aftermarket Wheels

(With Sasquatch Package): ICON Alloys | 18x9" w/ 5.00" Backspace / 0mm Offset

Spring Rate Type

Progressive Triple Rate

Recommended Aftermarket Tires

(Without Sasquatch Package): 35" x 12.50" (37" tires require coilover bump stop spacers)

Body Diameter

2.5

Shaft Diameter

0.875

Add-On Part

198000 - 2 PIN COILOVER SPANNER WRENCH KIT

Boot Included

No

Damping Type

Oil

Add-On Part

611072 - 21-UP BRONCO HOSE ROUTE KIT OEM REAR LINK 1.9"

Adjustable Height

yes

Recommended Aftermarket Wheels

(Without Sasquatch Package): ICON Alloys | 17x8.5" w/ 5.75" Backspace / 25mm Offset

Add-On Part

611073 - 21-UP BRONCO HOSE ROUTE KIT REAR LINK 1.75"

Add-On Part

252012 - -4 TO -10 HOSE SHIELD KIT

Recommended Aftermarket Tires

(With Sasquatch Package): 35" x 12.50" (37" tires require coilover bump stop spacers)

Recommended Aftermarket Wheels

(With Sasquatch Package): ICON Alloys | 20x9" w/ 5.00" Backspace / 0mm Offset

Shock Absorber Rod End Measuring Point

Top of Mounting Plate

Coil Over Springs Included

Yes

Adjustable Damping

Electronically

Add-On Part

43501 - 21-UP BRONCO IIC INSTALL KIT

Material

Aluminum

Upper Mount Type

Mounting Plate
