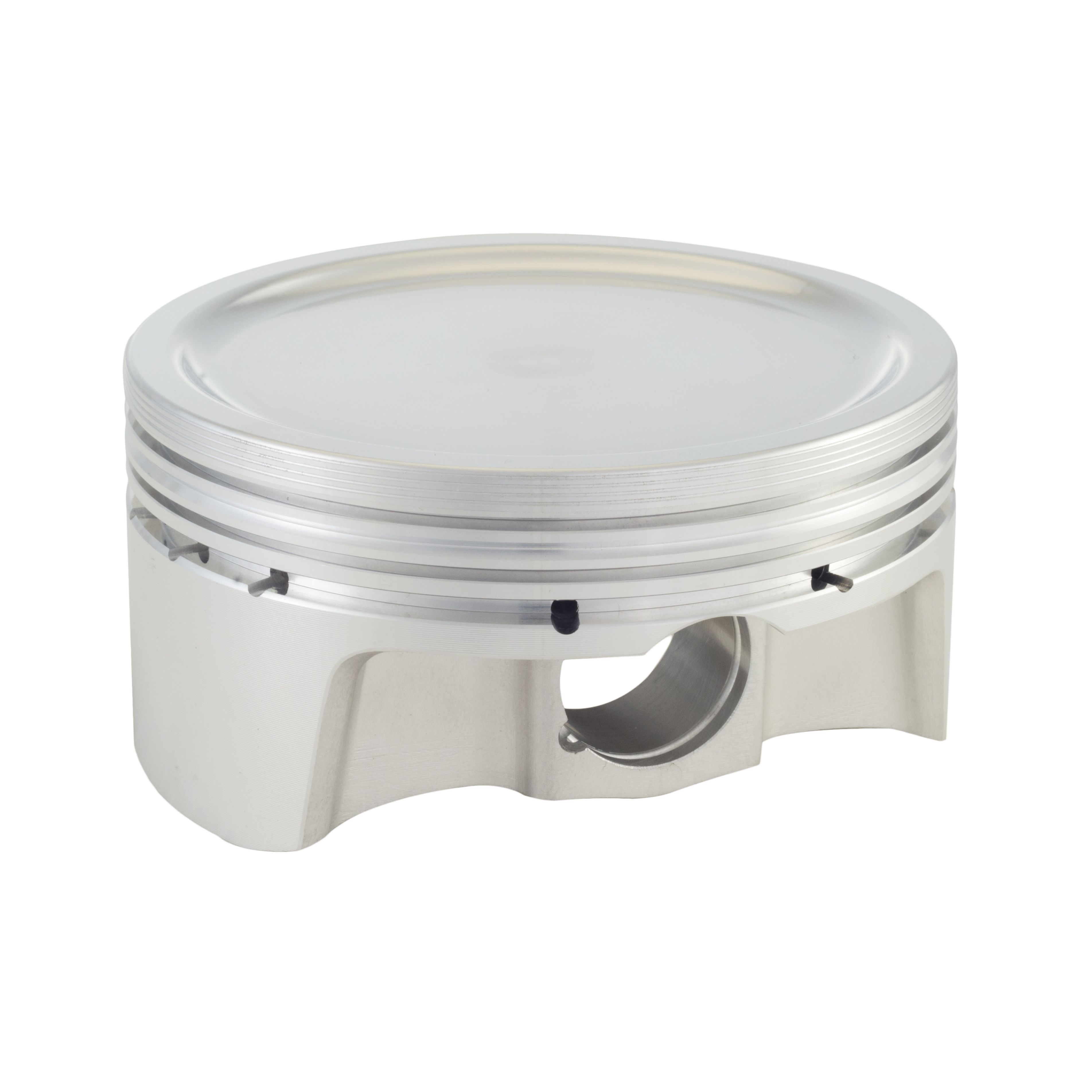

CP-Carrillo SC7504-1 Forged Piston for Dodge Neon SRT-4 2.4L Turbo 88mm +0.5mm Bore 9.0:1 CR Single

The CP-Carrillo SC7504-1 is a single forged performance piston designed for the Dodge Neon SRT-4 2.4L turbocharged engine. With an 88mm bore diameter (+0.5mm oversize) and a 9.0:1 compression ratio, this piston is purpose-built for forced induction builds running turbocharger, supercharger, or nitrous oxide applications.

Key Specifications:

• Bore: 88.0mm (3.465 in.) — +0.5mm oversize
• Compression Ratio: 9.0:1
• Compression Height: 1.400 in.
• Stroke: 101mm
• Rod Length: 151mm
• Piston Head Volume: -13.4cc dish with four valve reliefs
• Piston Style: Dish with four valve reliefs
• Wrist Pin Style: Press-fit or floating
• Pin Diameter: 0.866 in.
• Ring Pack: 1.0mm x 1.2mm x 2.8mm
• Top Ring: 1.0mm gas-nitrided steel
• Second Ring: 1.2mm cast iron

Key Features:

• Precision CNC-machined and balanced to +/-1 gram for smooth, high-rpm operation
• High-strength forged aluminum construction with optimum skirt cam and barrel profile
• Deep valve relief depth designed to accommodate oversized valves and high-lift camshafts
• Double pin oilers force-fed from the oil ring for superior lubrication
• Accumulator grooves and pin lock grooves included
• Wrist pin and pin retainers included
• Sold as a single piston (order quantity as needed for your build)

CP-Carrillo manufactures each piston at their facility in Irvine, California, subjecting every component to a rigorous multi-level inspection and quality control process. The SC7504-1 is part of CP-Carrillo's Sport Compact shelf line — an ideal upgrade for SRT-4 engine builds targeting increased power output under boost.
