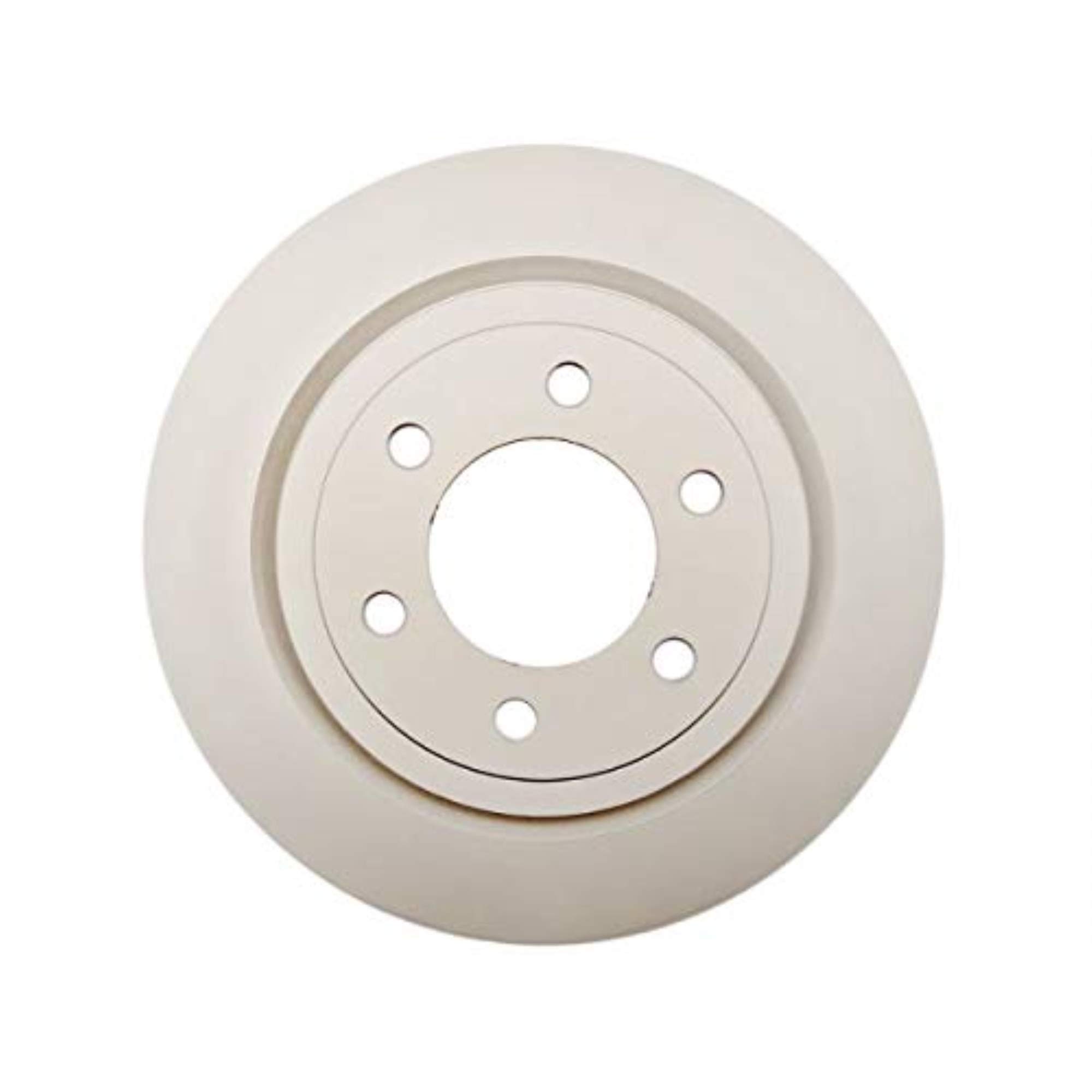

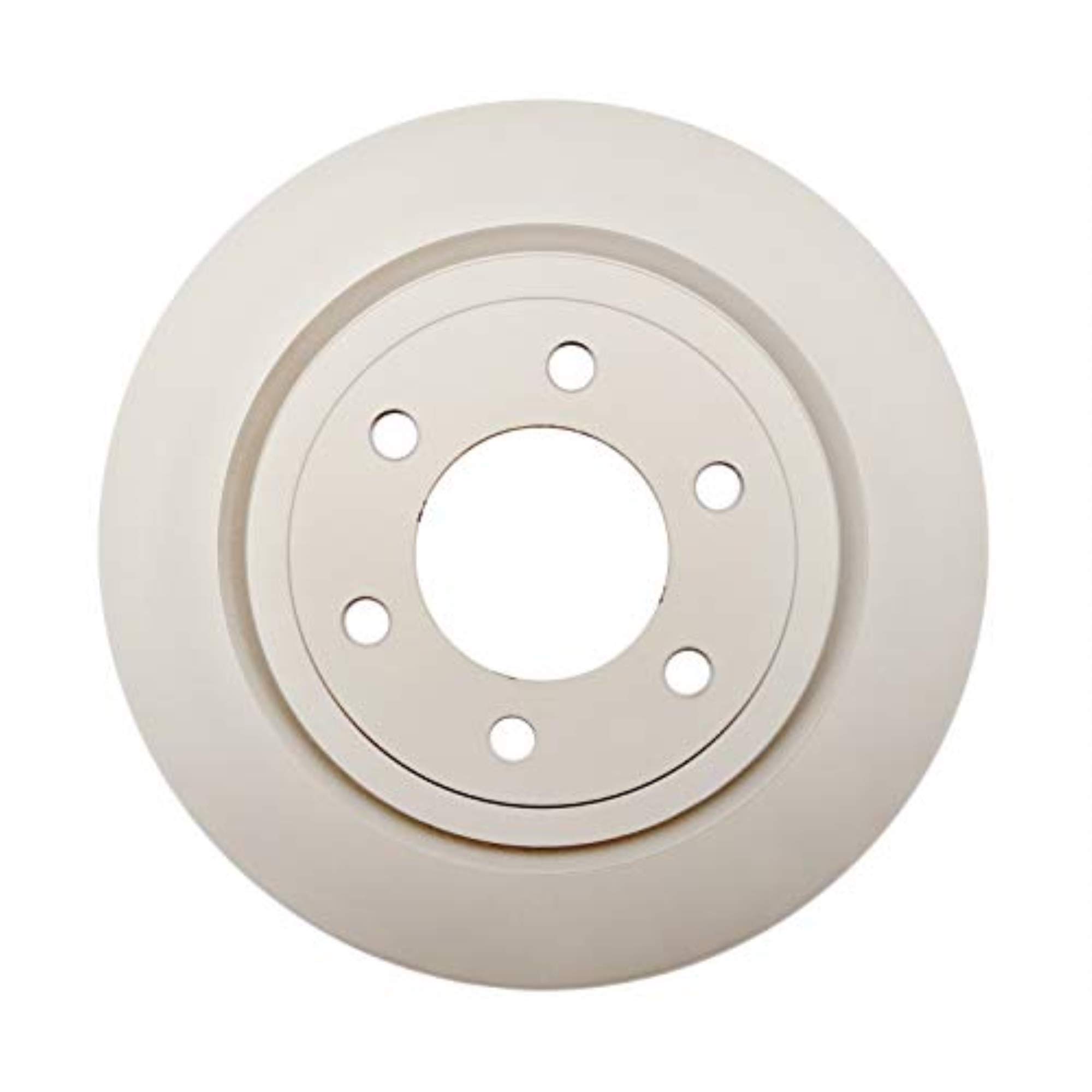

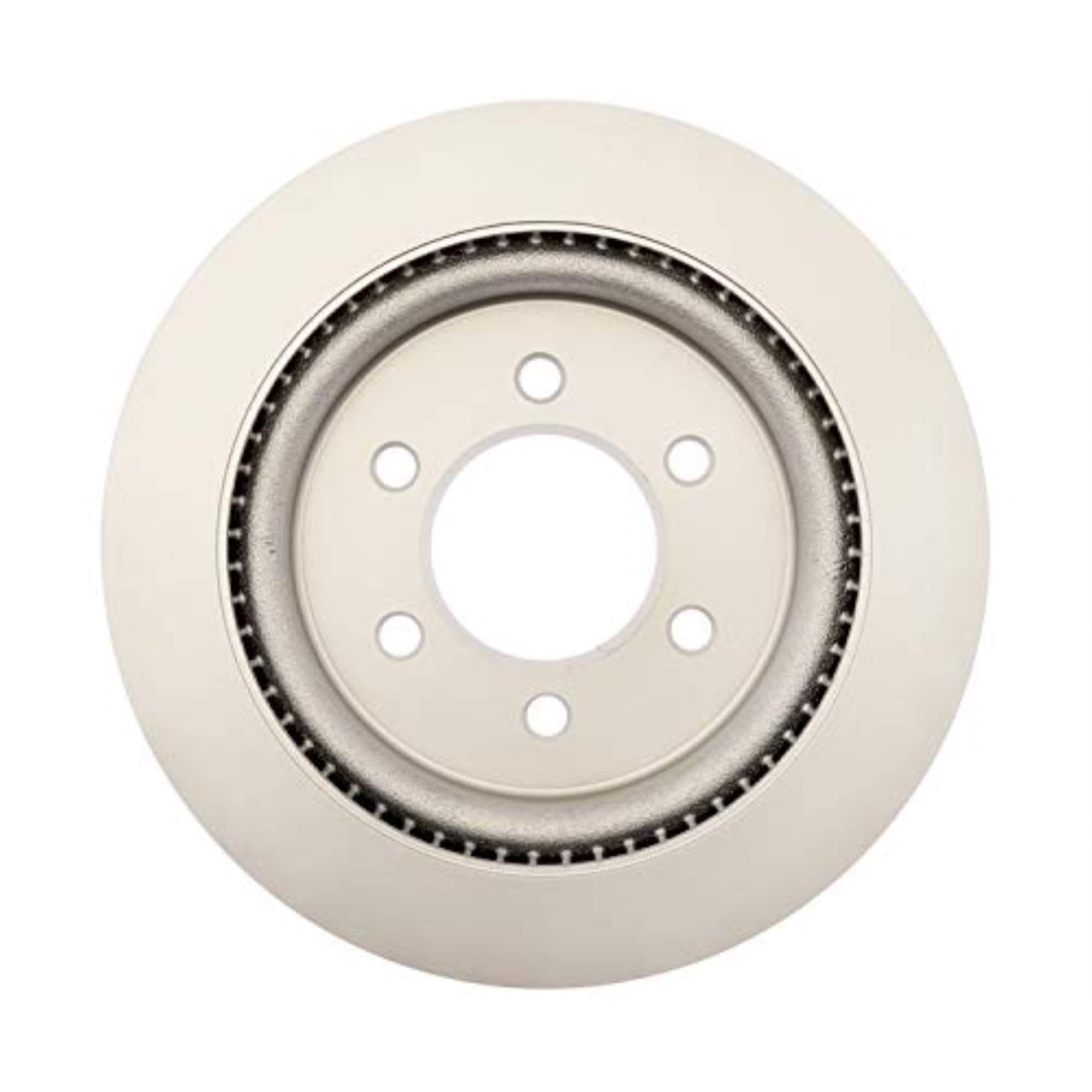

Raybestos 682263 Specialty Vented Rear Disc Brake Rotor

The Raybestos 682263 Specialty Vented Rear Disc Brake Rotor is engineered specifically for truck applications requiring superior noise control and durability. Part of the Raybestos Specialty - Truck Coated line, this rear brake rotor features a protective coating that provides excellent corrosion resistance against road salt and harsh weather conditions.

Key Features:

• Application-specific damped iron construction suppresses noise and vibration for smooth, quiet braking performance
• Vented rotor design with vehicle-specific cooling vane configuration for superior heat dissipation
• Protective coating prevents rust and corrosion, extending rotor service life
• G3000 qualified material meets SAE standards for tensile strength and structural integrity
• Installation-ready turned finish minimizes noise and improves brake responsiveness
• Lateral runout of 0.002 inches or less reduces pedal pulsation and extends pad life
• Thickness variation less than 0.0004 inches ensures consistent braking performance

Specifications:

• Outside diameter: 13.228 inches (336mm)
• Inside diameter: 9.646 inches (245mm)
• Overall height: 1.772 inches (45mm)
• Discard thickness: 0.886 inches (22.5mm)
• Nominal thickness: 0.945 inches (24mm)
• Center hole diameter: 3.547 inches (90.1mm)
• Mounting bolt holes: 6 holes with 5.315-inch bolt circle diameter
• Construction: Full cast, vented rotor style
• Quantity sold: Individually (2 required per application)

This brake rotor is engineered to meet or exceed OEM specifications for fit, form, and function, making it a direct replacement part. Cross-references OEM part numbers Ford JL3Z2C026A and JL3Z2C026B.
