EVO Mfg EVO-3015BIL 2.5 Inch High Clearance Long Arm Lift Kit with Bilstein Shocks

The EVO Manufacturing 2.5 inch High Clearance Long Arm suspension system transforms your Jeep Wrangler JL Unlimited with professional-grade lift components designed for superior clearance, optimal geometry, and enhanced off-road capability. This complete long arm kit delivers 2.5 inches of lift while maintaining smooth ride quality and maximizing ground clearance through innovative bracket design.

EVO's specifically engineered bracketry prioritizes ground clearance throughout the suspension system. Front long arms mount tucked nearly flush with the frame bottom, positioned inches above stock mounting locations. Rear long arm brackets mount on the side of the frame rather than the bottom, providing exceptional clearance over factory positions. Both control arm and axle mounting points are raised to prevent trail damage and maximize articulation.

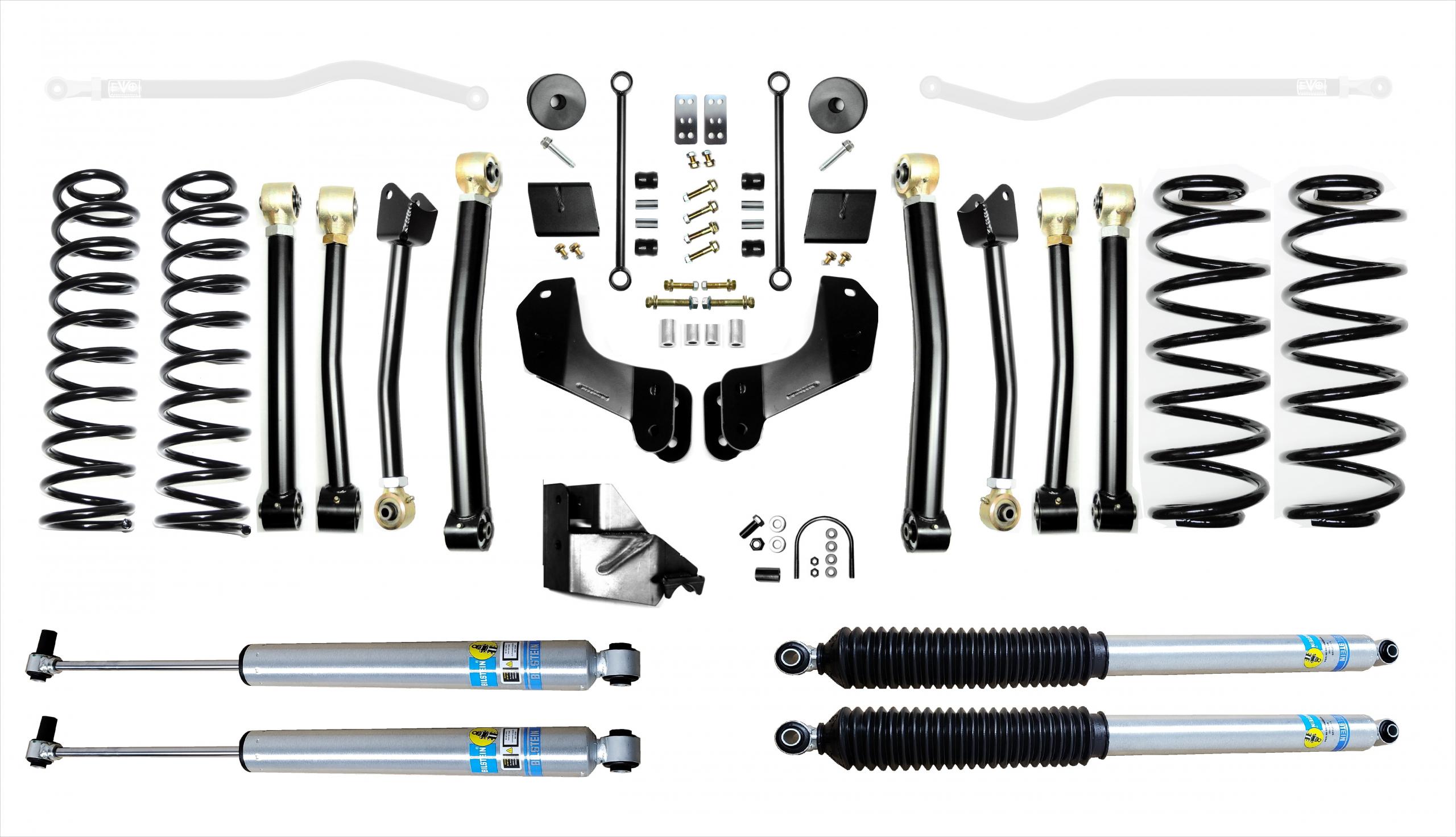

Complete Kit Includes:

• Front and rear long arm control arms with Johnny Joints both ends
• Bilstein 5100 series shocks (four corners)
• Laser-cut mounting brackets with full-length weld surfaces
• Front brake line extension brackets
• Rear sway bar end links
• Front and rear bump stop extensions
• EVO1 on-vehicle adjusters for simplified alignment

All lower long arms are constructed from industry-leading 2.0 inch x .281 inch wall steel DOM tubing for maximum strength. Johnny Joints on both ends provide unrestricted articulation without the limitations of rubber bushings. The EVO1 adjuster system allows control arm length adjustments while fully installed on the vehicle, making alignment fast and convenient.

Mounting brackets align to the frame using existing factory holes for precise positioning, then bolt into place before welding. Cutting, grinding, and welding required. No exhaust cutting needed on 3.6L Wrangler JLU models (minor flange clearancing may be required). No driveshaft modifications required with included Bilstein shocks.

Accommodates up to 37 inch tires on Rubicon models or 35 inch tires on Sahara and Sport/S models. Larger tire clearance possible with aftermarket fenders or trimming. Requires wheel spacers or aftermarket wheels with reduced backspacing. Some minor inner liner trimming may be needed depending on tire size.

Designed for 2018-current Jeep Wrangler JL Unlimited (4-Door) models with 3.6L engine. Lift height based on 4-Door Rubicon; Sport and Sahara models may see slightly higher lift and will match Rubicon overall height. Made in USA.
