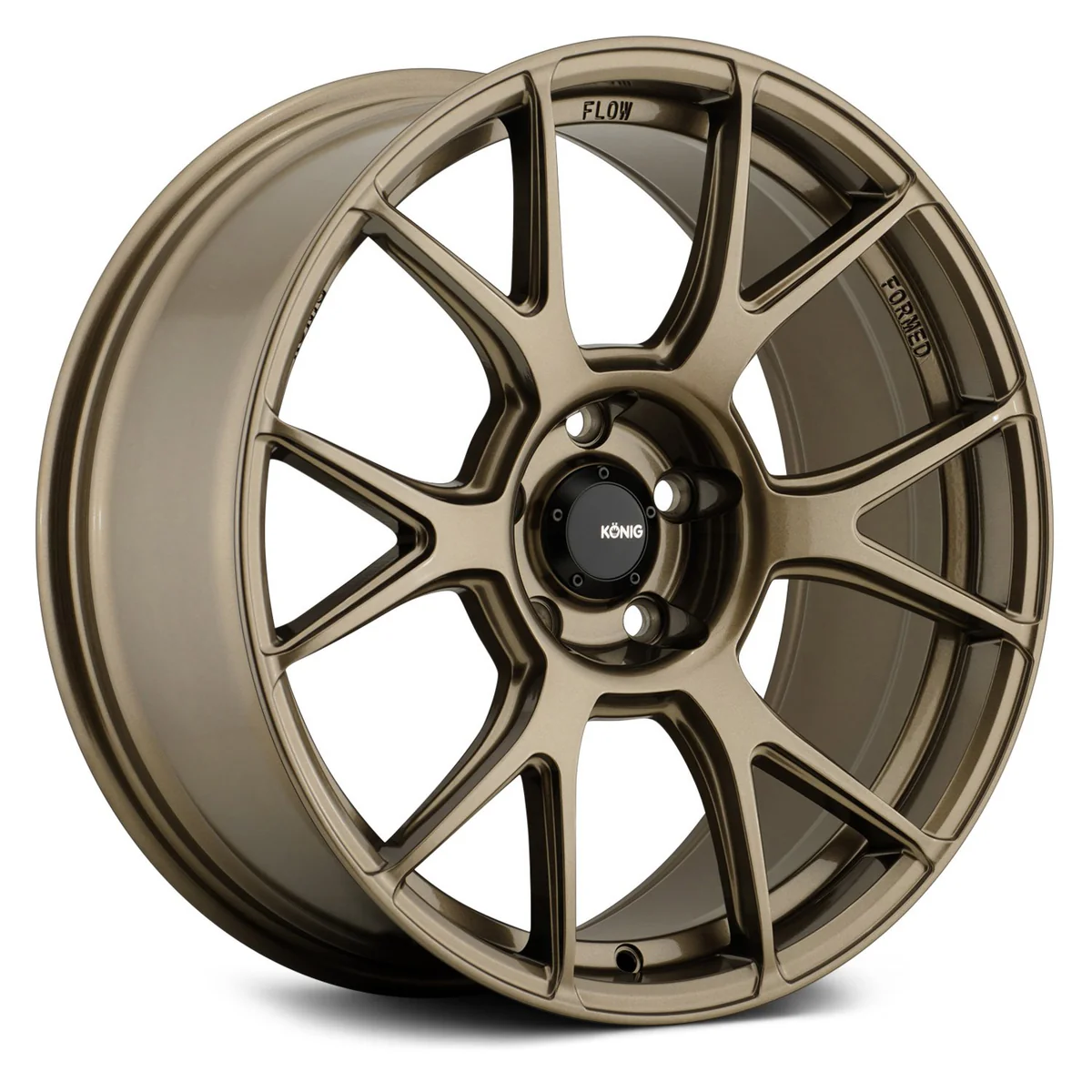

Konig AM99514258 Ampliform Flow Formed Wheel Gloss Bronze Offset - 19x9.5 5x114.3 25mm

The Konig Ampliform is a mesh-inspired, flow-formed wheel design meticulously crafted for ultimate strength, lightweight performance, and track-ready durability. This six-spoke wheel features a split spoke design, with symmetrical splits giving it a twelve-spoke look along with its five-spoke face without becoming too busy or cluttered. Developed with input from racers and motorsport professionals, the Ampliform redefines performance wheels with its bold mesh structure and striking aesthetic.

Flow Form Technology:

Konig's Flow Formed Technology is a multistep process starting with a narrow cast wheel that is spun under heat while applying pressure to create a strong, lightweight wheel, mimicking the forging process in which the aluminum molecules are compressed resulting in a lighter and stronger wheel with greater shock resistance and elongation properties.

Key Specifications:

• Wheel Size: 19x9.5 inches
• Bolt Pattern: 5x114.3 (5x4.5")
• Offset: +25mm (ET25)
• Hub Bore: 73.10mm
• Backspacing: 6.23 inches
• Wheel Weight: 23.80 lbs (approximate)
• Load Rating: 1521 lbs
• Construction: One-Piece Rotary Forged
• Finish: Gloss Bronze

Design Features:

• Ample brake clearance that seamlessly accommodates big brake kits
• A Profile design delivers a flatter spoke configuration with enhanced brake clearance and higher offsets
• Spokes are elevated at the edge of the wheel, acting as the focal point
• Optimized using Finite Element Analysis (FEA) to maximize wheel weight, increase strength and rigidity

Backed by manufacturer's lifetime structural warranty and 1-year finish warranty. UPC: 043482220283
