Fuelab 25313 500lph In-Tank Brushless Fuel Pump Kit with 3/8 SAE Outlet

The Fuelab 25313 Universal In-Tank Brushless Fuel Pump Kit is a complete high-performance fuel system solution designed to support up to 1500 horsepower. This compact in-tank brushless fuel pump delivers up to 500 liters per hour at 3 bar of pressure, making it ideal for demanding EFI applications requiring reliable, high-flow fuel delivery.

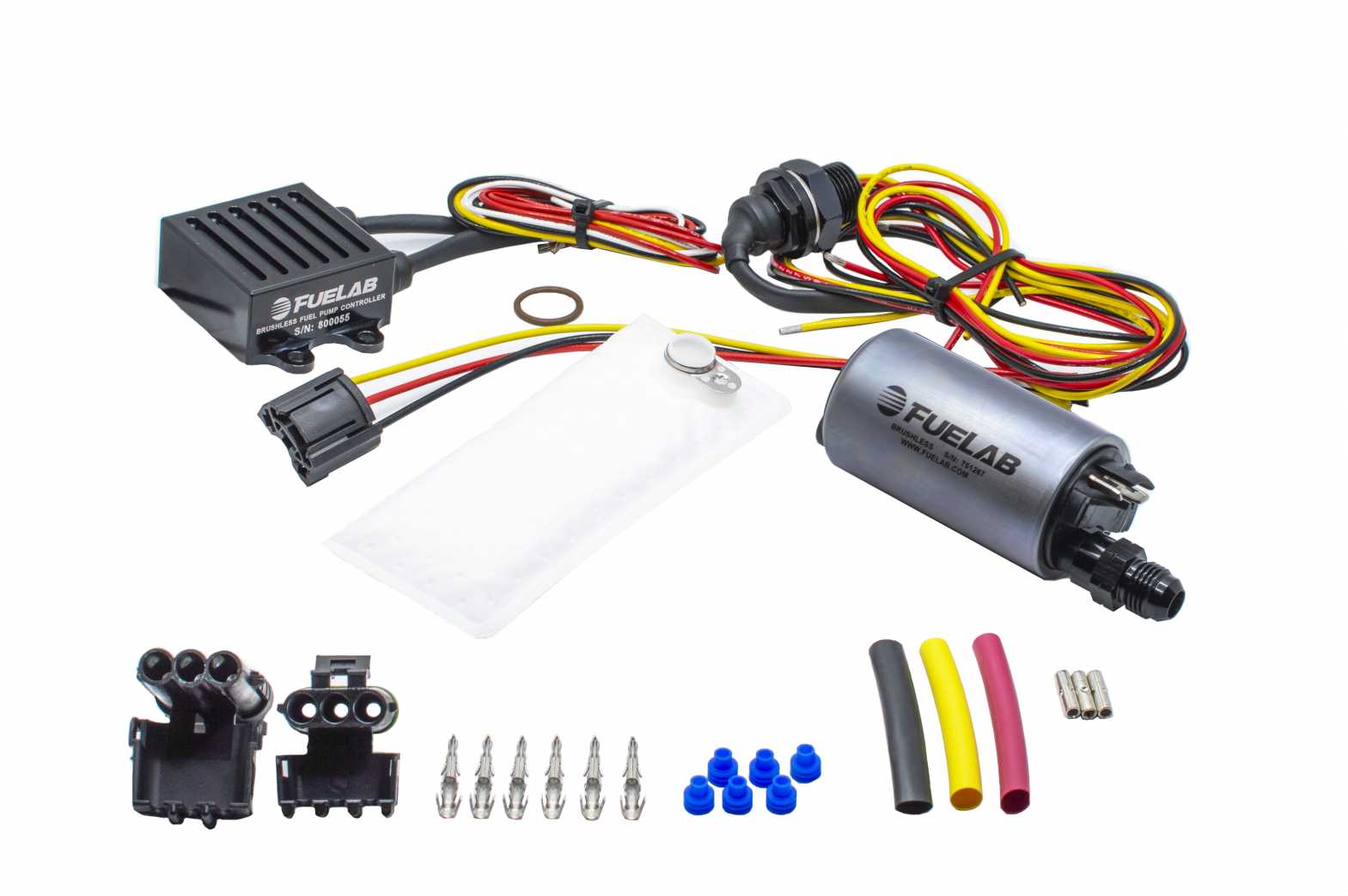

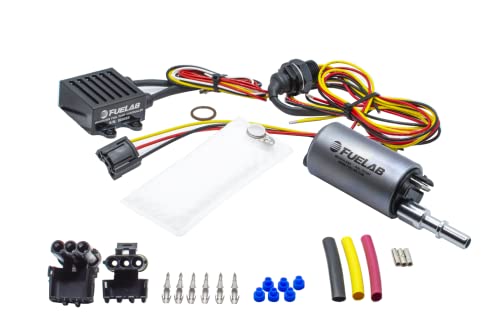

Complete Installation Kit Includes:

• 496 Series 500lph brushless fuel pump with 3/8" SAE outlet
• 72004 PWM brushless pump controller (25 amp)
• 74101 hermetic electrical bulkhead connector (14GA feed-thru)
• Pre-filter with mounting hardware
• Wire lead harness
• Complete installation hardware

Performance Specifications:

• Flow rate: 500 LPH at 3 bar, 13.5v (132 GPH at 45 psi)
• Maximum pressure: 8.6 bar (125 psi)
• Compatible with gasoline, E85, and methanol
• Suitable for both carbureted and EFI applications
• Compact 41.5mm diameter design

Key Features:

• Designed to fit within factory and aftermarket fuel pump hangers or modules with ease
• Brushless motor technology for improved reliability and efficiency
• Each fuel pump is individually tested for performance and includes flow and current draw report
• PWM controller allows for precise fuel pressure management
• Hermetic feed-thru connector ensures reliable electrical connections in fuel tank environment
• Backed by Fuelab's limited lifetime warranty

Installation Notes:

• Requires the use of a bypass-style fuel pressure regulator and return line
• Some modifications may be required for specific applications
• External PWM controller must be mounted outside fuel tank
• Universal design for custom fuel system installations

The Fuelab 25313 kit provides everything needed to upgrade to advanced brushless fuel pump technology. Its compact design allows for easy retrofitting into existing OEM fuel pump modules, while the included PWM controller ensures precise fuel delivery across a wide range of operating conditions. Ideal for high-horsepower builds, flex-fuel conversions, and performance applications requiring reliable, high-volume fuel delivery.
