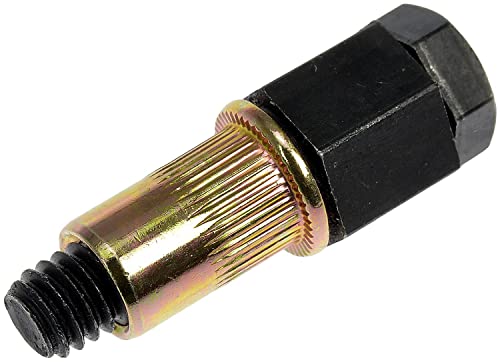

Dorman 963-263D Rivet Nut Tool SAE 5/16-18 Thread Setter

Manufacturer

Picture for manufacturer Dorman

Part Number

963-263D
8 reviews
Sale Price

$6.72

2 left at this price

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Dorman 963-263D rivet nut tool provides a simple, cost-effective solution for installing rivet nuts without expensive specialized equipment. This manual rivet setter is designed for SAE 5/16-18 threaded rivet nuts, making it ideal for automotive repairs, fabrication work, and assembly applications where traditional fastening methods aren't practical.

Key Features:

  • Corrosion-resistant steel construction for long-lasting durability
  • Precision-threaded to exact tolerances for proper fit and function
  • SAE 5/16-18 thread specification
  • Simple operation requires only a standard wrench
  • Includes one 5/16-18 rivet nut to get started
  • Eliminates the need for costly pneumatic or hydraulic rivet tools

How It Works:

Installation is straightforward: mount the rivet nut onto the tool's threaded bolt, insert the setter into the pre-drilled hole in your workpiece, then turn the bolt end with a wrench to compress and set the rivet nut securely. This creates a strong threaded insert in thin materials like sheet metal, plastic, or composite panels where traditional nuts and bolts cannot be used.

This tool is perfect for mechanics, fabricators, and DIY enthusiasts who need an occasional rivet nut installation solution without investing in expensive pneumatic equipment. The compact design makes it easy to use in tight spaces where larger tools won't fit.

Products specifications

Grade Type

Specialty

Shank Length

0.55

Type

Cap Screw

Specialty

Yes

Partially Threaded

Yes

Heat Hardened

No

Thread Length

0.93

FQA Compliant

No

Thread Type

Coarse

Length

1.68 in

Threads per Inch

18

Head Shape

Hex

SAE or Metric

SAE

Thread Direction

Right Hand Thread

Callout Size

5/16-18

Finish

Black

Overall Length

1.68

Partial Thread

Yes

Thread Size

5/16-18

Bolt Grade

0

Thread Diameter

0.312

Head Diameter

0.5

Washer Attached

No

Head Tool Size

0.5

Color

Black

Thread Pitch

0

Grade

0

Package Contents

1 Rivet Nut Tool (1 bolt; 1 Free Spinning Nut; 1 Spare Rivet)

Head Type

Hex

Material

Steel

Depth

1 in

Grade

Grade 5

Thread Diameter

5/16 in

Callout Size

5/16-18 in
