Edelbrock 77485 Victor Jr 24 Degree Aluminum Cylinder Head Big Block Chevy 106cc

Manufacturer

Part Number

77485
Black Friday Price

$1,570.95

Estimated ship date Friday, December 04

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

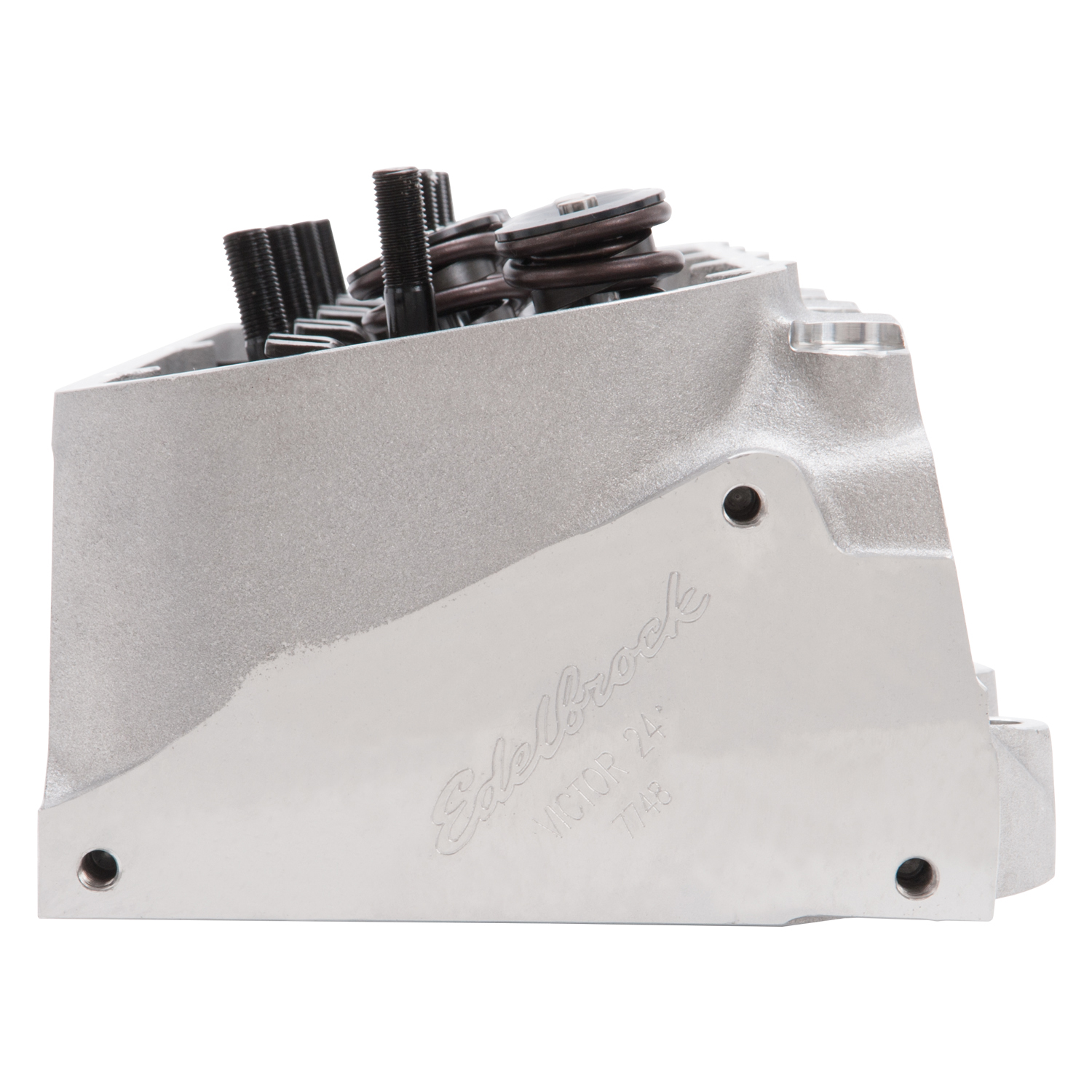

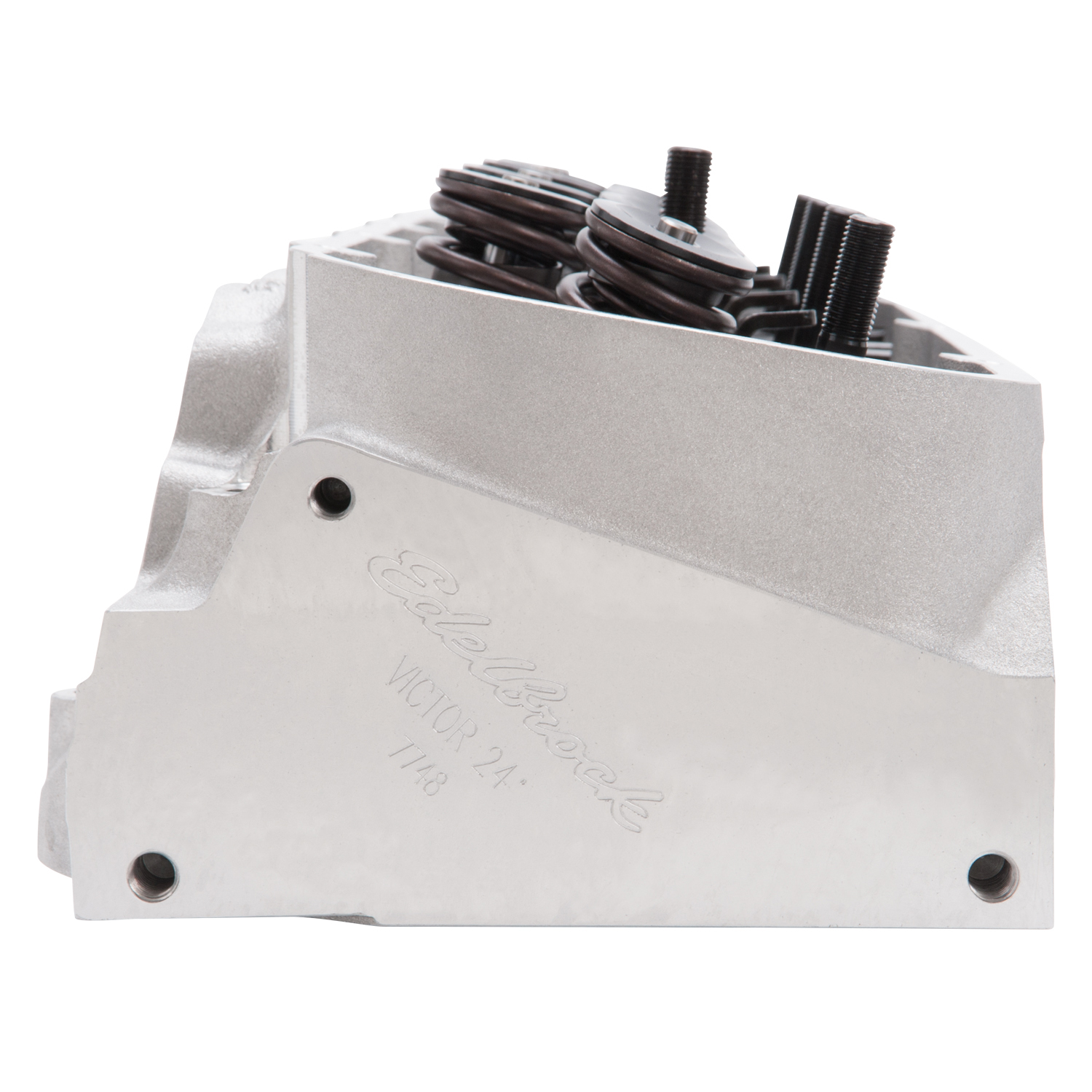

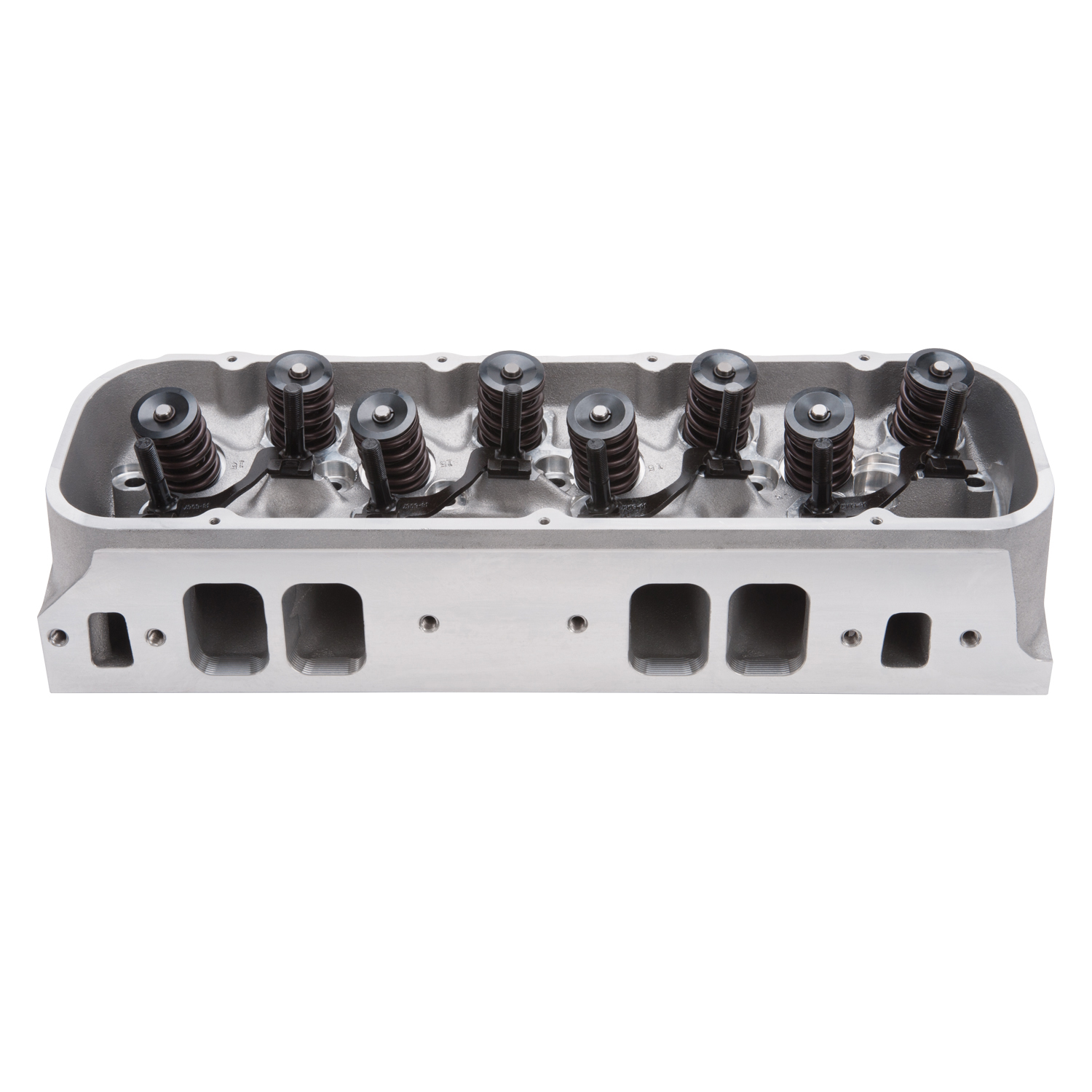

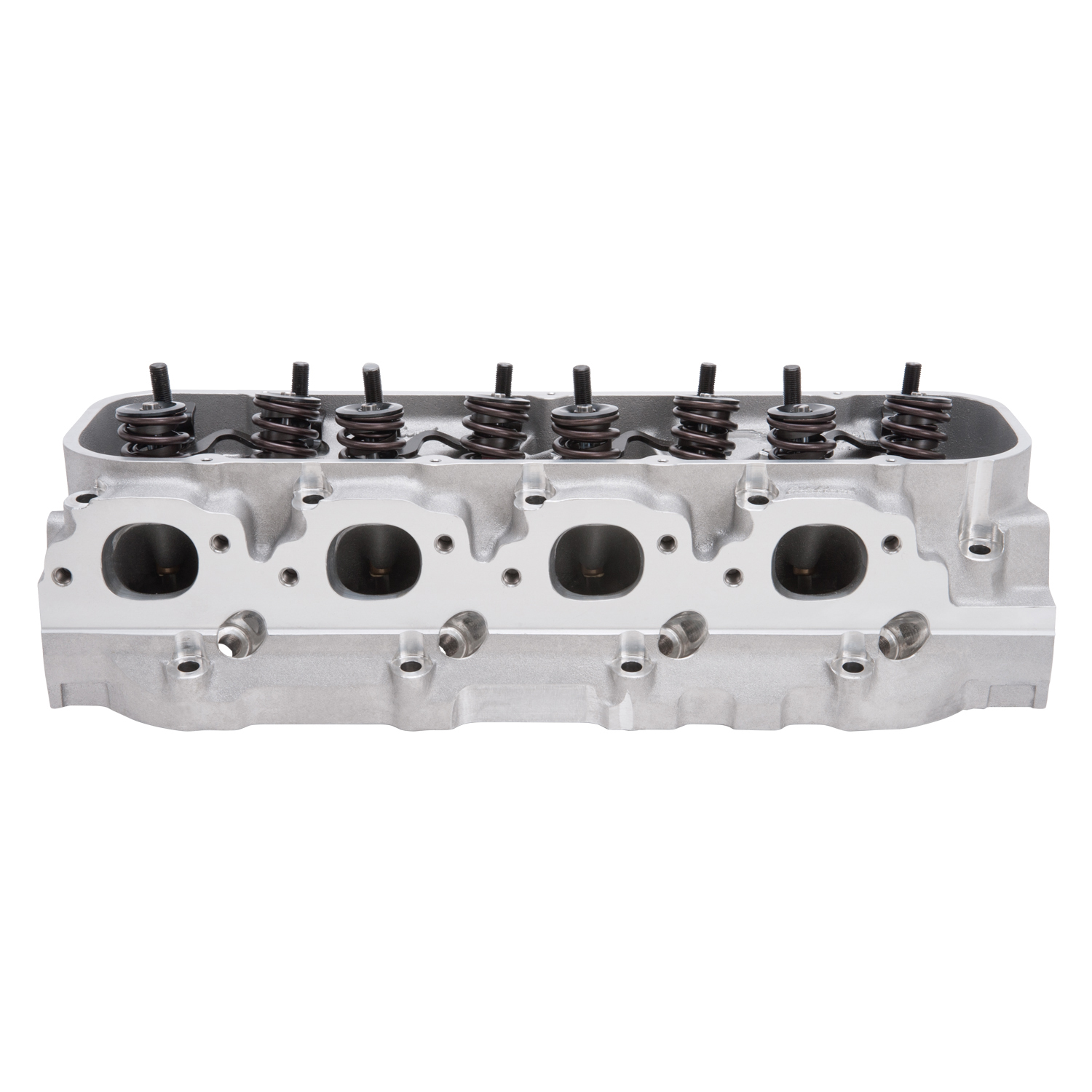

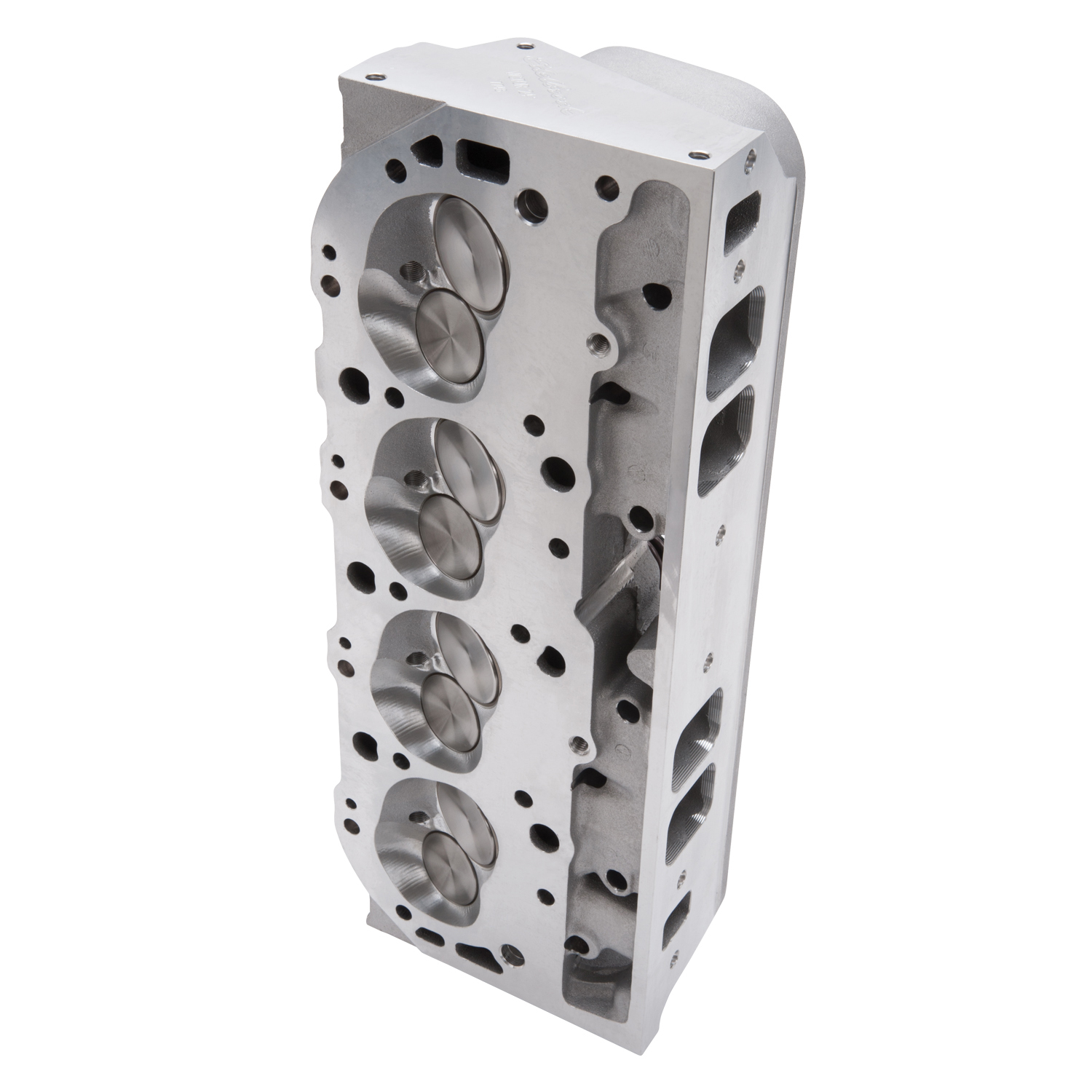

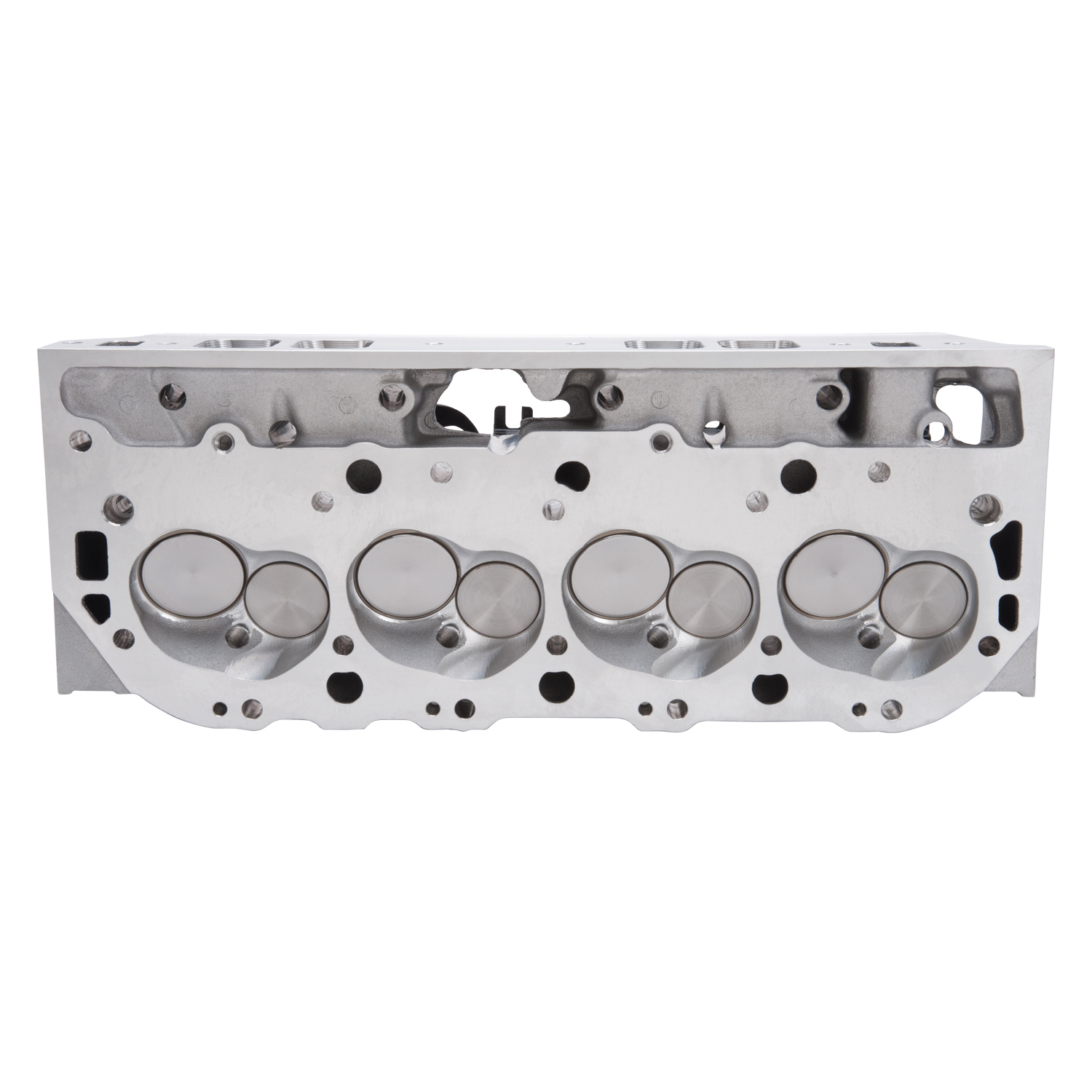

The Edelbrock 77485 Victor Jr. 24 Degree cylinder head is a complete, assembled aluminum cylinder head engineered for high-performance Big Block Chevy 396-502 V8 engines. This heavy-duty casting features an extra thick deck and extra material in the spring pockets for use with high-lift cam and heavy spring combinations.

Key Features:

  • 106cc combustion chamber volume with 300cc rectangular intake ports and 128cc exhaust ports
  • Includes 2.250-inch intake valves and 1.900-inch exhaust valves with 11/32-inch stems
  • Equipped with valve spring packages designed to suit hydraulic roller cams
  • Valve springs and stainless steel retainers allow valve lifts up to .700 inch
  • Exhaust port exits are raised .534 inch to greatly improve exhaust flow and power
  • Optimized for competition engines up to 510 cubic inches with 4.250-inch bores or larger

These cylinder heads are ideal for throttle control devices common in Super class racing applications. Manufactured from A356 aluminum alloy and made in the USA, the Victor Jr. 24 Degree heads deliver impressive airflow and power for serious big-block competition engines. Sold individually.

Products specifications

CNC Ported

No

Exhaust Runner Volume

129

Material

Aluminum

Exhaust Port Location

+0.500

Valve Angle

24

RGL

WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.

Quantity

Sold individually

Deck Thickness

0.5625

Push Rod Diameter

(Suggested) 0.375

Retainer Included

Yes

Seat Angle

Exhaust 45 deg/Intake 45

Combustion Chamber Volume

106

Series

Victor Jr.

Valve Spring Maximum Lift

0.700

Guide Plate Material

Hardened Steel

Horsepower

600-800

Valve Spring Diameter

1.55

Rocker Stud Diameter

0.4375

Intake Valve Diameter

2.25

Grade Type

Performance

EGR Port

No

Valve Stem Diameter

0.3438

Flange Type

Rectangle Intake

Construction Type

Complete

Family

Victor Jr.

Guide Material

Manganese Bronze

Valve Included

Yes

Seat Material

Ductile Iron

Camshaft Type

Hydraulic Roller

Intake Runner Volume

300

Exhaust Valve Diameter

1.90

Valve Springs Included

Yes

Guide Plates Included

Yes

Rocker Arm Stud Diameter

0.4375
