King Engine Bearings MB5737XP STDX Racing Tri-Metal Main Bearing Set GM 231 CI V6 OHV

(Chevrolet Camaro 1995-2002, Impala 2000-05, Monte Carlo 1998-2005, Lumina 1998-99, Lumina APV 1992-95, Lumina Van 1995-96 + 28 more models)

Manufacturer

Part Number

MB5737XP STDX
Black Friday Price

$223.23

Estimated ship date Friday, December 04

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The King Engine Bearings MB5737XP STDX is a racing-grade tri-metal crankshaft main bearing set engineered for the General Motors 231 CI V6 OHV engine. Built with King's XP pMax Black tri-metal construction, this set delivers the elevated load capacity and fatigue resistance demanded by high-performance and racing applications. The STDX sizing provides standard journal diameter with an extra 0.001" of oil clearance for improved lubrication in demanding builds.

This set includes additional lower shells to accommodate multiple engine variants: engines up to 1994, 1994–1995, and 1995–2004 production years, making it a versatile solution across a wide range of GM 231 V6 builds.

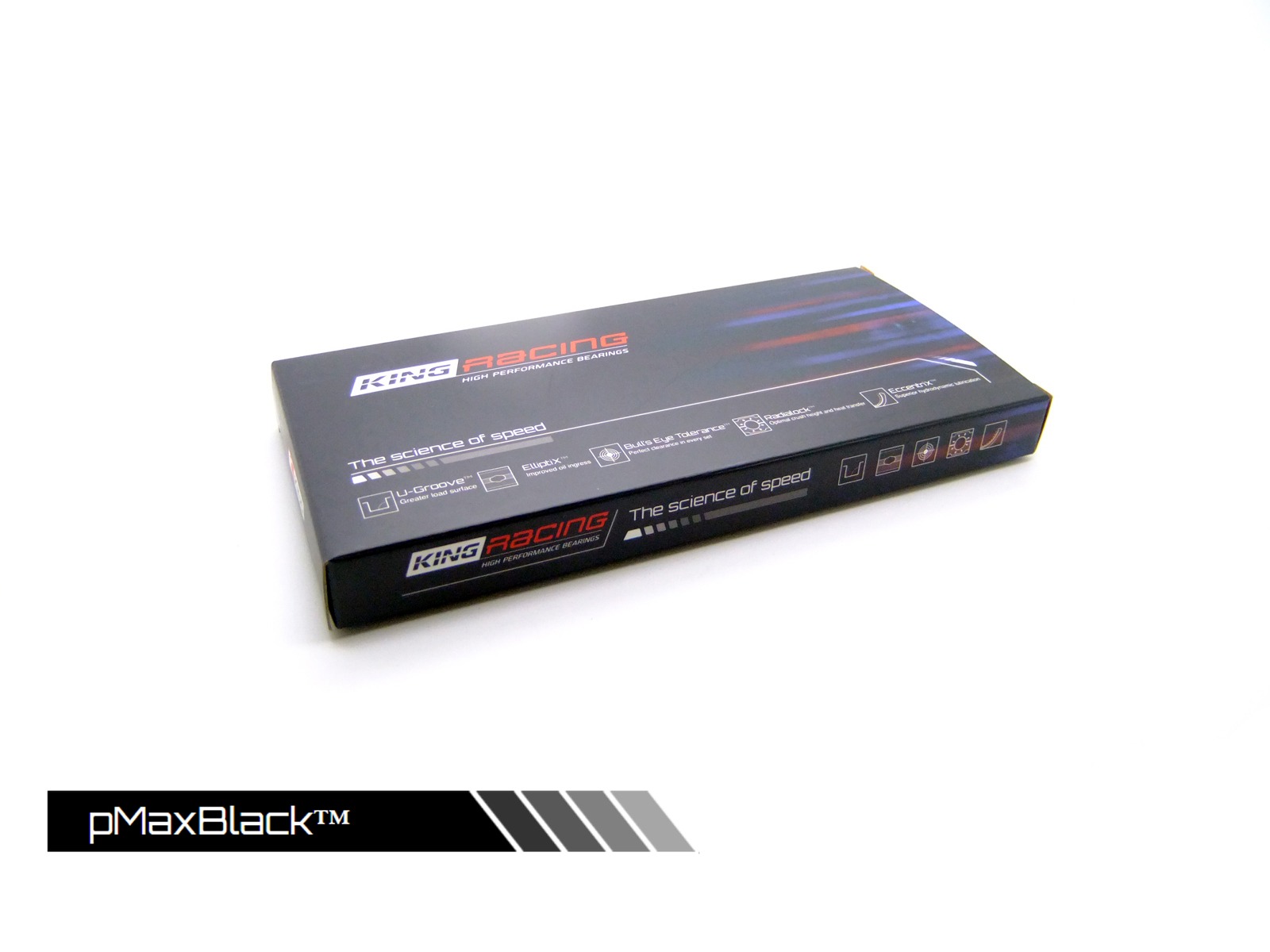

XP pMax Black Tri-Metal Technology:

  • Tri-metal Lead Bronze construction — copper-based intermediate layer with elevated 4.5% tin content, 22% harder than standard race bearings at 115 HV
  • Intermediate layer load capacity of 17,000 PSI — significantly exceeds the 8,000–8,500 PSI typical of standard high-performance bearings
  • pMax Black overlay — contains 5% copper and undergoes a proprietary nano-scaled hardening process that creates a black fatigue-resistant shield
  • 10,200 PSI overlay load capacity — a 24% increase over conventional race bearing overlays (8,000–8,500 PSI)
  • 29% harder overlay at 18.1 HV versus the 11–14 HV of standard high-performance bearings
  • STDX sizing — standard crankshaft journal diameter with +0.001" extra oil clearance built in
  • Radialock technology for optimal crush height and positive shell retention
  • Ideal for circle track, drag racing, off-road, and off-shore applications using steel crankshafts
  • Available in STD, STDX, .001", .010", and .020" undersizes

King Engine Bearings has specialized exclusively in engine bearings since 1960, applying racing-derived innovations to deliver precise wall thickness tolerances of ±0.0001" — far tighter than industry standard. The MB5737XP STDX is the choice for engine builders who demand consistent oil clearance and maximum bearing life under extreme loads.

Products specifications

Fits

Chevrolet Camaro 1995-2002, Impala 2000-05, Monte Carlo 1998-2005, Lumina 1998-99, Lumina APV 1992-95, Lumina Van 1995-96; Pontiac Firebird 1995-2002, Grand Prix 1997-2008, Grand Am 1992-93, Bonneville 1988-2005, Trans Sport 1992-95 + 23 more models

Material

pMax Black (racing line)

Flange Oversize

FL STD

Undersize

STDX

Shaft UnderSize

STDX

STD Shaft Diameter

0.00 / 0.00 mm || 0.000 / 0.000 inch

Housing Diameter

68.27 / 68.25 mm || 2.688 / 2.687 inch

STD Max Thickness

2.372
