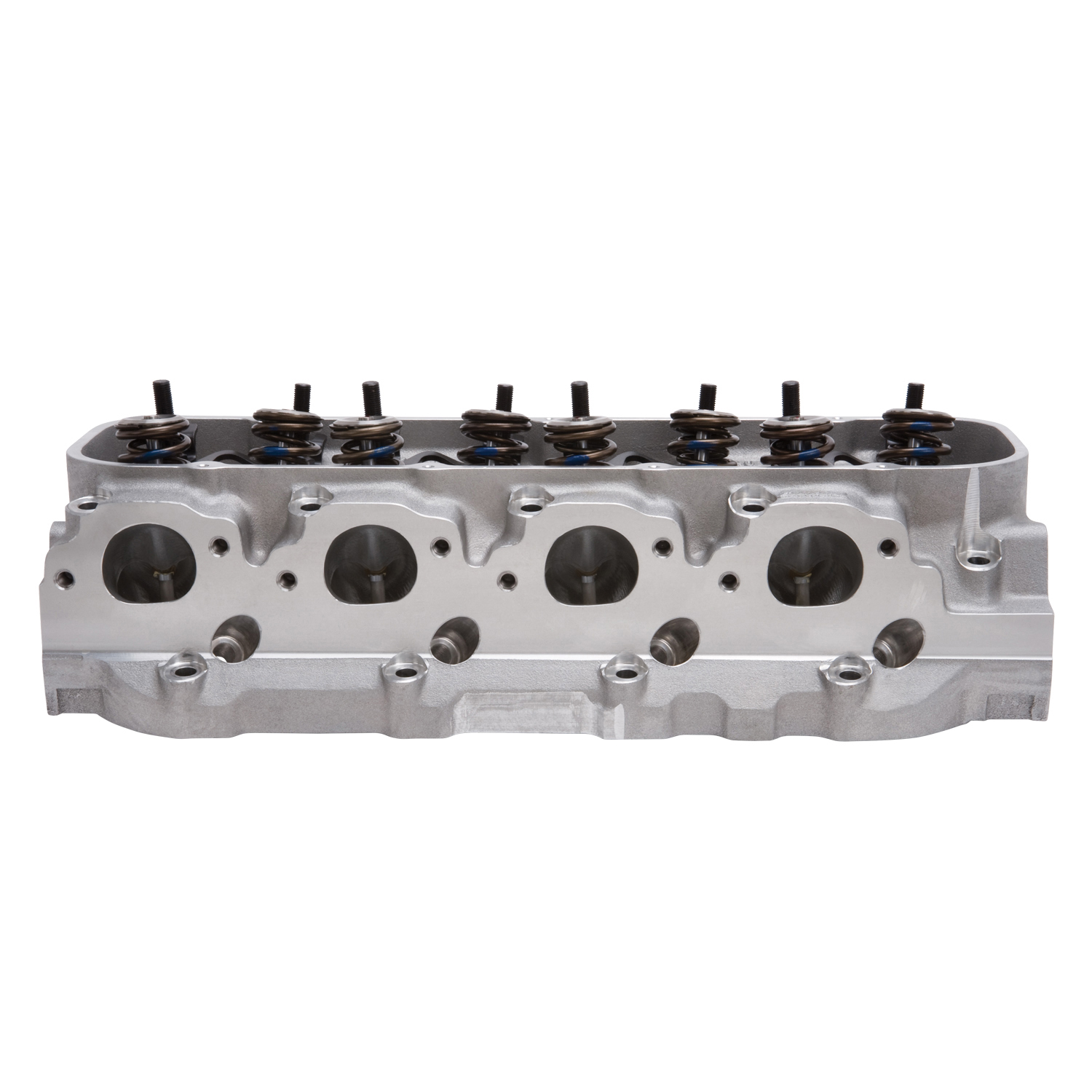

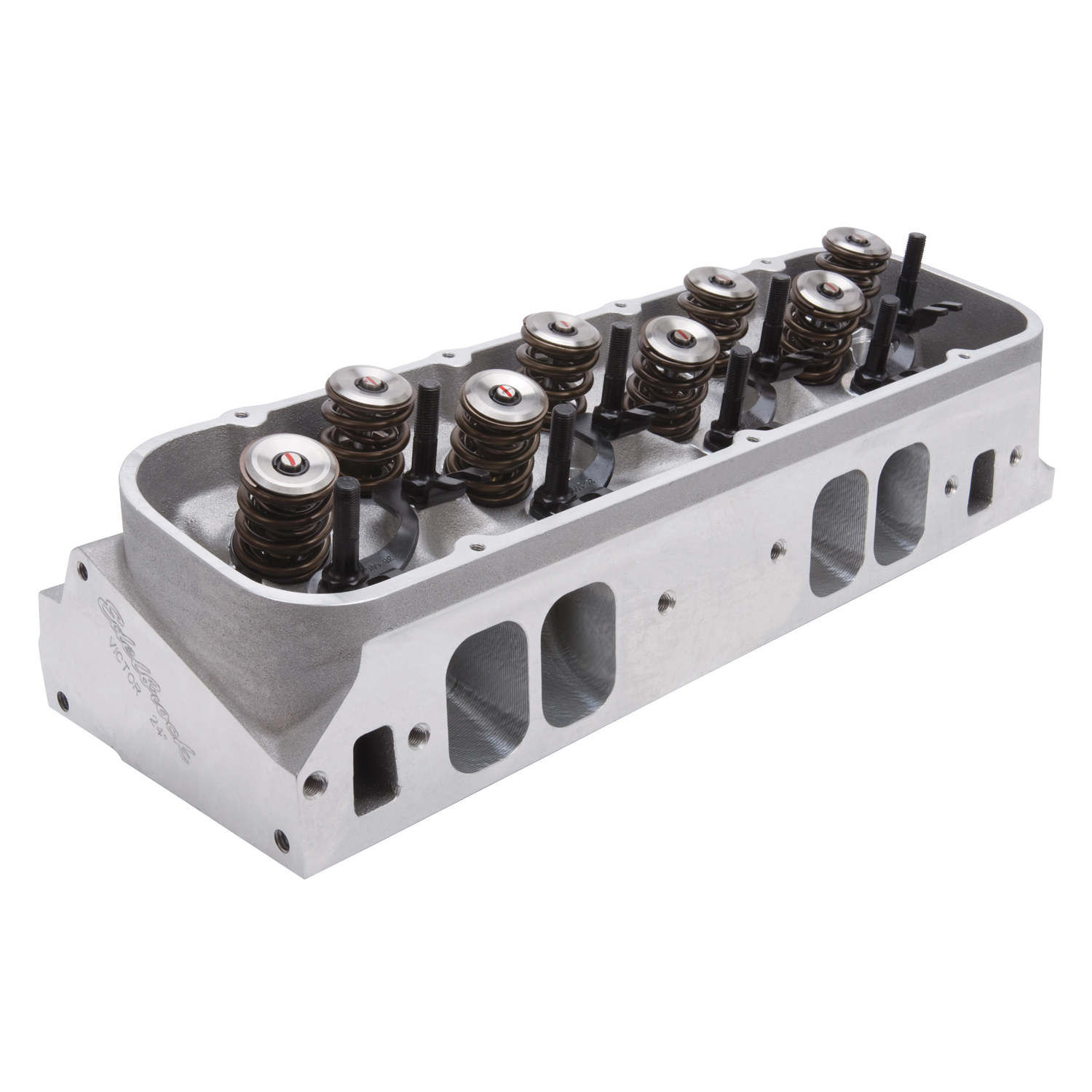

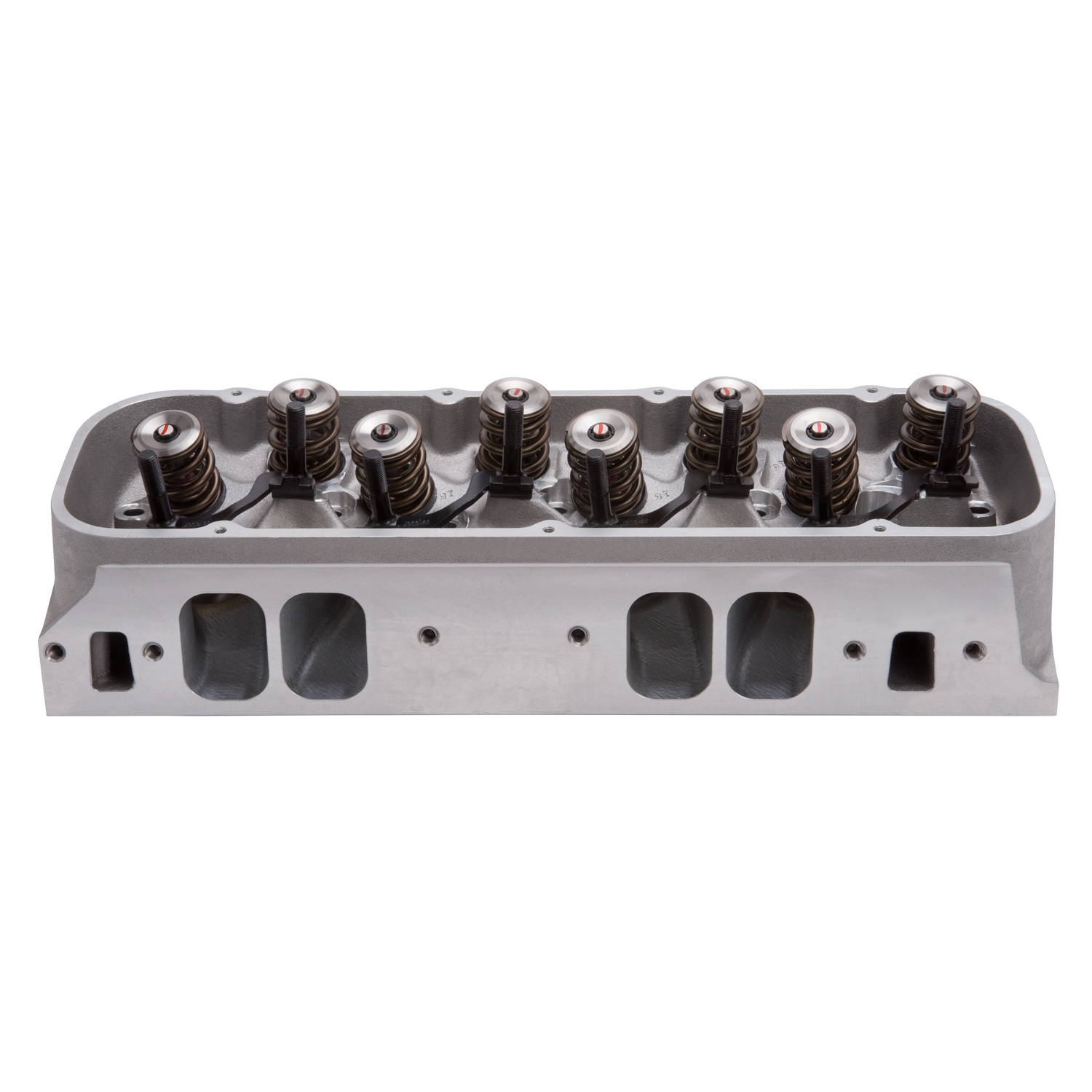

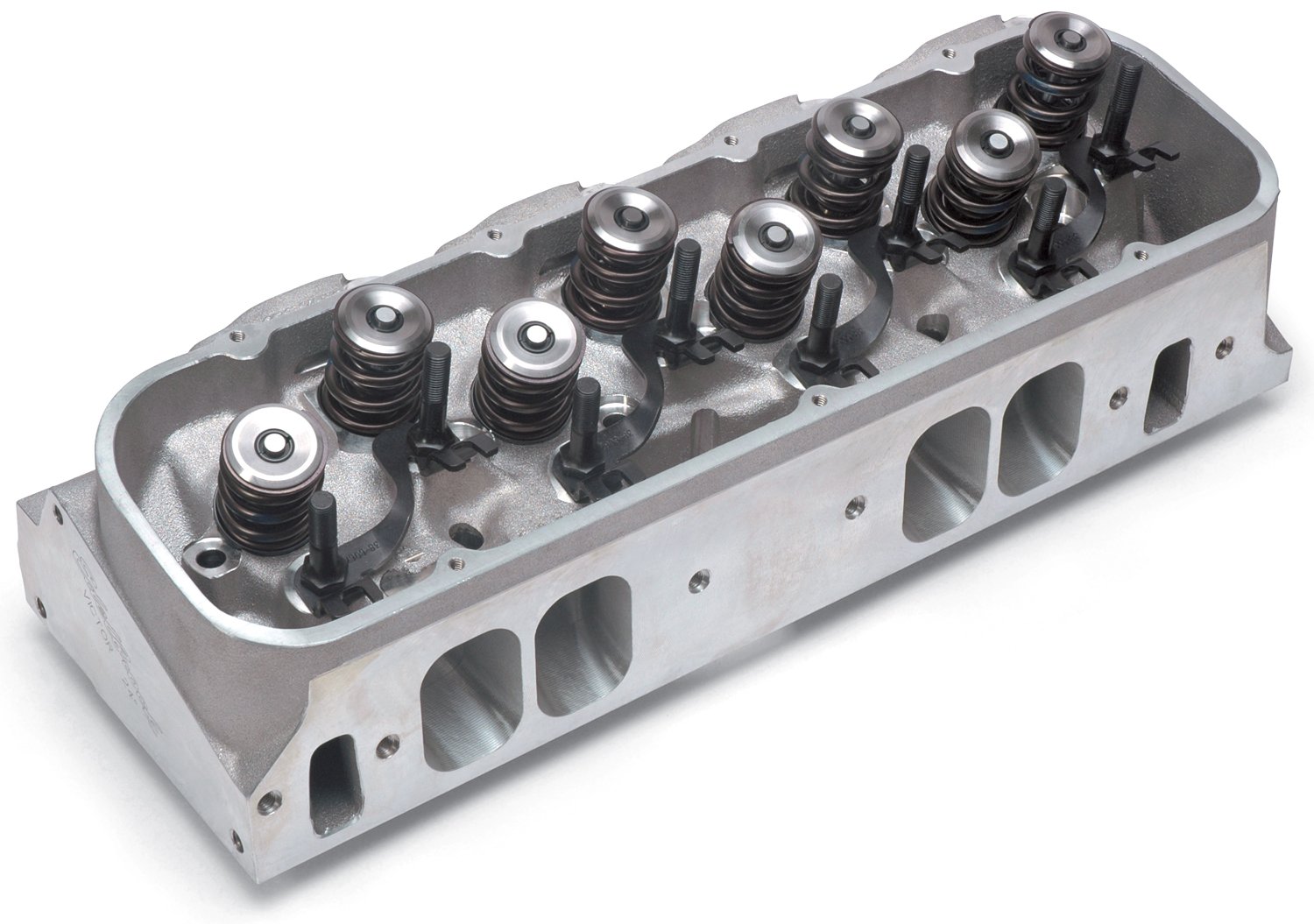

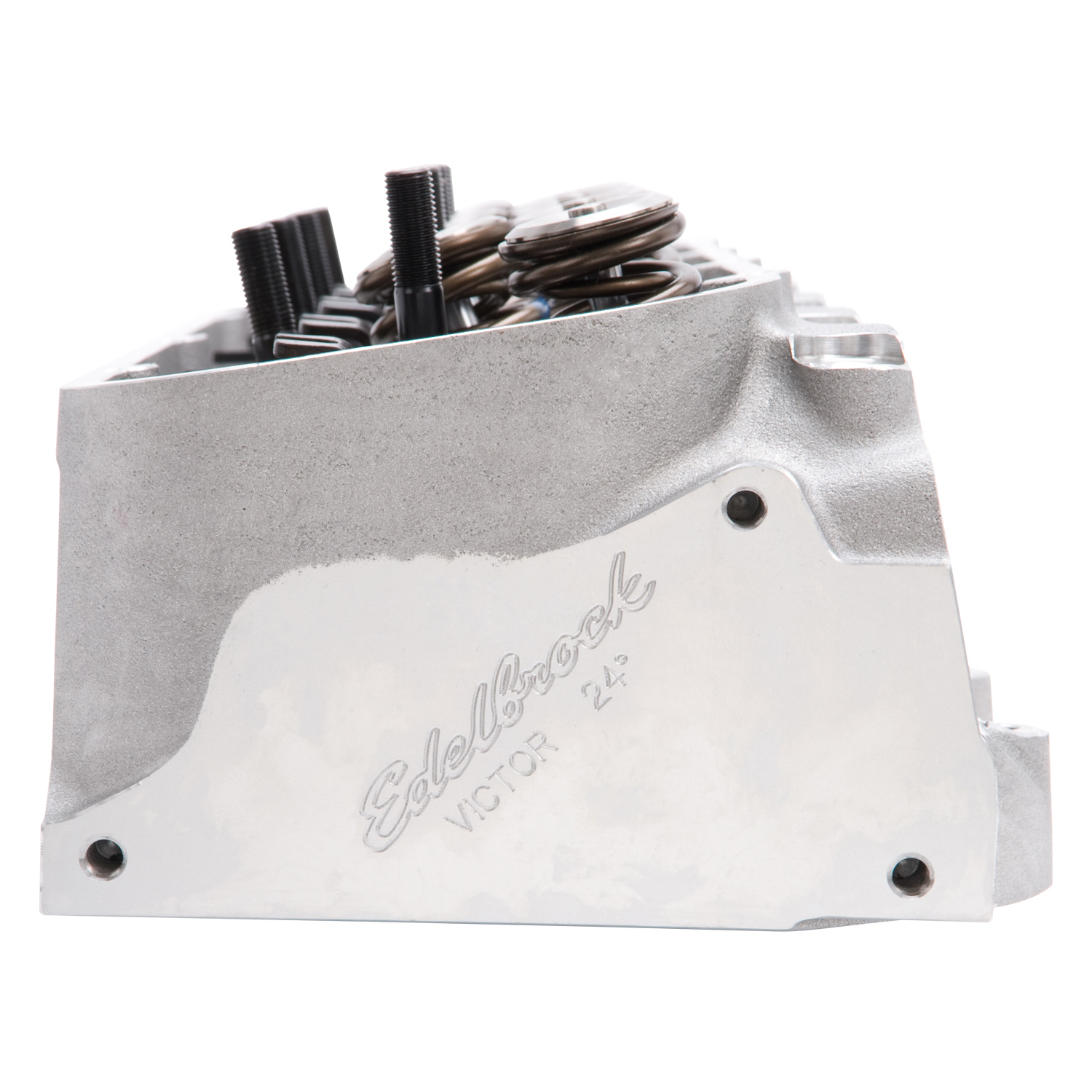

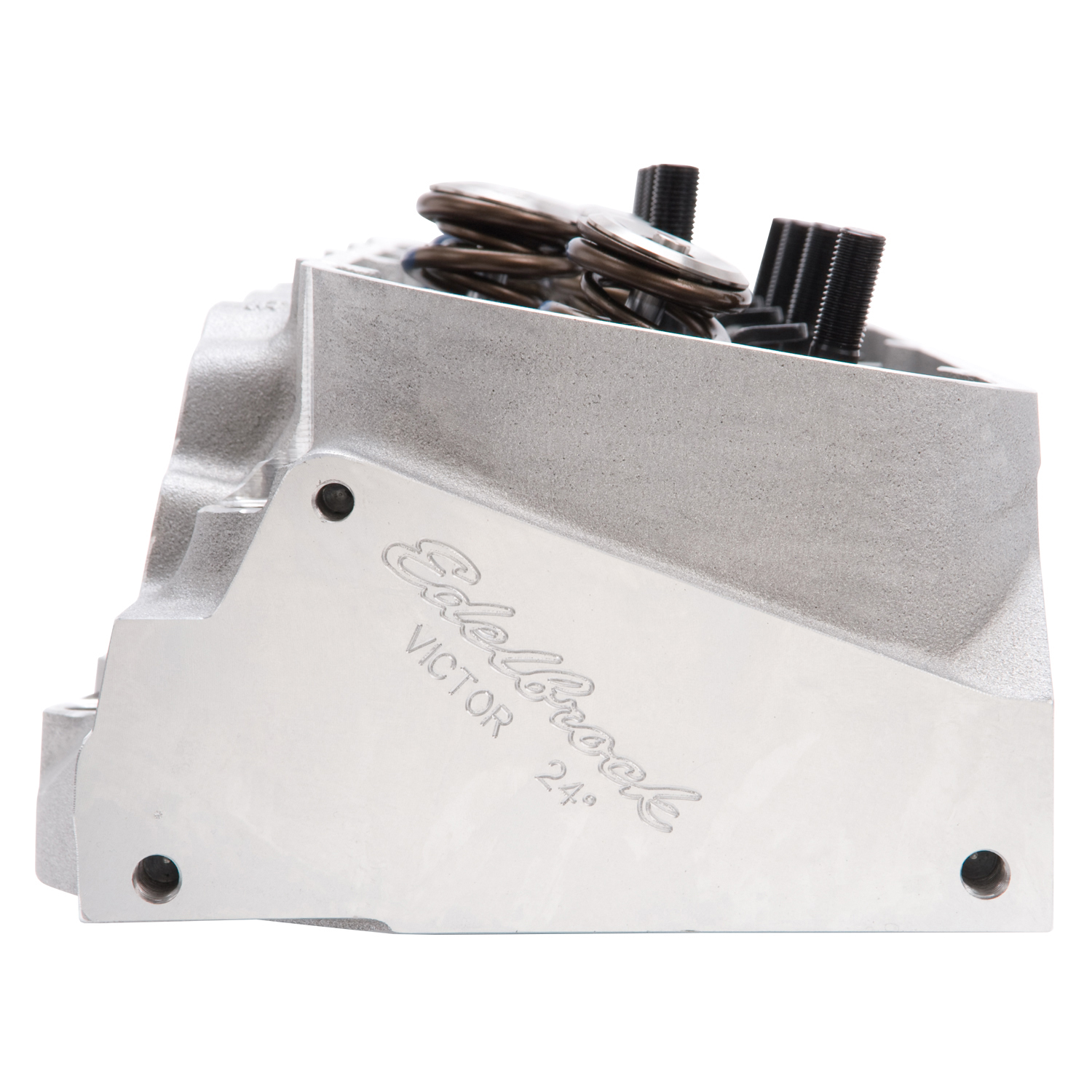

Edelbrock 61409 Victor Musi 24° CNC Big Block Chevy Cylinder Head

Manufacturer

Part Number

61409
Black Friday Price

$1,864.81

Estimated ship date Friday, December 04

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Edelbrock Victor Musi 24° CNC Cylinder Head represents a collaboration between Edelbrock and Pat Musi Performance to deliver a premium big-block Chevy cylinder head with standard intake port location. Engineered for serious performance applications, this head features an extra-thick deck surface and reinforced spring pockets to handle extreme valve train loads from high-lift camshafts and heavy-duty spring combinations.

Key Features:

  • Large oval port design with 367cc intake runners and 377cc exhaust runners for exceptional airflow

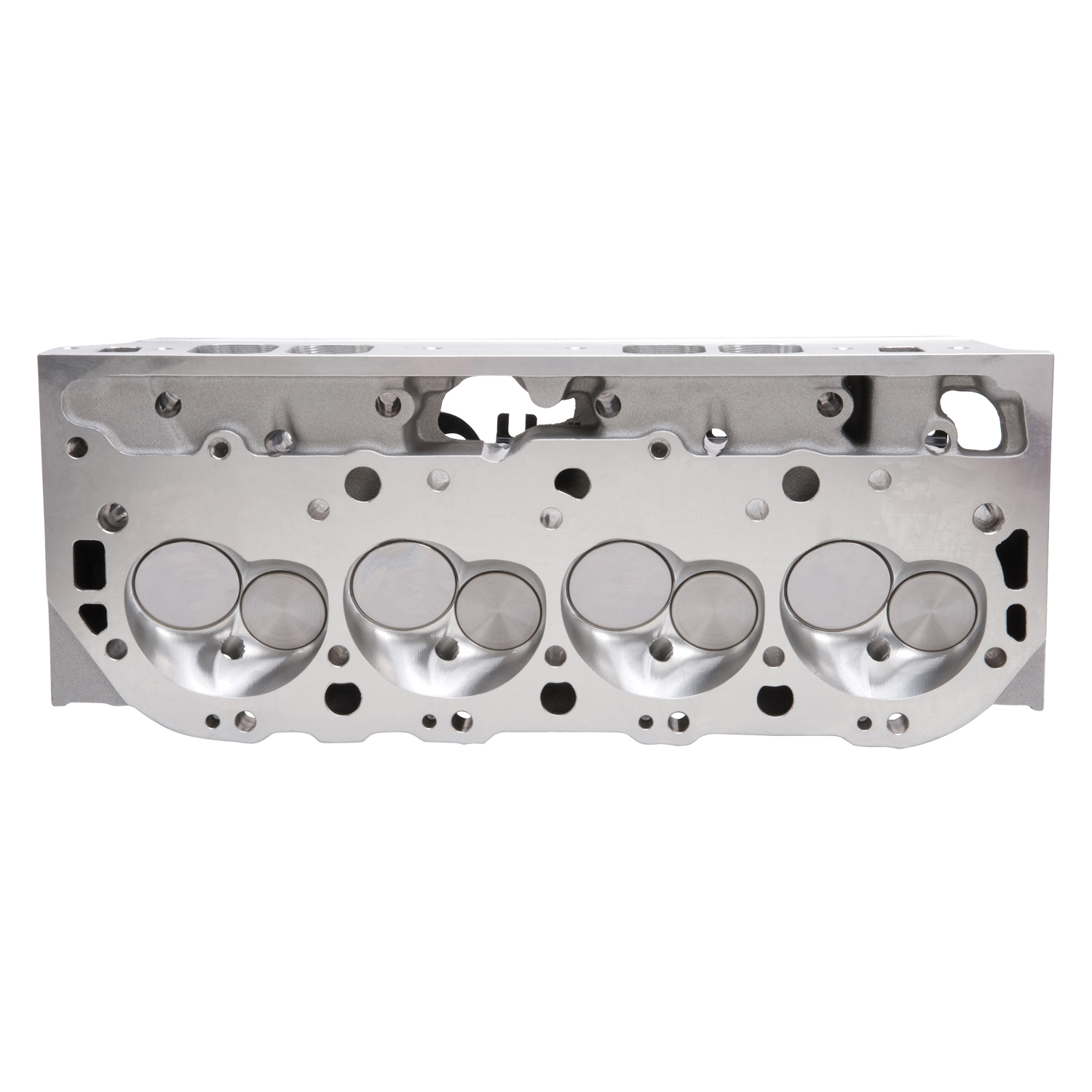

  • CNC-machined combustion chambers and ports for consistent out-of-the-box performance
  • Exhaust ports raised 0.750 inches to optimize exhaust flow and increase power output
  • Complete assembly includes Manley dual-spring valve springs and titanium retainers rated for up to 0.880-inch lift
  • Heavy-duty casting with reinforced deck and spring pocket areas for extreme applications
  • 24-degree valve angle design for improved combustion efficiency
  • Compatible with off-the-shelf large oval-port intake manifolds from Edelbrock

This cylinder head is designed for race and high-performance street applications where maximum airflow and durability are essential. The precision CNC machining ensures consistent port geometry and optimal flow characteristics right out of the box.

Products specifications

CNC Ported

Yes

Quantity

Sold individually

Intake Valve Diameter

2.30

Camshaft Type

Mechanical Roller

Valve Stem Diameter

0.3438

Intake Runner Volume

377

Retainer Included

Yes

Construction Type

Complete

Rocker Stud Diameter

0.4375

Push Rod Diameter

(Suggested) 0.375

Grade Type

Performance

RGL

WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.

Exhaust Runner Volume

128

Deck Thickness

0.5625

EGR Port

Yes

Exhaust Port Location

+0.500

Guide Material

Manganese Bronze

Combustion Chamber Volume

119

Valve Springs Included

Yes

Seat Angle

Exhaust 45 deg/Intake 45

Valve Included

Yes

Valve Spring Diameter

1.635

Exhaust Valve Diameter

1.90

Seat Material

Ductile Iron

Family

Edelbrock/Musi

Valve Angle

24

Guide Plate Material

Hardened Steel

Material

Aluminum

Guide Plates Included

Yes

Flange Type

Rectangle Intake

Valve Spring Maximum Lift

0.880

Series

Edelbrock/Musi

Horsepower

600-900

Rocker Arm Stud Diameter

0.4375
