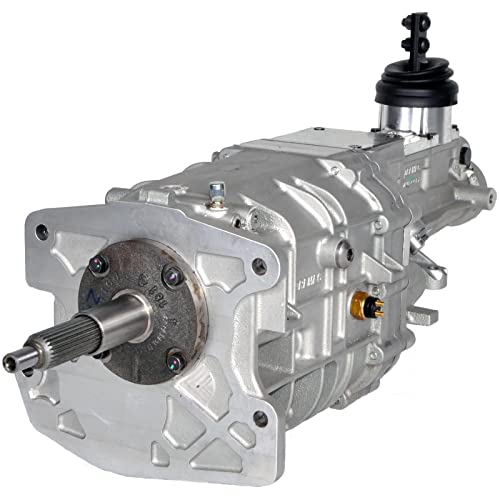

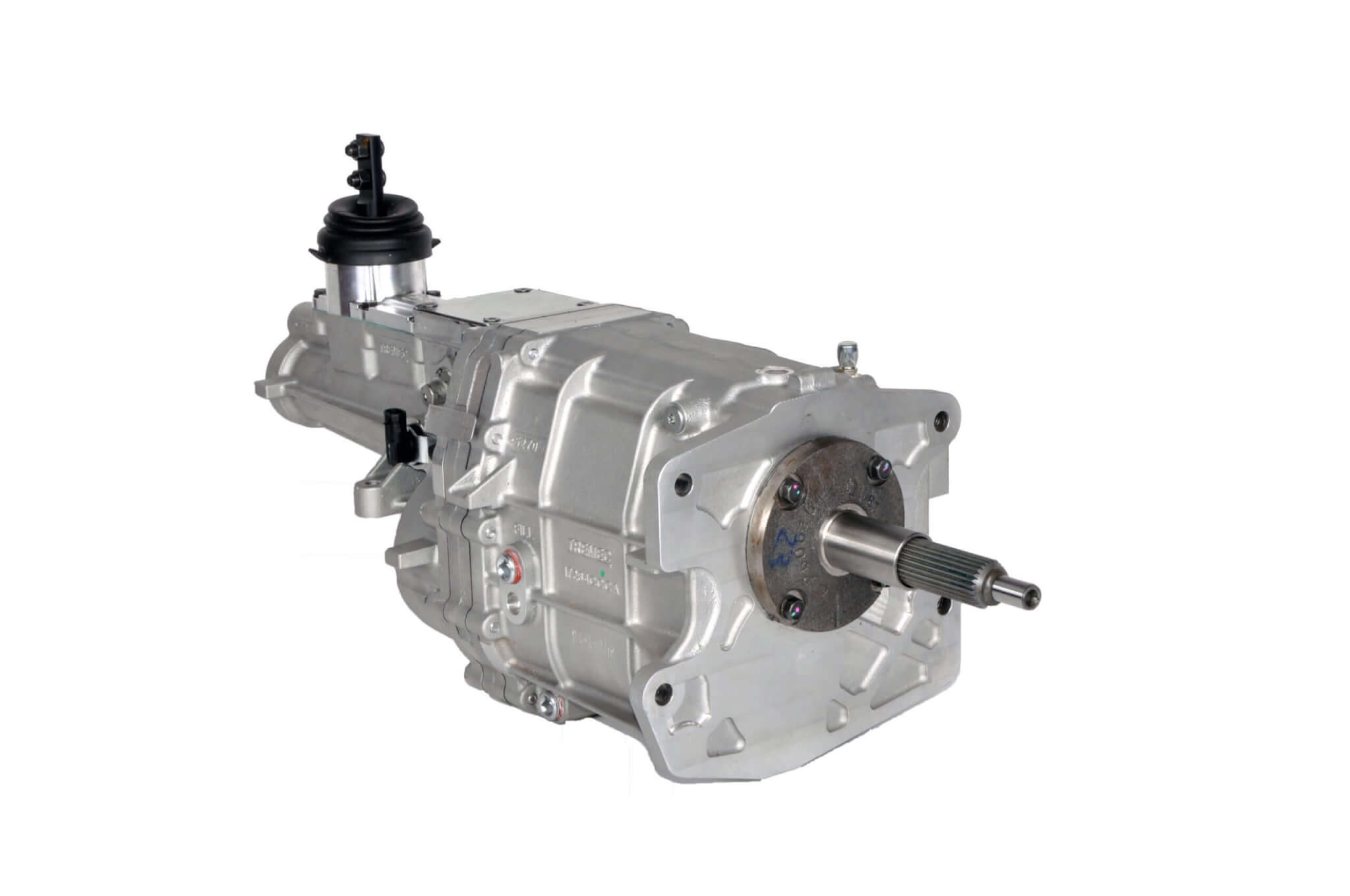

Tremec TCET18086 TKX 5-Speed Manual Transmission Ford 10-Spline

The Tremec TKX 5-Speed Manual Transmission is an all-new rear-wheel-drive transmission designed specifically for the aftermarket. Engineered to fit classic muscle cars and custom builds, this Ford-pattern transmission features a 10-spline input shaft and 31-spline output shaft for maximum strength and durability.

Key Features:

• 600 lb-ft torque capacity with 8,000 RPM capability and shifts up to 7,500 RPM
• Wide-ratio gear set: 3.27:1 first gear, 1.98, 1.34, 1.00, 0.72 overdrive fifth gear
• Compact end-loaded design fits most transmission tunnels without floor modifications
• Three-piece aluminum housing provides exceptional structural stiffness
• Multi-cone synchronizers with hybrid sintered bronze and carbon rings for superior shift quality
• All gears and shafts manufactured from ASTM 4615 special grade steel
• Caged needle bearings in all gear positions reduce end play and enhance durability
• Three shifter positions with optional mid-shift conversion available
• Gaskets at all flanges simplify installation and eliminate fluid leaks
• Both mechanical and electronic speedometer outputs included
• Integrated reverse light switch and neutral safety switch
• Ford 4-speed bolt pattern and integrated transmission mount pattern

The TKX transmission delivers smooth, precise shifts at high RPM while minimizing noise, vibration, and harshness through optimized gear layout. Weighing approximately 99 pounds dry and requiring only 2.7 quarts of fluid, this transmission is the perfect upgrade for restoring classic Fords or building high-performance custom applications.
