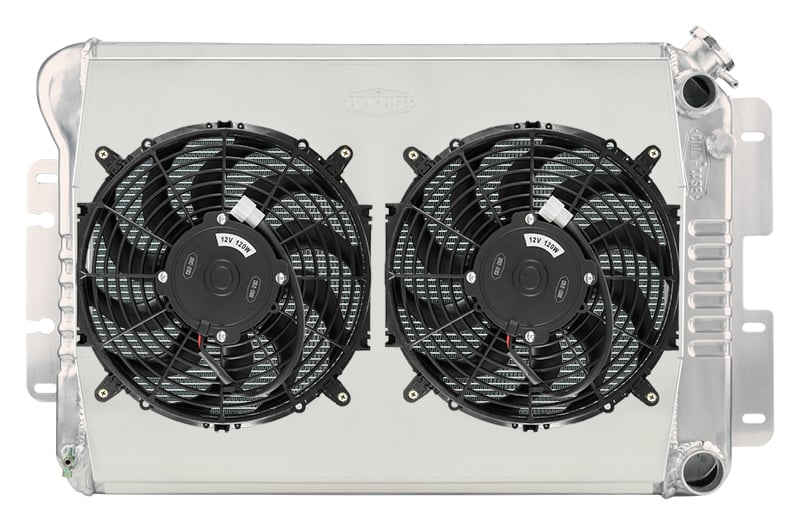

Cold Case Radiators CHC547ASK Aluminum Radiator & Dual 12 in. Fan Kit

The Cold Case Radiators CHC547ASK is an aluminum performance radiator and cooling fan kit for LS-swapped applications with a manual transmission. It combines a polished, two-row crossflow radiator with an aluminum fan shroud and dual 12-inch electric fans, so it works as a complete radiator and fan cooling package.

Key Features:

• Two-row core built with 1.25 inch tubes
• All-aluminum construction, fully TIG welded
• Polished OE-style tanks that keep a factory appearance once painted
• Corrugated fins, 16 per inch, for more surface area and heat transfer
• Dual flow design, pressure tested
• Passenger side inlet and passenger side outlet
• Dual 12 inch fans with aluminum fan shroud

Radiator Specifications:

• Core height: 16.85 in.; core width: 23 in.
• Overall height: 19 in.; overall width: 30 in.; overall thickness: 6.25 in.
• Upper hose diameter: 1.22 in.; lower hose diameter: 1.35 in.

This radiator is designed to be used with an external transmission cooler.
