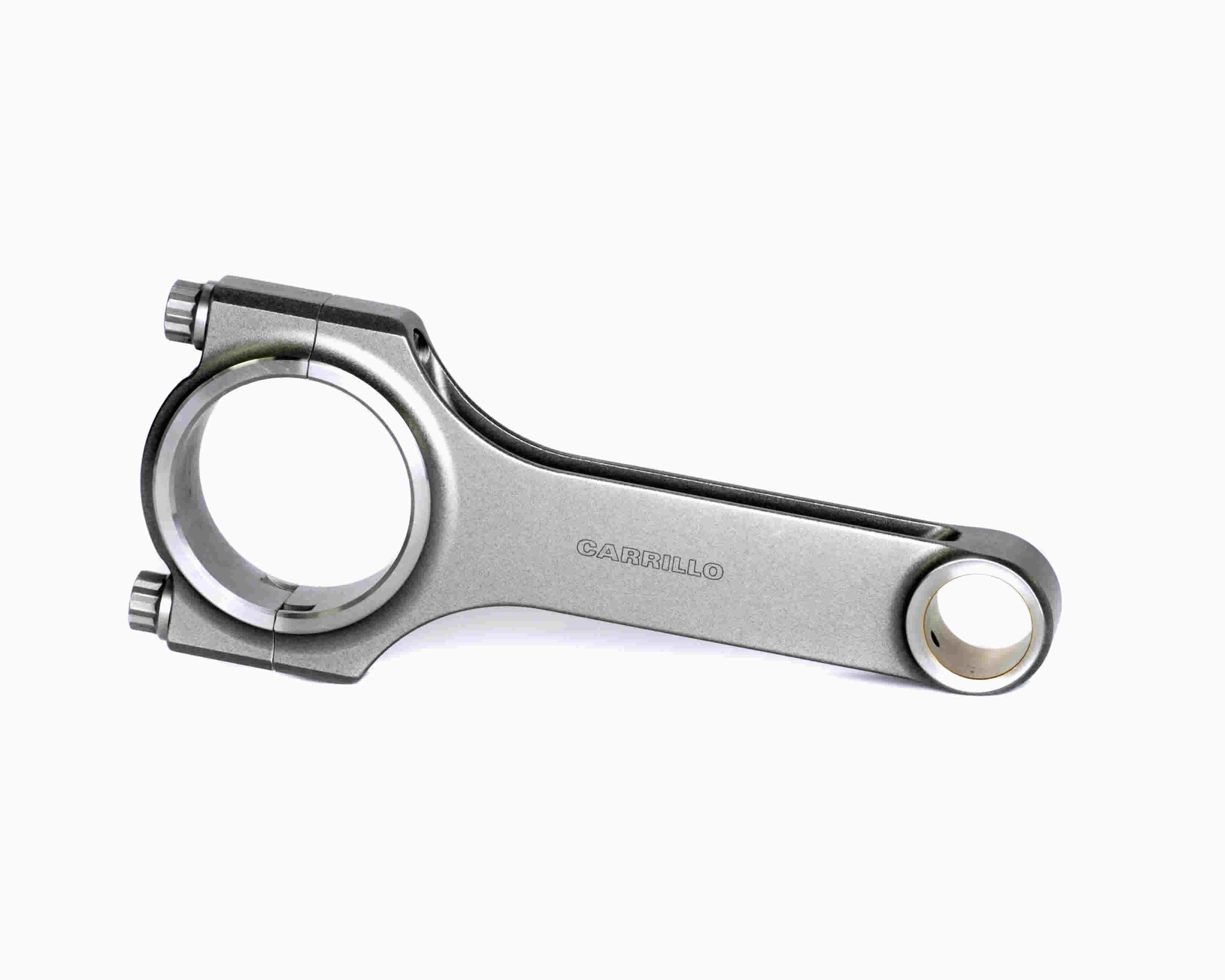

Carrillo SCR6099-4 Pro-H Beam Connecting Rod Set VW 2.0 TFSI 5.670" WMC Bolt

Manufactured in the USA from CP-Carrillo's proprietary Carrilloy (4330M) steel alloy — a chrome, nickel, moly, vanadium blend vacuum arc re-melted to exacting standards — these rods deliver the strength and reliability demanded by high-horsepower and forced-induction applications.

Key Specifications:

• Rod Length: 5.670 inches center-to-center
• Wrist Pin: 20mm, bushed, full-floating design
• Rod Bolt: 3/8" WMC (Wedge-style Multi-Clamp) fastener
• Advertised Weight: 516g per rod
• Configuration: Pro-H straight H-beam

Key Features:

• Machined from oversized proprietary steel forgings to ensure proper grain flow and eliminate surface inclusions
• Each rod is magnafluxed twice during production to identify any surface flaws
• Rockwell hardness tested to validate heat treatment integrity on every individual rod
• Final controlled shot peen operation relieves tensile stress and improves fatigue life
• Each rod is laser-etched with a job number for full traceability
• All critical CNC machining steps use probing to validate dimensional accuracy

The Pro-H straight H-beam profile is CP-Carrillo's stoutest connecting rod configuration, purpose-built to withstand the extreme cyclic loads of turbocharged and high-revving engines.
