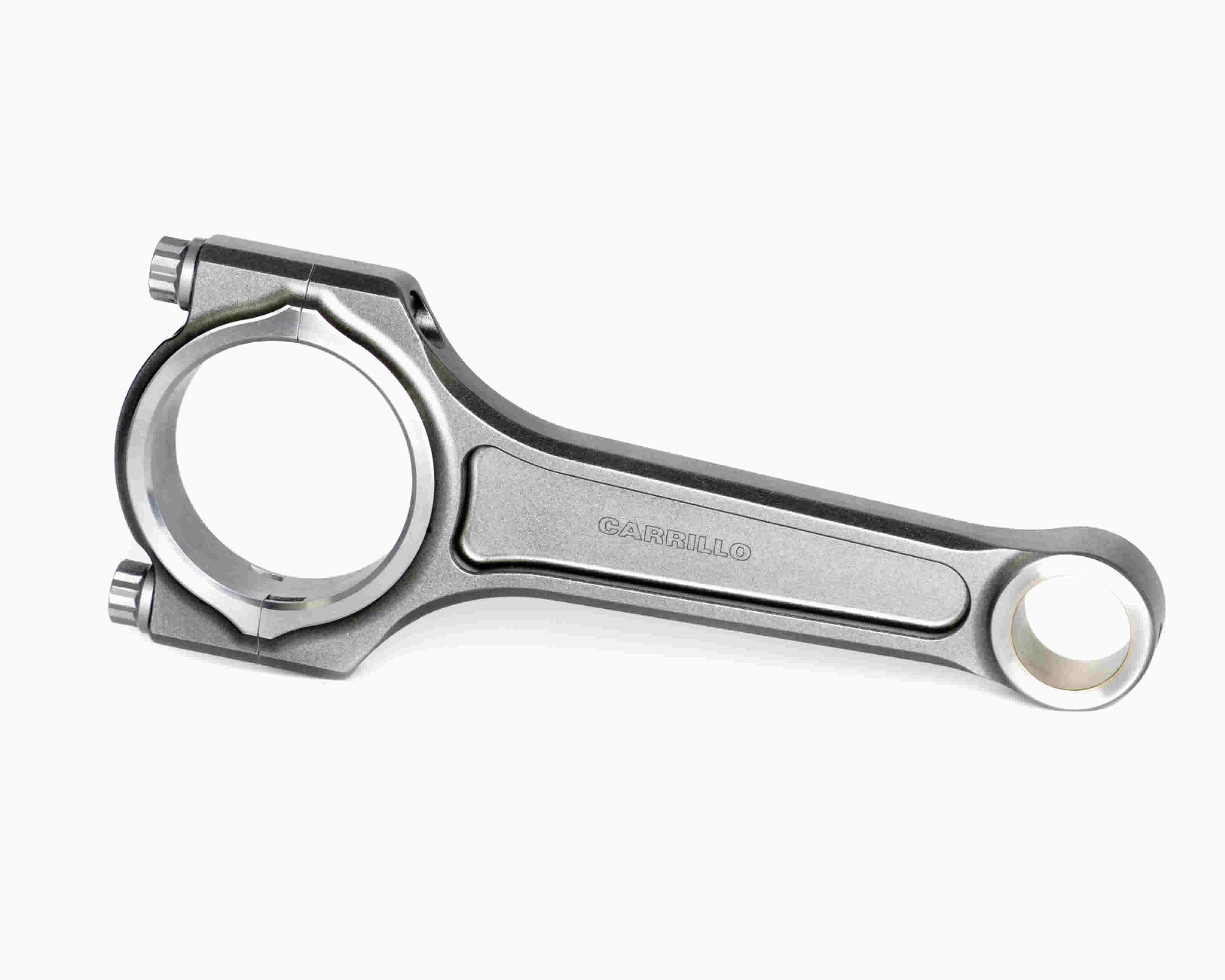

Carrillo SCR5356-4 Pro-SA Connecting Rods GM Ecotec 2.0 Turbo LNF 5.709in 3/8 WMC Bolt

Built to handle the extreme demands of high-horsepower and high-RPM forced induction applications, these rods are a direct upgrade over factory connecting rods for performance builds.

Each rod is manufactured in the USA from Carrillo's proprietary Carrilloy steel — a chrome, nickel, molybdenum, and vanadium alloy that meets all VAR (vacuum arc re-melt) ASTM standards. Oversized forgings ensure proper grain flow and the elimination of surface inclusions, resulting in exceptional strength and fatigue resistance.

Key Specifications:

• Rod beam style: Pro-SA (taper blade)
• Rod length: 5.709 inches (145.00mm)
• Wrist pin diameter: 23mm, bushed, full-floating
• Big end bore: 2.0522 in / 52.125mm
• Big end width: 0.945 in / 24.00mm
• Rod bolt: 3/8 WMC
• Advertised weight: 553g per rod

Quality Control:

• Each rod is magnafluxed twice during production to identify surface flaws
• Rockwell hardness tested to validate heat treatment
• Final controlled shot peen operation applied to relieve tensile stress and improve fatigue life
• Job number laser-etched on each rod for full traceability

CP-Carrillo's Pro-SA rods are trusted by professional engine builders and racers worldwide, offering a proven combination of lightweight design, tight tolerances, and precision weight matching right out of the box.
