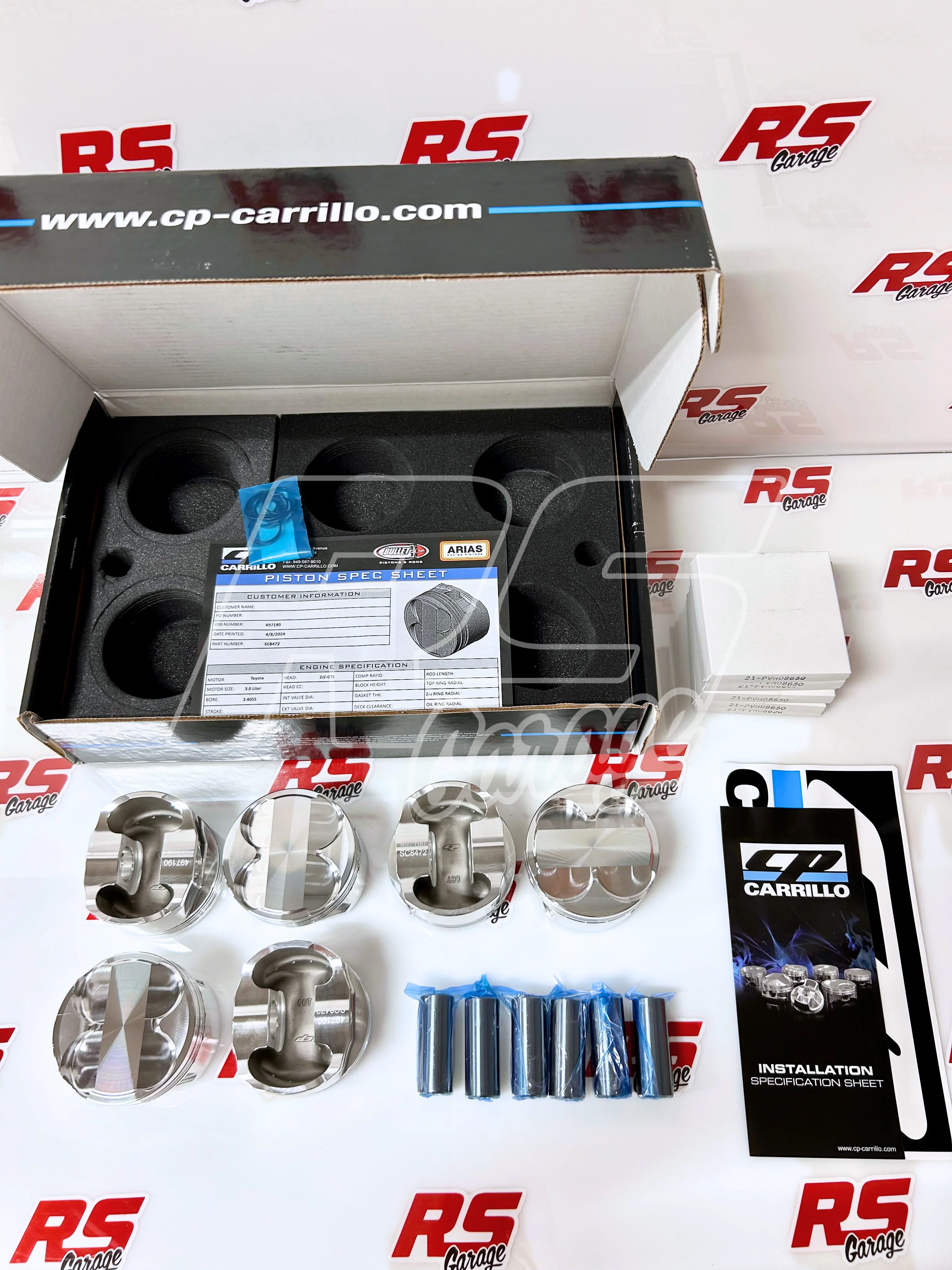

Carrillo SC8472-6 Forged Piston and Ring Kit Toyota 2JZGTE 86.5mm 6-Cylinder

The Carrillo SC8472-6 is a complete forged piston and ring kit designed specifically for Toyota 2JZGTE turbocharged inline-6 engines. This 6-cylinder set features CP-Carrillo's renowned forged aluminum construction, engineered to withstand the extreme pressures and temperatures of high-performance and forced induction applications.

Key Specifications:

• Bore size: 86.5mm (3.405 inches) - +0.5mm oversize
• Compression height: 1.338 inches (33.99mm)
• Dome height: 0.050 inches with +4.50cc volume
• Rod length compatibility: 142.000mm
• Wrist pin diameter: 0.866 inches (22mm)
• Piston ring pack: 1.20mm x 1.20mm x 2.00mm
• Piston style: Domed with four valve reliefs

Features:

• Forged aluminum construction for maximum strength and durability
• Compatible with oversized valves and high-lift camshafts
• Deep valve reliefs accommodate aggressive cam profiles
• Press-fit or floating wrist pin design
• Complete kit includes pistons, rings, wrist pins, and retainers
• Designed for 3.0L (3032cc) displacement at 86mm stroke

CP-Carrillo pistons are precision-engineered for maximum power output and reliability in demanding applications. Each piston is manufactured to strict tolerances ensuring proper fitment and optimal performance in high-boost turbocharged builds.
