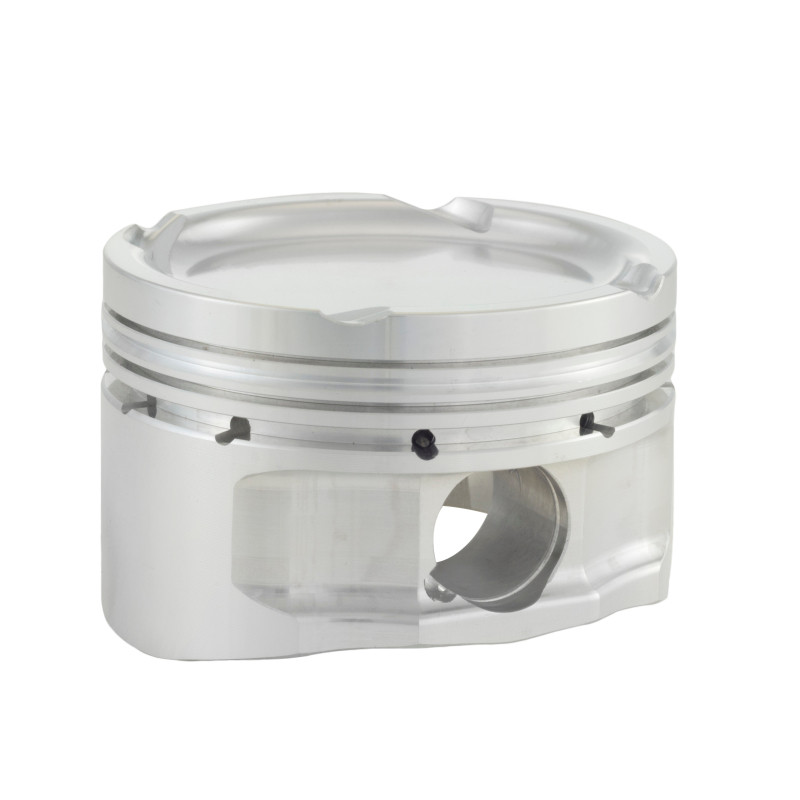

Carrillo SC7504-4 Forged Piston and Ring Set 88mm Bore 9.0:1 CR

The CP-Carrillo SC7504-4 is a high-performance forged piston and ring set engineered for Dodge Neon SRT-4 2.4L turbocharged applications. This complete 4-piston kit features precision-machined 2618 forged aluminum construction designed to withstand the extreme demands of forced induction, nitrous oxide, and high-performance builds.

Specifications:

• Bore Size: 3.465 inches (88mm)
• Compression Ratio: 9.0:1
• Stroke: 101mm (stock)
• Rod Length: 151mm
• Compression Height: 1.400 inches
• Piston Weight: 367 grams (advertised)
• Dish Volume: -13.4cc
• Ring Sizes: 1.0mm / 1.2mm / 2.8mm
• Wrist Pin Diameter: 22mm
• Wrist Pin Style: Press-fit or floating

Key Features:

• High-strength 2618 forged aluminum construction
• Deep valve reliefs for oversized valves and high-lift camshafts
• Optimized skirt cam and barrel design for reduced friction
• Precision CNC-machined and balanced to +/-1 gram
• Accumulator grooves for improved oil control
• Double pin oilers and pin lock grooves
• Complete with high-performance rings, wrist pins, and pin fittings
• Compatible with turbo, supercharger, and nitrous applications

CP-Carrillo pistons are developed through extensive research and testing with leading motorsports teams, ensuring maximum power output and reliability. Each piston set is manufactured in Irvine, California with rigorous quality control standards. Set includes 4 pistons with rings.
