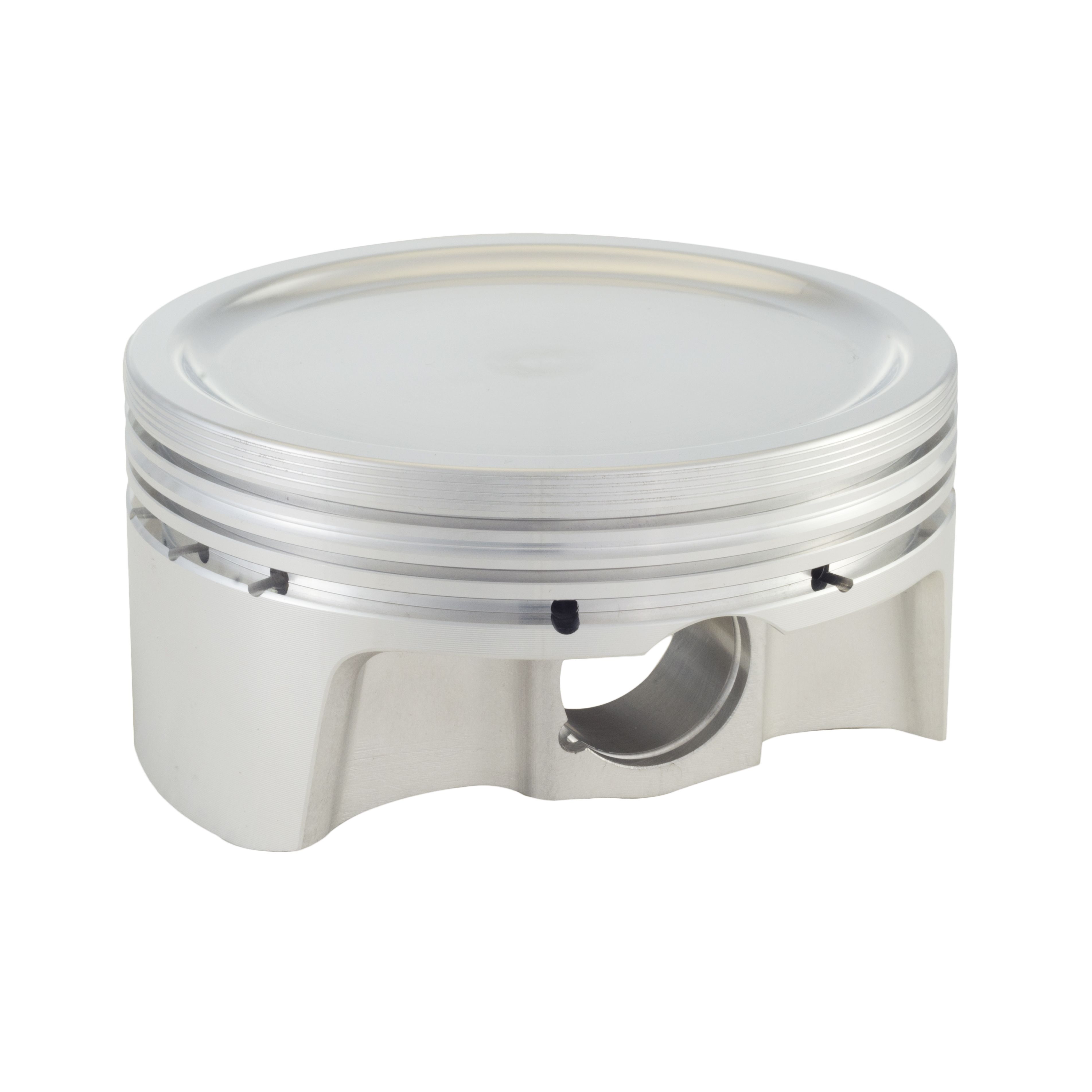

Carrillo SC7490-1 CP Forged Piston with Rings 87mm Bore 9.0:1 CR Single

Manufacturer

Part Number

SC7490-1
Sale Price

$245.77

Estimated ship date Friday, November 27

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The CP-Carrillo SC7490-1 is a single forged performance piston with matched piston rings, engineered for high-performance engine builds requiring precision tolerances and superior strength. Designed as part of CP-Carrillo's renowned shelf-stock piston lineup, this unit delivers race-proven durability in a ready-to-install forged aluminum package.

Key Specifications:

  • Bore: 3.425 in. (87.00mm)
  • Stroke: 75.00mm
  • Rod Length: 149.5mm
  • Compression Height: 1.201 in.
  • Piston Head Volume: -9.10cc (dish)
  • Piston Style: Dish, no valve reliefs
  • Piston Material: Forged aluminum (2618 alloy)
  • Pin Diameter: 0.826 in. (21mm)
  • Wrist Pin Style: Press-fit or floating
  • Ring Thickness: 1.00mm x 1.20mm x 2.80mm
  • Advertised Weight: 327 grams
  • Compression Ratio: 9.0:1

What's Included:

  • 1 forged piston
  • Matched piston ring set
  • Wrist pin
  • Wrist pin retainers

Features:

  • Forged from high-strength 2618 aluminum alloy for maximum durability under high-stress conditions
  • Fully CNC-machined and balanced to +/- 1 gram for precise rotating assembly balance
  • Custom skirt cam and barrel design for optimized oil control and reduced friction
  • Accumulator grooves for improved ring seal and blow-by reduction
  • Double pin oilers with force-fed oil ring for enhanced lubrication
  • Pick-lock grooves for easy circlip removal during assembly
  • Pin fitting included for proper wrist pin installation
  • Compatible with forced induction and power adder applications

CP-Carrillo pistons are manufactured in the USA using sophisticated computer modeling and 5-axis CNC machining, ensuring each piston meets the exacting tolerances demanded by performance engine builders. The SC7490-1 single-unit offering allows builders to replace or balance individual cylinders without purchasing a full set.
