CP-Carrillo SC7482-4 Forged Piston & Ring Kit Hyundai Beta 2 2.0L 82mm STD 9.0:1

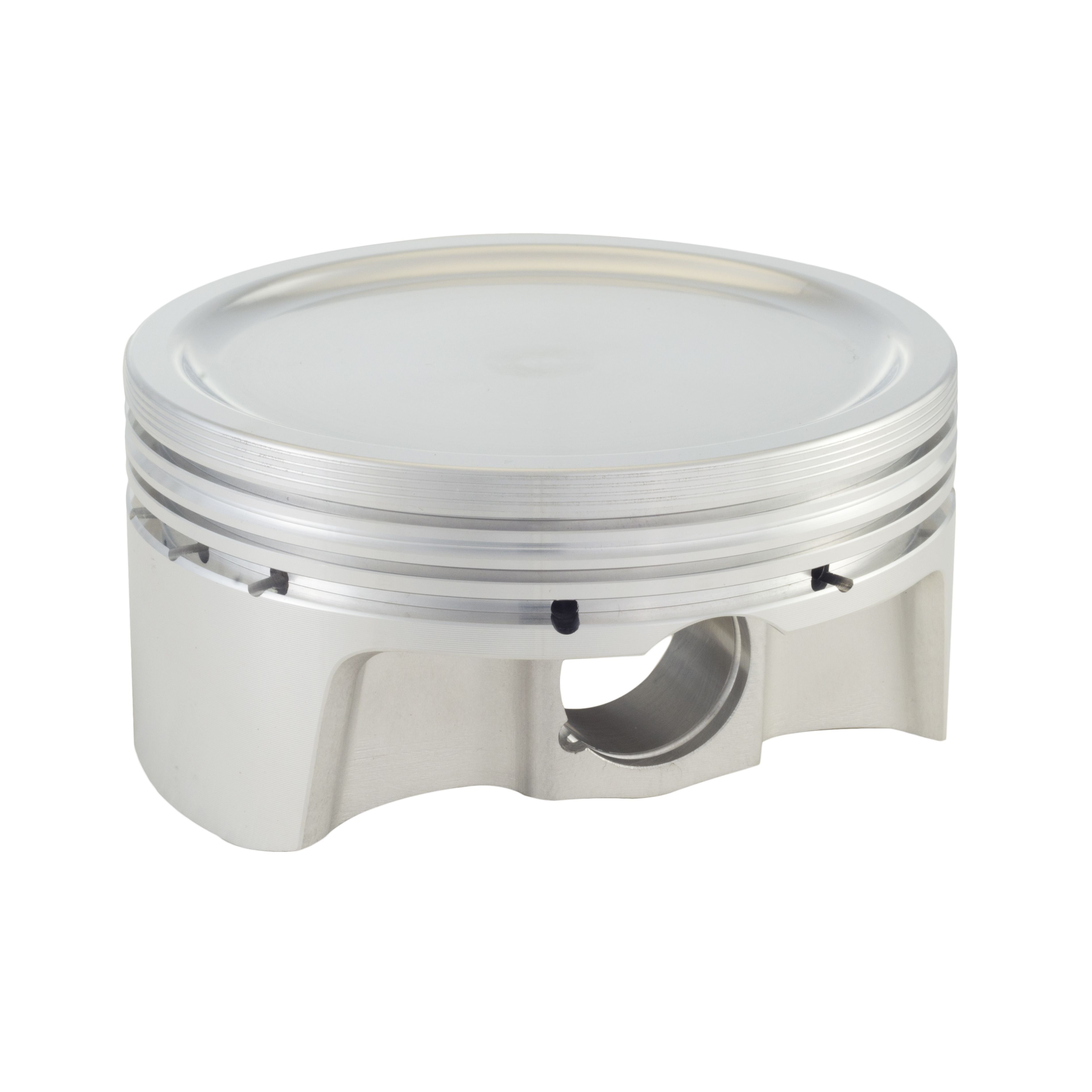

Engineered for the Hyundai Beta 2 2.0L (2002–2008), this kit features an 82mm (3.228") standard bore, 93.5mm stroke, 146.1mm rod length, and a 1.209" compression height with a -9.4cc dish piston design. The pistons feature a dish profile with two valve reliefs, a press-fit or floating wrist pin configuration, and a 0.787" pin diameter.

Key Features:

• Forged aluminum construction — CP Pistons uses proprietary tooling, dedicated cutters, and unique fixtures with state-of-the-art equipment to produce superior pistons.
• Compression ratio: 9.0:1 at standard bore (82mm / 3.228")
• Piston rings included — ring pack measures 1.00mm x 1.20mm x 2.80mm.
• Wrist pins and retainers included at no additional cost
• Features accumulator grooves, dual forced pin oilers, pick lock grooves, and fully CNC machined construction — made in the USA.
• Each piston is balanced to within ±1 gram for optimal rotating assembly balance.
• Replacement parts: Pin 787-2250-16CP1C, Rings CPN-3228, Locks 787 050 SWL

CP-Carrillo's climate-controlled inspection department uses computerized electronic equipment specifically designed for precision quality control, and each piston is engineered using sophisticated computer modeling for optimum designs, with 5-axis machining capability enabling precise manufacturing for any application.

The SC7482-4 kit includes four complete pistons with rings, wrist pins, and retainers — everything needed for a full engine rebuild or performance build on the Hyundai Beta 2 2.0L platform.
