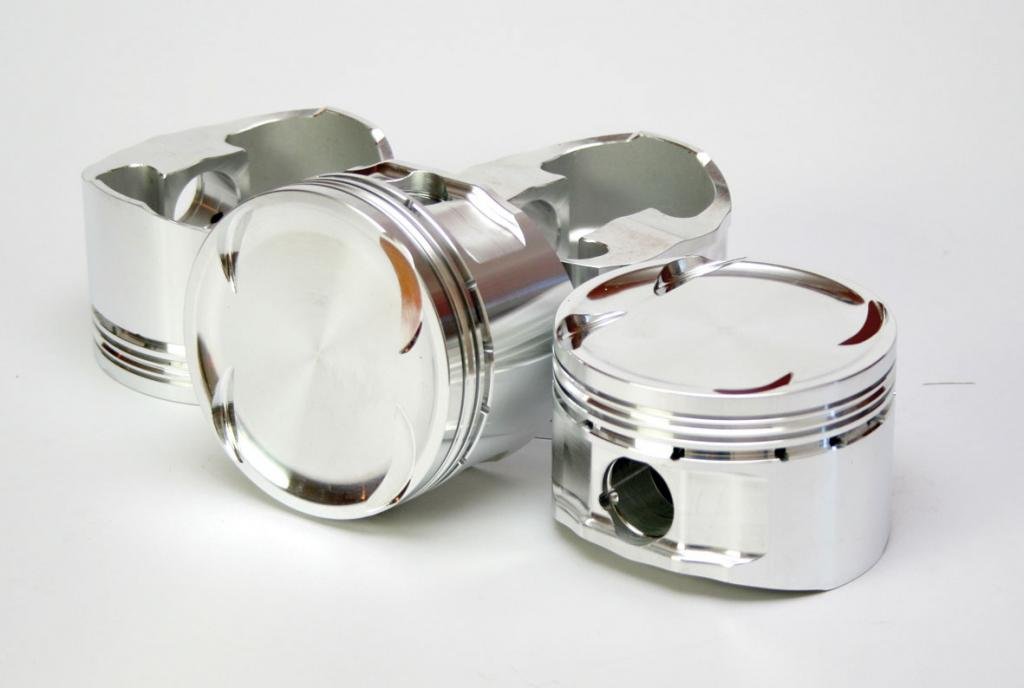

Carrillo SC7453-4 Forged Piston and Ring Kit Toyota 3SGTE 87mm

The Carrillo SC7453-4 is a high-performance forged piston and ring kit engineered specifically for Toyota 3SGTE and 3S-GE turbocharged engines. Manufactured by CP-Carrillo in their Irvine, California facility, this complete 4-cylinder piston set delivers the strength and precision required for high-boost turbo applications and performance engine builds.

Key Specifications:

• Bore: 87.0mm (3.425 inches)
• Compression Height: 1.375 inches
• Stroke: 86.0mm
• Rod Length: 138.0mm
• Compression Ratio: 9.0:1
• Piston Head Volume: +10.30cc dish
• Wrist Pin Diameter: 0.866 inches
• Material: 2618 forged aluminum alloy

Features and Benefits:

• Forged from high-strength 2618 aluminum for maximum durability under extreme boost and temperature conditions
• Dish piston design with four valve reliefs optimized for turbocharged performance
• Complete kit includes pistons, piston rings, wrist pins, and retaining locks—ready to install
• Press-fit or floating wrist pin compatibility for flexible build options
• Fully machined and precision-balanced to +/- 1 gram for smooth, vibration-free operation
• Engineered using sophisticated computer modeling and 5-axis CNC machining
• Made in USA with ISO 9001 certified manufacturing processes

CP-Carrillo pistons are renowned for excellent ring seal, reduced blow-by, and increased horsepower and torque. This kit is ideal for Toyota Celica All-Trac, MR2 Turbo, and other 3SGTE-powered vehicles running nitrous, high boost, or naturally aspirated performance builds. Each piston undergoes multi-level inspection to ensure it meets the highest quality standards demanded by racers and enthusiasts worldwide.
