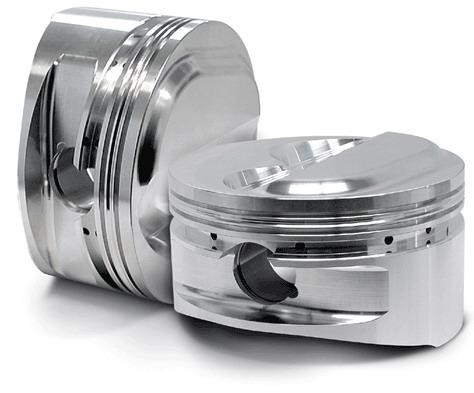

Carrillo SC7335-6 Forged Piston and Ring Set 87.5mm Bore Nissan VG30DETT

The Carrillo SC7335-6 is a high-performance forged piston and ring kit designed for Nissan VG30DETT engines. Manufactured by CP-Carrillo from high-strength 2618-T61 aluminum alloy forgings, these pistons offer exceptional durability under extreme heat and high cylinder pressures, making them ideal for turbocharged, supercharged, and nitrous applications.

Key Specifications:

• Bore: 87.5mm (3.445 inches) - +0.5mm oversize
• Compression Ratio: 8.5:1
• Compression Height: 1.260 inches
• Piston Head Volume: +8.10cc
• Wrist Pin Diameter: 0.866 inches
• Piston Style: Dish design with four valve reliefs
• Material: Forged aluminum alloy

Features and Benefits:

• Deep valve reliefs accommodate high-lift camshafts and larger valve sizes
• Custom skirt cam and barrel design for optimal strength-to-weight ratio
• Accumulator grooves for improved oil control
• Fully CNC machined and balanced to +/- 1 gram
• Double pin oilers force-fed from oil ring groove for superior lubrication
• Press-fit or floating wrist pin capability
• Pick lock grooves for easy lock removal

Ring Pack Included:

• Top Ring: 1.5mm steel compression ring
• Second Ring: 1.5mm cast iron compression ring
• Oil Ring: 2.8mm oil control ring

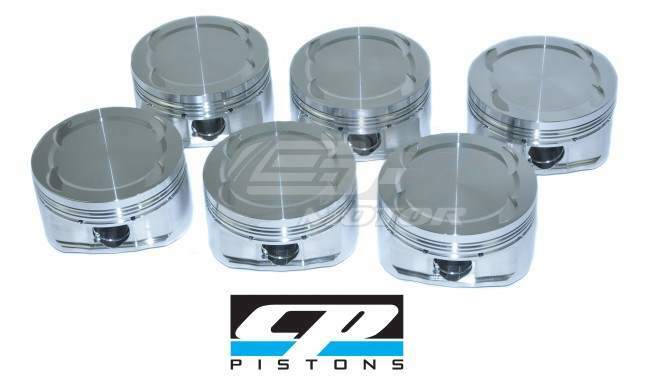

• Six forged pistons
• Complete ring set
• Wrist pins (gudgeon pins)
• Pin lock rings

CP-Carrillo pistons are engineered using sophisticated computer modeling and manufactured with state-of-the-art 5-axis CNC machining for precision and consistency. Each piston undergoes rigorous quality inspection to ensure it meets the demanding requirements of professional engine builders and racing applications. This kit provides everything needed for a complete piston assembly in high-performance VG30DETT engine builds.
